ViewBoard OPS Celeron slot-in PC
- Intel Processor
- Ample Storage
- Faster Wi-Fi
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

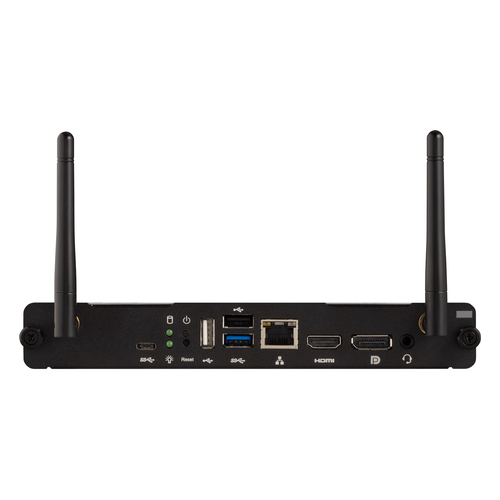

The ViewSonic® VPC2C-W33-O1 slot-in PC delivers smart whiteboard and smart meeting room functionality for ViewSonic ViewBoard® interactive displays. This slot-in PC module easily plugs into compatible displays and supports high-definition audio and video. With a powerful Celeron processor, and fast SSD, the VPC2C-W33-O1 provides the computing power needed for fast-moving educational or corporate environments. Flexible connectivity options include HDMI, VGA, USB 2.0, 3.0 and Type C ports, as well as Giga LAN RJ45 and integrated WiFi 6 connection.
POWERFUL INTEL PROCESSOR
Equipped with the latest Intel® Celeron processor, this slot-in PC provides smooth and quick performance needed for serious computing.
AMPLE STORAGE
The slot-in PC can store and play hours and hours of high-definition multimedia content thanks to its fast PCI-E NVMe SSD storage.
FASTER WIFI
The latest WiFi 6 standard delivers incredibly fast WiFi performance with internet speeds of up to several gigabits per second.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor frequency
- 3.2 GHz
- Processor family
- Intel® Celeron®
- Processor cores
- 2
- Processor cache
- 2 MB
- System bus rate
- 8 GT/s
- Processor threads
- 2
- Processor lithography
- 14 nm
- PCI Express configurations
- 1x8+2x4, 1x16, 2x8
Memory
- Internal memory
- 8 GB
- Internal memory type
- LPDDR4
Storage
- Total storage capacity
- 256 GB
- Storage media
- SSD
- SSD interface
- NVMe
- NVMe
- Yes
- SSD capacity
- 256 GB
Graphics
- On-board graphics card
- Yes
- On-board graphics card model
- Intel® UHD Graphics 630
Network
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Bluetooth
- Yes
- Bluetooth version
- 5.0
Ports & interfaces
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.0
- Ethernet LAN (RJ-45) ports
- 1
- Line-out
- Yes
- Microphone in
- Yes
- USB ports quantity
- 4
Power
- Power consumption (typical)
- 65 W
- Power supply input voltage
- 100 - 120 V
- Power supply input frequency
- 50 - 60 Hz
- DC input voltage
- 19 V
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Operating relative humidity (H-H)
- 20 - 80%
Downloads
