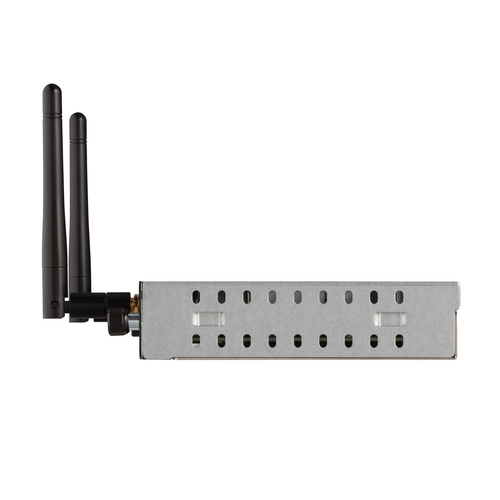

ViewBoard OPS i7 slot-in PC with TPM and Intel Unite Support
- Powerful Intel Processor
- Ample Storage
- Faster WiFi
- Intel Unite Support
- Platform Integrity
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

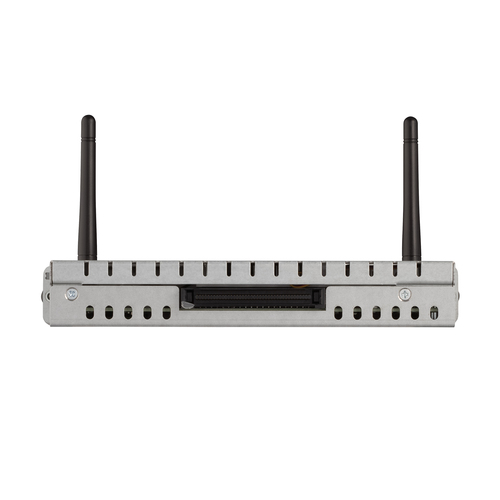

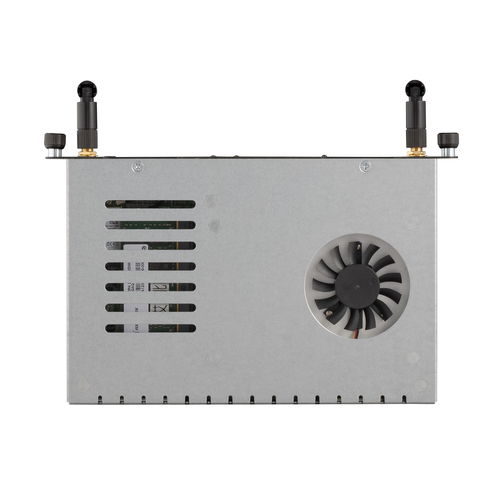

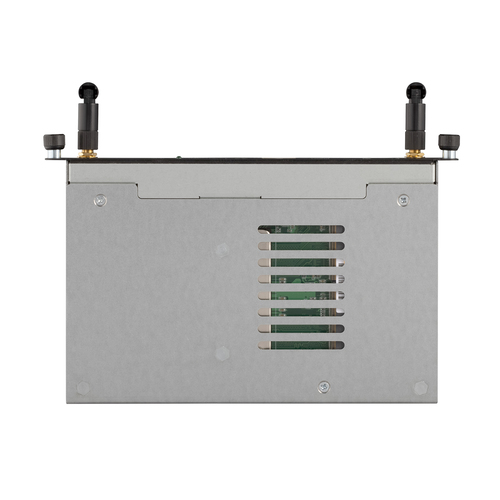

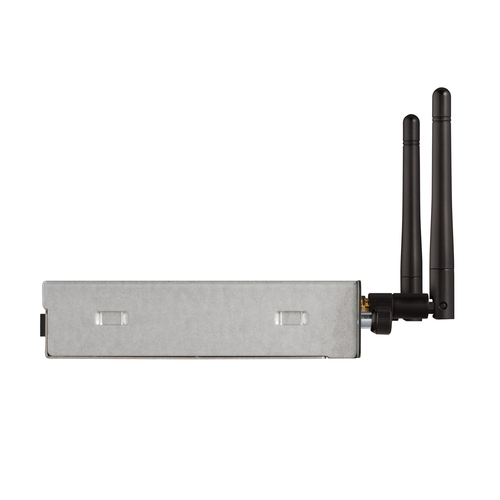

The ViewSonic® VPC27-W55-O2 slot-in PC delivers smart whiteboard and smart meeting room functionality for ViewSonic ViewBoard® interactive displays. This slot-in PC module easily plugs into compatible displays and supports high-definition audio and video. With a powerful Intel® i7 processor, and fast SSD, the VPC27-W55-O2 provides the computing power needed for fast-moving educational or corporate environments. Flexible connectivity options include HDMI, VGA, USB 2.0, 3.0 and Type-C ports, as well as Giga LAN RJ45 and integrated WiFi 6 connection.
POWERFUL INTEL PROCESSOR
Equipped with an Intel® i7 processor, this slot-in PC provides smooth and quick performance needed for serious computing.
AMPLE STORAGE
The slot-in PC can store and play hours and hours of high-definition multimedia content thanks to its fast PCI-E NVMe SSD storage.
FASTER WIFI
The latest WiFi 6 standard delivers incredibly fast WiFi performance with internet speeds of up to several gigabits per second.
INTEL UNITE SUPPORT
This device underwent extensive requirement tests to meet Intel’s future-proof solution standards. Pre-loaded with Intel® Unite™ Hub and Server software, this device allows users to securely manage every aspect of the Unified Communications (UC) experience. With Intel® Unite™, users can wirelessly and securely display media from any range of devices such as tablets, laptops, and mobile phones. For more information, please visit Intel® Unite™.
PLATFORM INTEGRITY
An integrated Trusted Platform Module (TPM) 2.0 ensures safer, more secure computing by providing hardware-based authentication and tamper detection.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor frequency
- 2 GHz
- Processor cores
- 8
- Processor boost frequency
- 4.5 GHz
- Processor cache
- 16 MB
- System bus rate
- 8 GT/s
- Processor threads
- 16
- Processor lithography
- 14 nm
Memory
- Internal memory
- 16 GB
- Internal memory type
- LPDDR4
Storage
- Total storage capacity
- 512 GB
- Storage media
- SSD
- SSD interface
- NVMe
- NVMe
- Yes
Network
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Bluetooth
- Yes
- Bluetooth version
- 5.0

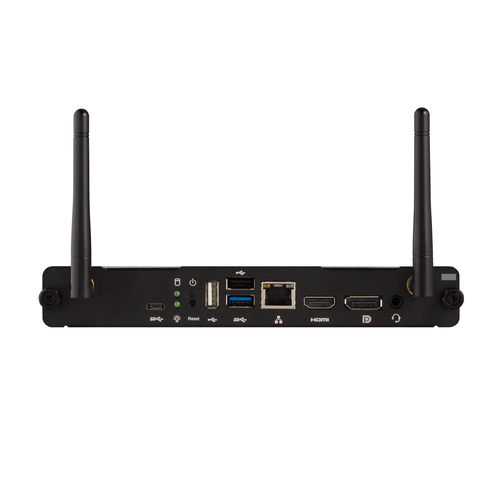

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.0
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Line-out
- Yes
- Microphone in
- Yes
Power
- Power consumption (typical)
- 65 W
- Power supply input voltage
- 100 - 120 V
- Power supply input frequency
- 50 - 60 Hz
- DC input voltage
- 19 V
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Operating relative humidity (H-H)
- 20 - 80%
Downloads
More in Digital Signage Players

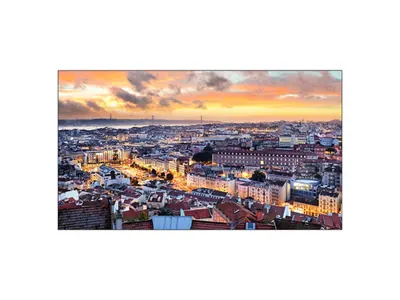

Samsung24/7, IPS Panel Video Wall with Extreme Thin Bezel (1.7 mm Bezel to BeLH55VHBEBGBXZA
Samsung24/7, IPS Panel Video Wall with Extreme Thin Bezel (3.5 mm Bezel to BeLH55VMBUBGBXGO

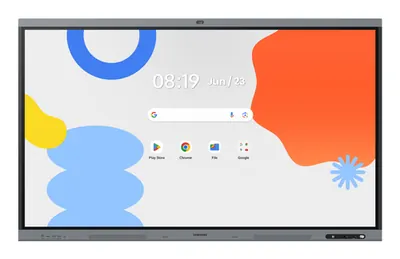

Samsung86 Android 15 OS Interative White Board with Builtin Cam, Mic, NFC, SpLH86WAFPLGCXZA

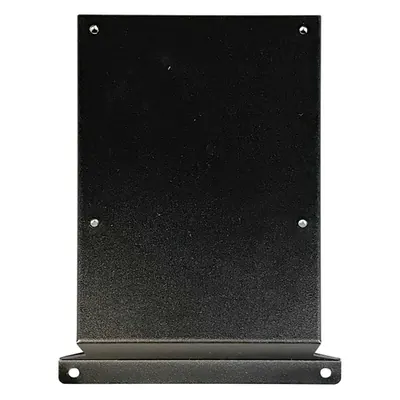

ViewSonicViewSonic ViewBoard Media Box Mounting Bracket BlackVB-ADP-001

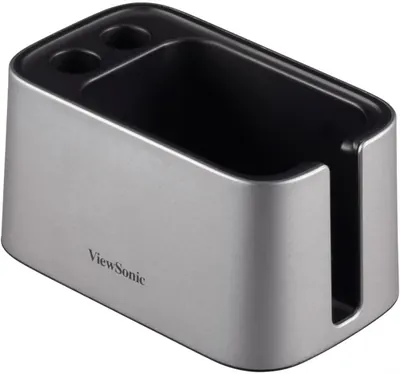

ViewSonicViewBoard Cast Dongle Storage Box, Grey/ Black.VB-BOX-001

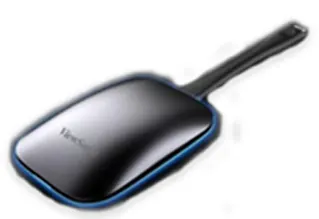

ViewSonicViewBoard Cast Dongle, USB type-C, Grey/Black.VB-WPS-001
ViewSonicViewBoard Cast Dongle, HDMI + USB type-A, BlackVB-WPS-003

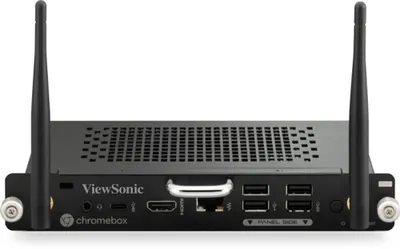

ViewSonicOPS Slotin PC,ChromeOS devices,Advanced Security from Google,Native AcVPC13-C33-G1
