3,000 Lumens WXGA LED Business/Education Projector,1280x800 WXGA resolution,11lbs net.
- Presentation Standard throw projector White
- DMD 3000 ANSI lumens
- LED 30000 h
- WXGA (1280x800) 3000000:1
- Screen size compatibility: 762 - 7620 mm (30 - 300") Number of colours: 1.07 billion colours
- Focus: Manual Zoom capability
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Featuring 1280x800 WXGA resolution and 3,000 ANSI lumens of brightness, the ViewSonic LS600W is a lamp-free LED projector ideal for business and education. No matter the environment, expect stunning images and vivid colors, as this projector boasts 125% Rec. 709 color accuracy. With 2nd generation LED technology, the LS600W eliminates the need to continuously swap out bulbs and dispose of toxic chemicals. In addition, an IP5X sealed optical engine prevents dust and moisture from entering the projector, ensuring impeccable image quality and a long maintenance-free lifespan of up to 30,000 hours.* An automatic on/off feature delivers efficiency and power savings, while comprehensive LAN control ensures easy management across meeting rooms and classrooms. Whether for business or education, the ViewSonic LS600W LED projector provides a picture-perfect presentation every time.
ADVANCED LED LIGHT SOURCE
This projector uses the latest solid-state LED technology that is both mercury-free and lamp-free, offering a greener, filter-free projector solution. The LED light source provides over 30,000 hours of usage* while consuming less than half the power of a typical LCD TV, thereby lowering your total cost of ownership.
BRIGHT IMAGES IN ANY ENVIRONMENT
Packed with 3,000 lumens and a high contrast ratio, this projector produces bright images in nearly any environment.
CONVENIENT AUTO POWER ON/OFF
This projector can be configured to automatically turn on for quick and easy startup whenever an active video input is detected. Conversely, when no signal is present, the projector will automatically power off after a user-defined amount of time.
360-DEGREE ORIENTATION
A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor of a museum exhibit or art gallery installation, or mount the projector upside-down at a 45-degree angle if need be.
Specifications
Projector
- Screen size compatibility
- 762 - 7620 mm (30 - 300")
- Projection distance
- 0.86 - 10.6 m
- Projector brightness
- 3000 ANSI lumens
- Projection technology
- DMD
- Projector native resolution
- WXGA (1280x800)
- Contrast ratio (typical)
- 3000000:1
- Number of colours
- 1.07 billion colours
- Horizontal scan range
- 15 - 102 kHz
- Vertical scan range
- 23 - 120 Hz
- Keystone correction, horizontal
- -40 - 40°
- Keystone correction, vertical
- -40 - 40°
- Matrix size
- 1.65 cm (0.65")
Light source
- Light source type
- LED
- Service life of light source
- 30000 h
Lens system

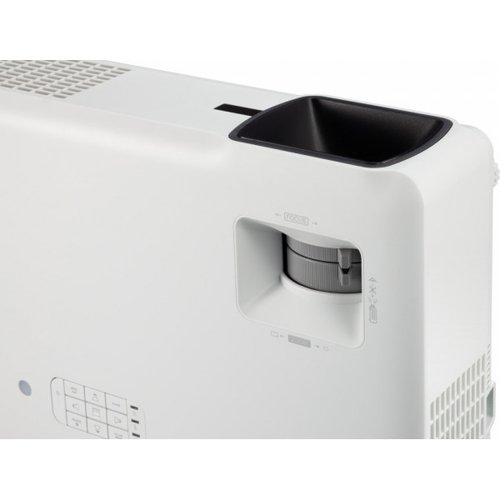

- Focus
- Manual
- Focal length range
- 19.16 - 23.02 mm
- Aperture range (F-F)
- 1.6 - 1.75
- Zoom capability
- Yes
- Zoom ratio
- 2.0:1
- Throw ratio
- 1.37-1.64
- Offset
- 79%
Video
- Analog signal format system
- NTSC, PAL, SECAM
- Supported graphics resolutions
- 640 x 480 (VGA), 1920 x 1080 (HD 1080)
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

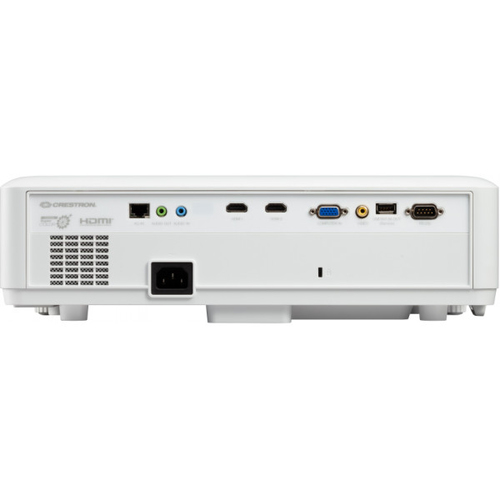

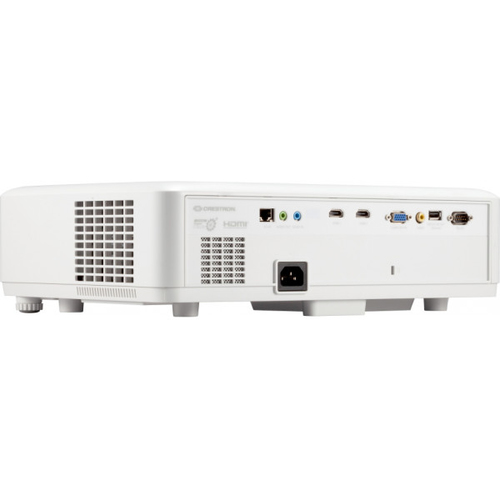

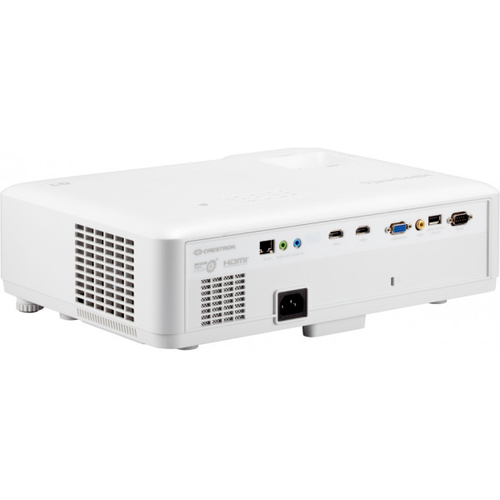

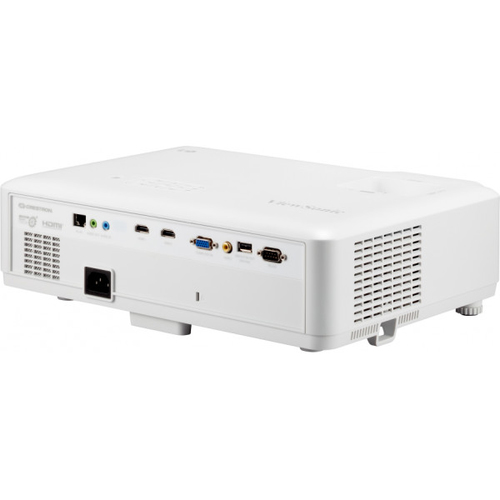

Ports & interfaces
- HDMI connector type
- Full-size
- HDMI version
- 1.4
- USB 2.0 ports quantity
- 1
- Serial interface type
- RS-232
- PC Audio in
- Yes
- PC Audio out
- Yes
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 2
- Composite video in
- 1
- Component video (YPbPr/YCbCr) in
- 1
- DVI port
- No
- AC (power) in
- Yes
Network
- Smart TV
- No
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi
- No
Storage
- Card reader integrated
- No
Features
- Interactive
- No
- Noise level (economic mode)
- 25 dB
- HDCP
- Yes
- On Screen Display (OSD)
- Yes
- On Screen Display (OSD) languages
- Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
- Number of OSD languages
- 23
- Noise level
- 31 dB
Multimedia
- Built-in speaker(s)
- Yes
- RMS rated power
- 10 W
- Number of built-in speakers
- 1
Design
- Market positioning
- Presentation
- Product type
- Standard throw projector
- Product colour
- White
- Placement
- Desktop, Ceiling
Display
- Built-in display
- No
Power
- Power source
- AC
- Power consumption (typical)
- 270 W
- Power consumption (standby)
- 0.5 W
- AC input voltage
- 100-240 V
- AC input frequency
- 50 - 60 Hz
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Weight & dimensions
- Width
- 386 mm
- Depth
- 276 mm
- Height
- 116 mm
- Weight
- 5 kg
- Package width
- 490 mm
- Package depth
- 376 mm
- Package height
- 268 mm
- Package weight
- 7 kg
Packaging content
- Remote control included
- Yes
- Cables included
- AC, VGA
- Manual
- Yes
Logistics data
- Harmonized System (HS) code
- 85286200
