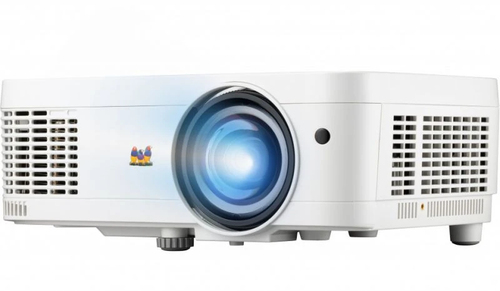

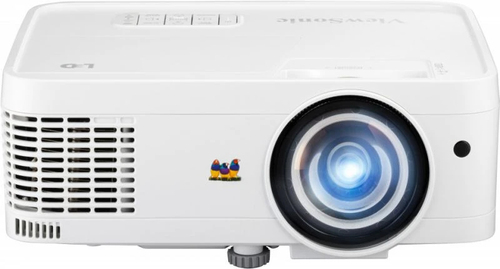

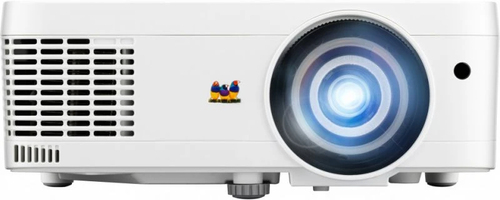

3,000 ANSI Lumens WXGA LED Business/Education Projector

Part # LS560WHUPC 7669070181278.5 lb

3rd generation LED technology for greater sustainability
Maintenance free: 30,000-hour light source life and less power consumption
3,000 ANSI Lumens offering bright images in any environment
0.49 short throw ratio for glare-free and shadow-free presentations
Ease of use: instant power on/off, H/V keystone, and LAN control

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The LS560WH is ViewSonic’s lamp-free high brightness WXGA short throw projector for business and education. Adopting industry-leading 3rd generation LED technology, the LS560WH delivers 3,000 ANSI Lumens while eliminating the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering the total cost of ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering a wider color gamut for bright and vivid images in a meeting room, classroom, or any other environment. The 0.49 short throw lens provides a 100” screen from just 1.1m away, delivering exceptional space efficiency and freeing presenters from blinding lights. The projector boasts incredible ease of use with instant power on/off, easy image correction with H/V keystone and 4 corner adjustment, and 360° tilt angle projection for flexible applications. Moreover, its comprehensive LAN control makes multiple device management a breeze and is compatible with Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic’s vController.

3rd Generation LED Technology for Greater Sustainability

With the 3rd generation LED technology, the LS560WH frees users from frequent lamp replacement and toxic mercury. Offering consistently impressive brightness for 30,000 hours, the projector saves the cost of time, manpower and money for maintenance, while providing a greener and more sustainable future.

Saving More with the Advanced LED Technology

Adopting ams OSRAM’s Ostar Projection Power LED technology, the LED projector is both energy saving and cost efficient, consuming less energy than competing lamp-based projectors.

Enhanced Brightness for Business/Education Environments

Thanks to the latest LED technology, the LS560WH achieves a major brightness breakthrough to 3,000 ANSI Lumens. With extreme-high contrast ratio of 3,000,000:1, the projector ensures bright and detailed images in dim or lit environments.

Present the Best with Vibrant Colors

Impress any audience with ViewSonic’s exclusive color technology, covering wide color gamut, elevating your presentation with a true-to-life color experience.

Big Screen Fits for Small Spaces

The LS560WH's 0.49 short throw projection gives you 100” large screen from only 1.1m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.

Effortless Image Adjustment

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

Efficient Instant Power On/Off

Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.

Versatile Application

The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or floors.

Centralized Control for Management Efficiency

The LS560WH is compatible with Crestron, AMX, PJ Link, ATEN and Extron systems and comes equipped with ViewSonic vController, an easy-to-use network management tool.

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.

USB Type A Power Supply

The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.

Non-stop 24/7 Operation

The advanced cooling design enables 24/7 operation without degradation of image quality or work performance, making the projector ideal for applications that require continuous use.

Sealed Optical Engine with IP5X

Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.

Specifications

Projector

Smart projector: No
Screen size compatibility: 1524 - 7620 mm (60 - 300")
Projection distance: 0.63 - 1.58 m
Projector brightness: 3000 ANSI lumens
Projection technology: LED
Projector native resolution: WXGA (1200x800)
Contrast ratio (typical): 3000000:1
Native aspect ratio: 3:2
Number of colours: 1.07 billion colours
Horizontal scan range: 15 - 102 kHz
Vertical scan range: 23 - 120 Hz
Keystone correction, horizontal: -40 - 40°
Keystone correction, vertical: -40 - 40°

Light source

Light source type: LED
Service life of light source: 30000 h

Lens system

Focus: Manual
Zoom capability: Yes
Zoom type: Manual
Zoom ratio: 0.8 - 2.0:1
Throw ratio: 0.49
Offset: 110%

Video

Analog signal format system: Not supported
Full HD: No
3D: No
Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080)
Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

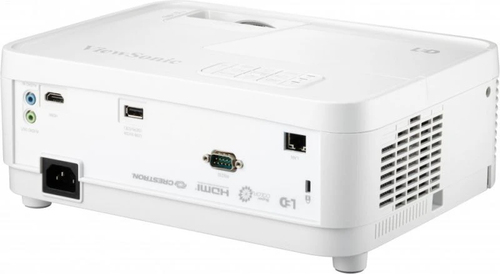

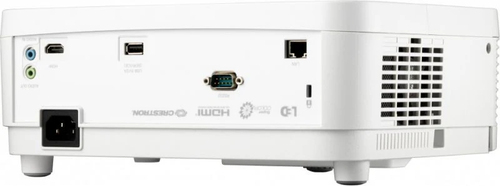

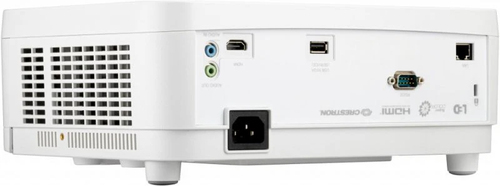

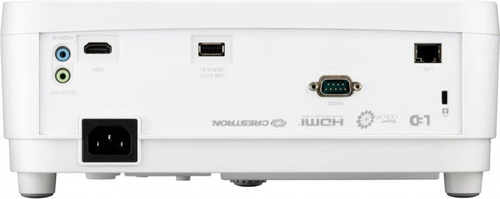

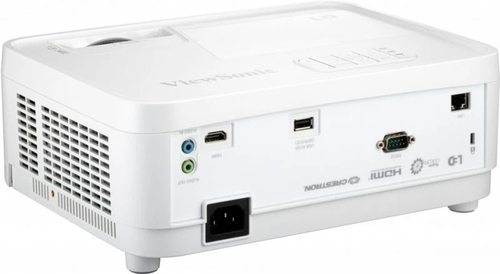

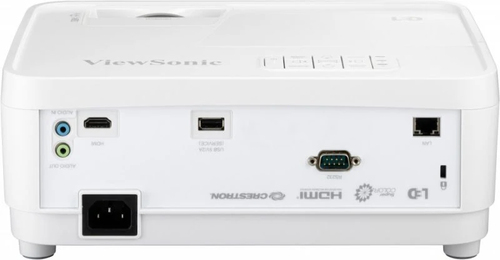

Ports & interfaces

HDMI connector type: Full-size
HDMI version: 1.4
Service port type: USB Type-A
USB 2.0 ports quantity: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
Serial interface type: RS-232
HDMI ports quantity: 1
DVI port: No

Network

Smart TV: No
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1

Storage

Card reader integrated: No

Features

Interactive: No
Noise level (economic mode): 28 dB
HDCP: Yes
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Number of OSD languages: 24
Noise level: 34 dB
