ViewSonicData Projectors

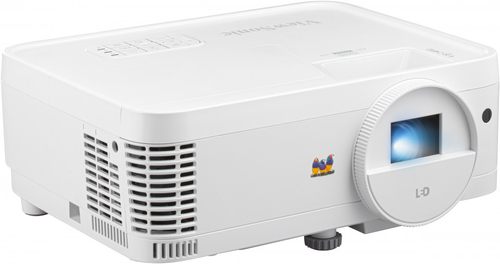

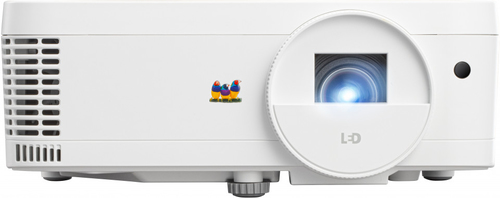

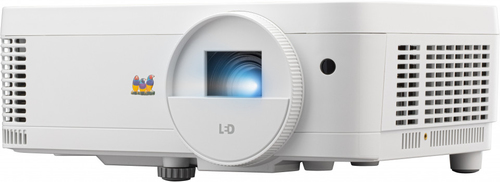

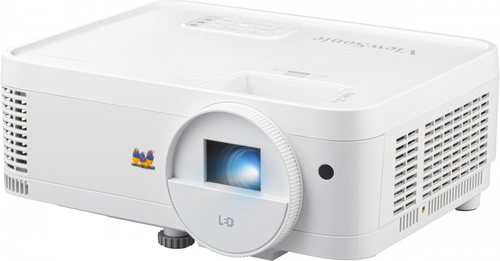

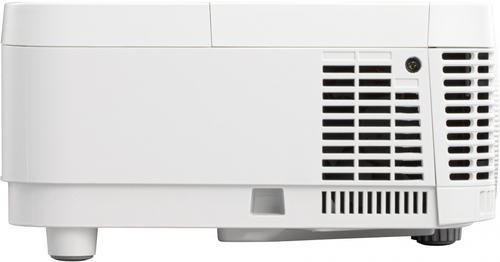

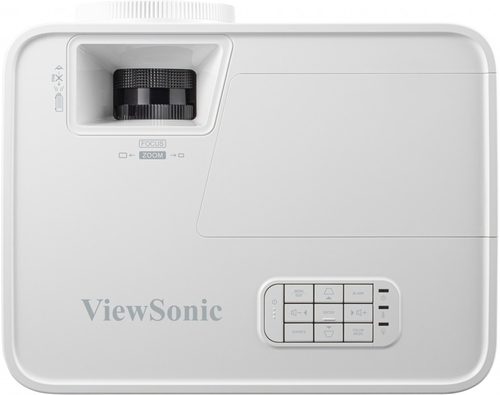

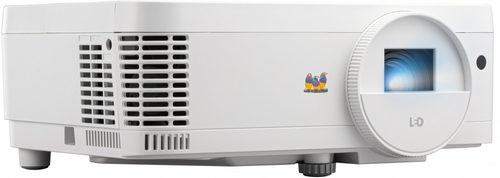

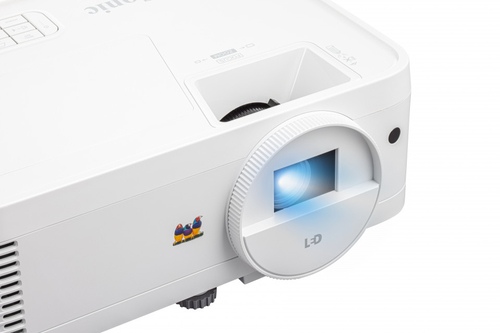

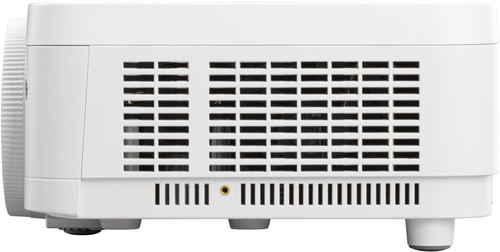

2,000 ANSI Lumens WXGA LED Business/Education Projector.

Part # LS500WHUPC 7669070167345.4 lb

3rd generation LED technology with 30,000 hour lifespan
2,000 ANSI Lumens offering bright images in any environment
Instant power on/off for efficient use
360° projection for versatile application
Convenient projector software updates via USB connection

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The LS500WH is ViewSonic’s first lamp-free, 2,000 ANSI Lumens high brightness WXGA projector for business and education. Adopting industry-leading 3rd generation LED technology, it frees users from frequent lamp replacement and toxic mercury for a safer and greener environment, offering phenomenal lifespan of 30,000 hours, less power consumption, and true-to-life colors with 125% Rec.709. Give light to your presentations effortlessly with efficient instant power on/off and 360° tilt angle projection for flexible setup in small-to- medium sized meeting rooms/classrooms.

Advanced 3rd Generation LED Technology

The latest 3rd generation LED technology eliminates toxic mercury and the cost and effort of frequent lamp replacement, offering consistently impressive brightness for up to 30,000 hours.

Lamp Free, Mercury Free, Maintenance Free

Enhanced Brightness for Business/Education Environments

With the latest LED technology, the LS500WH achieves a major brightness breakthrough to 2,000 ANSI Lumens, ensuring bright and detailed images in dim or lit environments.

2,000 ANSI Lumens

Higher Power Efficiency

Adopting ams OSRAM’s Ostar Projection Power LED technology, the LS500WH saves nearly 50% more energy than competing lamp-based projectors.

Energy-Saving

Cinema SuperColor+™ Technology

Impress any audience with ViewSonic’s exclusive Cinema SuperColor+™ Technology, covering 125% Rec.709 wide color gamut for a rich, true-to-life color experience.

Efficient Instant Power On/Off

Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.

360° Projection for Versatile Application

The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.

USB Type A Power Supply

The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.

Sealed Optical Engine with IP5X

Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.

IP5X

Specifications

Projector

Screen size compatibility: 762 - 7620 mm (30 - 300")
Projector brightness: 2000 ANSI lumens
Projector native resolution: WXGA (1280x800)
Contrast ratio (typical): 3000000:1
Number of colours: 1.07 billion colours
Horizontal scan range: 15 - 102 kHz
Vertical scan range: 23 - 120 Hz
Keystone correction, vertical: -40 - 40°

Light source

Light source type: LED
Service life of light source: 30000 h

Lens system

Focus: Auto
Focal length range: 22 - 24.1 mm
Aperture range (F-F): 2.56 - 2.68
Zoom capability: Yes
Zoom ratio: 1.1:1
Throw ratio: 1.55 - 1.70
Offset: 100%

Video

Analog signal format system: NTSC, PAL, SECAM
Supported graphics resolutions: 640 x 512, 640 x 640, 640 x 160, 640 x 352, 640 x 360, 640 x 400, 640 x 480 (VGA), 640 x 544, 640 x 576, 640 x 960, 704 x 288, 704 x 480, 704 x 576, 720 x 350, 720 x 400, 720 x 480, 720 x 576, 720 x 720, 752 x 582, 768 x 432, 768 x 448, 768 x 494, 768 x 576, 800 x 448, 800 x 450, 800 x 480 (WVGA), 800 x 500, 800 x 592, 800 x 600 (SVGA), 832 x 624, 832 x 642, 848 x 480, 854 x 480 (WVGA), 900 x 720, 960 x 960, 960 x 480, 960 x 540, 960 x 576, 960 x 720, 1024 x 576 (WSVGA), 1024 x 600, 1024 x 640, 1024 x 768 (XGA), 1024 x 800, 1032 x 452, 1056 x 144, 1080 x 1080, 1152 x 864 (XGA+), 1152 x 870, 1200 x 1600, 1200 x 1920, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 768, 1280 x 800 (WXGA), 1280 x 800, 1280 x 960, 1280 x 1280, 1284 x 560, 1296 x 732, 1360 x 768 (WXGA), 1366 x 480, 1366 x 760, 1366 x 768, 1366 x 768, 1368 x 768, 1376 x 768, 1400 x 1050 (SXGA+), 1400 x 1080, 1400 x 900, 1440 x 1050, 1440 x 1080, 1440 x 234, 1440 x 900 (WXGA+), 1440 x 900, 1440 x 912, 1536 X 6144, 1536 x 2048, 1536 x 1536, 1600 x 1200 (UXGA), 1600 x 1280, 1600 x 600, 1600 x 900, 1600 x 904, 1680 x 1050 (WSXGA+), 1680 x 1056, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 502
Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

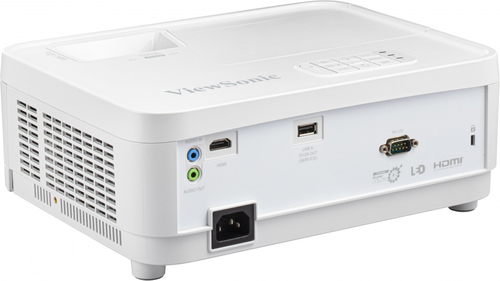

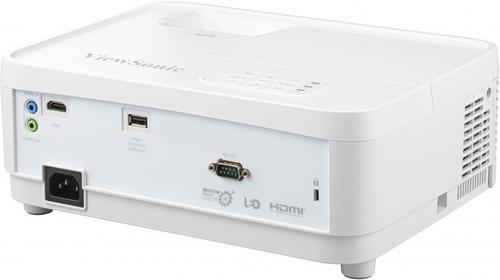

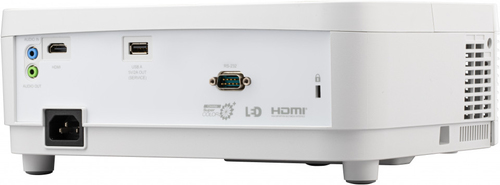

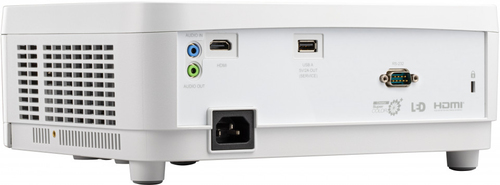

Ports & interfaces

HDMI version: 1.4
USB 2.0 ports quantity: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
Serial interface type: RS-232
HDMI ports quantity: 1

Features

Noise level (economic mode): 26 dB
HDCP: Yes
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Number of OSD languages: 24
Noise level: 30 dB
