ViewSonicComputer Monitors

22" IR 10-point Touch Display, 1920x1080 Full HD resolution.

Part # TD2223UPC 76690700864712.7 lb

Intuitive 10-point touchscreen
Finger, stylus, and glove touch compatible
Magnetic pen placeholder
Adjustable back tilt up to 40-degrees
Scratch-resistant 7H hardness screen

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

Operating System Support

This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact

This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

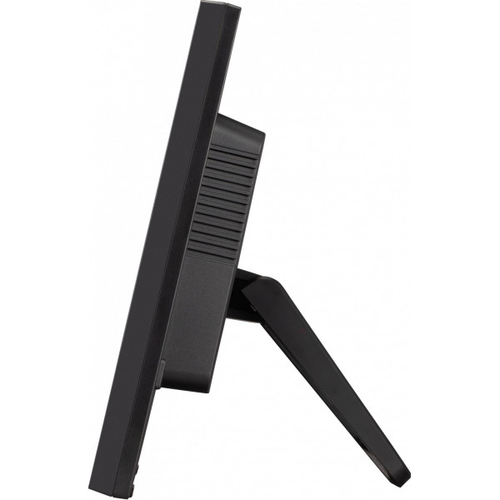

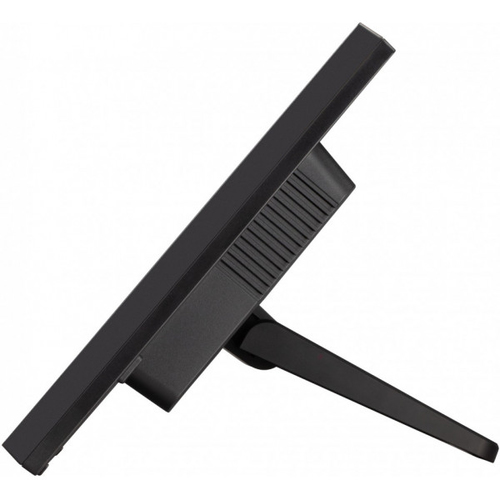

Adjustable Tilt

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Clear Images

This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.

Dual Integrated Speakers

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Enhanced Viewing Comfort

This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.

Specifications

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: TN
Touchscreen: Yes
Touchscreen type: Multi-user
Touchscreen technology: Infrared
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness: 250 cd/m²
Response time: 5 ms
Screen shape: Flat
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 20000000:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.78 million colours
Pixel pitch: 0.248 x 0.248 mm
Horizontal scan range: 24 - 82 kHz
Vertical scan range: 50 - 75 Hz

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Built-in speaker(s): Yes
Built-in microphone: No
Built-in camera: No

Design

Product colour: Black
Glass thickness: 2 mm

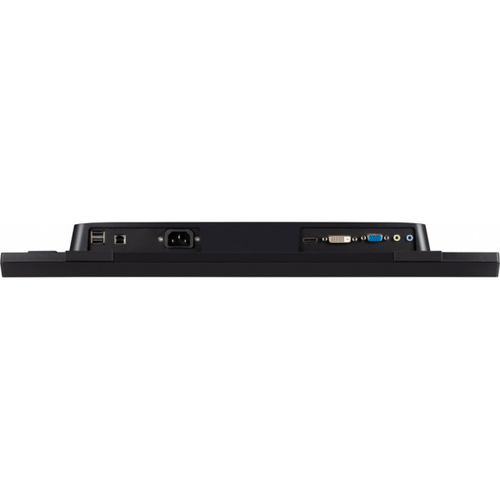

Ports & interfaces

Built-in USB hub: Yes
USB upstream port type: USB Type-B
Number of upstream ports: 1
USB Type-A downstream ports quantity: 2
VGA (D-Sub) ports quantity: 1
DVI port: Yes
DVI-D ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
HDMI version: 1.4
Headphone out: Yes
Headphone outputs: 1
Microphone in: Yes

Ergonomics

Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington
Tilt adjustment: Yes
Tilt angle range: 22 - 38°

Power

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 14 kWh
Power consumption (typical): 12.5 W
Power consumption (standby): 0.5 W
Power consumption (max): 14 W
Power consumption (off): 0.3 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Power supply type: AC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Width (with stand): 521 mm
Depth (with stand): 101 mm
Height (with stand): 334 mm
Weight (with stand): 4.5 kg
Width (without stand): 521 mm
Depth (without stand): 61 mm
Height (without stand): 318 mm
Weight (without stand): 3.9 kg

Packaging data

Package width: 580 mm
Package depth: 164 mm
Package height: 405 mm
Package weight: 6 kg

Packaging content

Stand included: Yes
Cables included: AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B

Sustainability

Sustainability certificates: ENERGY STAR

Other features

Compliance certificates: REACH, RoHS
Certification: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP
