15.6" Portable IPS Monitor,1920x1080 resolution,Mobile Ergonomics,USB-C,HDMI.
- Easily extend your content from laptops and mobile devices
- USB-C one-cable solution for audiovisual and power signal transmission
- Flexible display setup – work at any angle
- Compact size, light weight, and highly portable
- Endurable one-piece design
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The ViewSonic VA1655 is a portable 16” Full HD monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual and power signal transmission. The adjustable stand and pivot-able display will support your working angles.
Extend Your Content from Mobile Devices
Not only HDMI, you also can extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, iOS and iPadOS*. Be sure your laptop, tablet, or smartphone has a full-function USB-C connector that supports Display Port 1.2 Alt Mode and Power Delivery.
*To connect on iPhone or iPad with a lightning port, you will require to purchase a Lightning Digital AV Adapter from apple.com and connect via a HDMI to mini HDMI cable**.
**The HDMI to mini HDMI cable is included in the box.
Anywhere with Laptops, Tablets, and Phones
Audiovisual Extension while Power Charging
Broadcast your built-in Type C mobile device’s multimedia onto a bigger screen and charge over one cable while powering from an external power bank/outlet over the other USB Type C cable.
*Power Charging:
1. For longer use, connect to an external power bank or outlet.
2. For temporary use, connect to your mobile device only.
1> Over 2 hours when powering from your phone - Tested with the phone's built-in battery at a capacity of 4,000 mAh.
a. The phone is on, but with a blank screen.
b. The portable monitor has a brightness value of 15 and a contrast value of 70.
c. Connected by a USB Type C cable.
2> Over 1.5 hours when powering from your laptop - Tested with the laptop's built-in battery at a capacity of 53,546 mAh.
a. The laptop is on; the screen is on.
b. The portable monitor has a brightness value of 100 and a contrast value of 70.
c. Connected by a USB Type C cable.
Flexible Setup with USB Type C and mini HDMI
Portable Size for Work & Fun
Larger, 16” display than most common laptops and weighing less than 1 kg with stylish sleeve case. It perfectly outfits your mobile workplace, and can be used for multimedia play when taking a break.

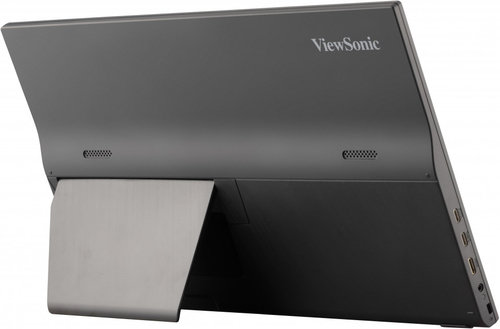

Working in Your Preferred Angles
View in a wide range of angles by adjusting the attached stand.
Up to 53 Degree Tilt
Supports Vertical Layout
Besides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc.
Pivot-able Display
One-piece Design
With the plastic case and endurable hinge, the foldable stand makes the whole monitor a one-piece design.
Specifications
Display
- Display diagonal
- 40.6 cm (16")
- Display resolution
- 1920 x 1080 pixels
- HD type
- Full HD
- Native aspect ratio
- 16:9
- Display technology
- LED
- Panel type
- IPS
- Touchscreen
- No
- Display brightness (typical)
- 250 cd/m²
- Display brightness
- 250 cd/m²
- Response time
- 7 ms
- Anti-glare screen
- Yes
- Screen shape
- Flat
- Contrast ratio (typical)
- 800:1
- Contrast ratio (dynamic)
- 50000000:1
- Maximum refresh rate
- 60 Hz
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Display number of colours
- 16.2 million colours
- Pixel pitch
- 0.179 x 0.179 mm
- Digital horizontal frequency
- 15 - 82 kHz
- Digital vertical frequency
- 50 - 75 Hz
- Surface hardness
- 3H
- Colour depth
- 8 bit
- sRGB coverage (typical)
- 64%
- NTSC coverage (typical)
- 45%
Multimedia
- Number of speakers
- 2
- RMS rated power
- 0.8 W
- Built-in speaker(s)
- Yes
Design
- Market positioning
- Business
- Product colour
- Black
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB upstream port type
- USB Type-C
- USB Type-C DisplayPort Alternate Mode
- Yes
- HDMI
- Yes
- HDMI ports quantity
- 1
- Mini HDMI ports quantity
- 1
- Audio output
- 1 x 3.5 mm
- Headphone out
- Yes
- Headphone outputs
- 1
Ergonomics
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Pivot
- Yes
- Tilt adjustment
- Yes
- Tilt angle range
- 30 - 53°
Power
- Energy efficiency class (SDR)
- C
- Energy consumption (SDR) per 1000 hours
- 7 kWh
- Power consumption (typical)
- 7 W
- Power consumption (standby)
- 0.3 W
- Power consumption (max)
- 7.3 W
- Power supply type
- AC
- Energy efficiency scale
- A to G
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 90%
Weight & dimensions
- Width (with stand)
- 359 mm
- Depth (with stand)
- 17 mm
- Height (with stand)
- 277 mm
- Weight (with stand)
- 700 g
- Width (without stand)
- 359 mm
- Depth (without stand)
- 17 mm
- Height (without stand)
- 227 mm
- Weight (without stand)
- 700 g
Packaging data
- Package width
- 434 mm
- Package depth
- 88 mm
- Package height
- 391 mm
- Package weight
- 1.7 kg
Packaging content
- Cables included
- USB Type-C
Other features
- Compatible operating systems
- Windows 10 certified macOS tested
- Weight
- 700 g
- Compliance certificates
- REACH, RoHS
Logistics data
- Products per master (outer) case
- 1 pc(s)
- Pallet gross width
- 120 cm
- Pallet gross length
- 100 cm
- Pallet gross height
- 2.16 m
- Harmonized System (HS) code
- 8528521000
