Tripp LiteInterface Hubs

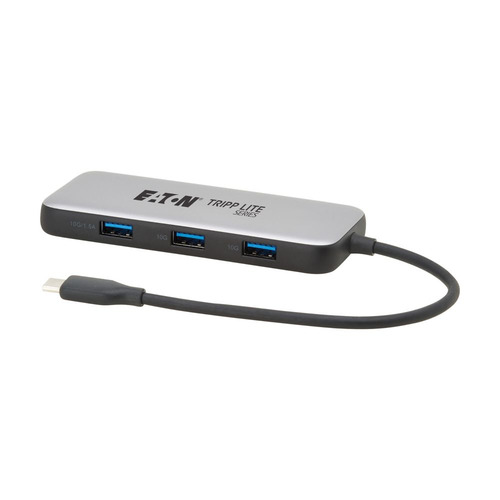

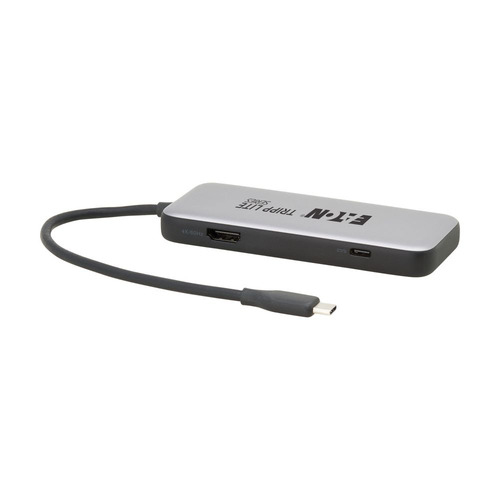

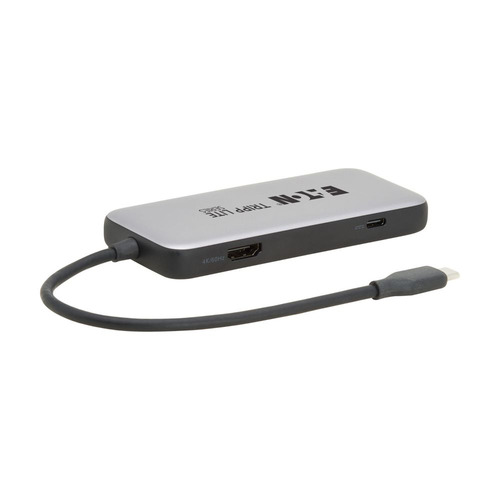

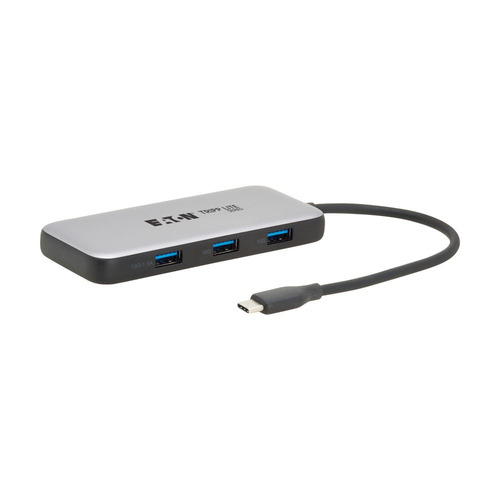

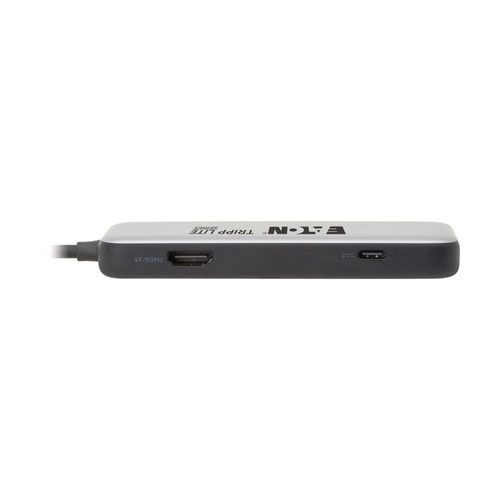

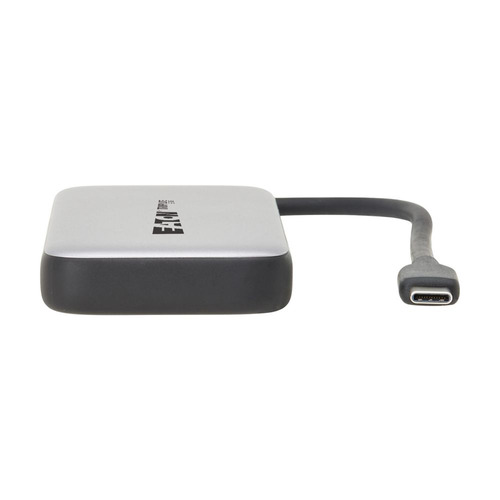

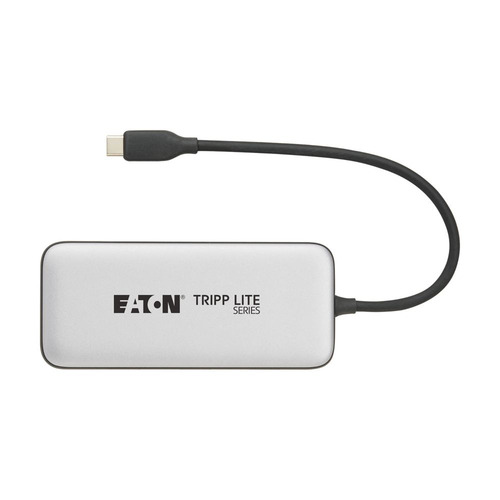

USBC Multiport Adapter 4K 60 Hz HDMI, USB 3.2 Gen 2 Hub Ports, 100W PD Charging, HDR, HDCP 2.2
- Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
- Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for heightened video quality

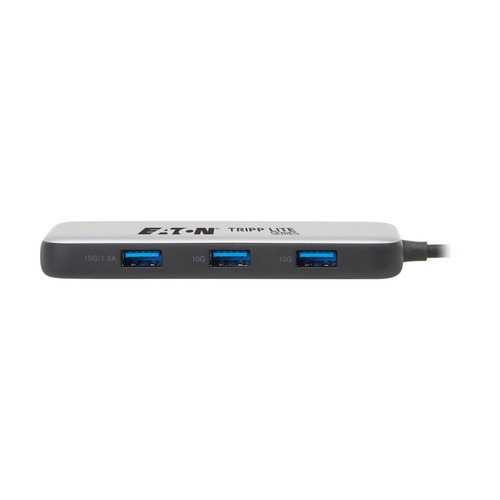

- USB 3.2 Gen 2 data ports transmit to external drives and connect peripherals at 10 Gbps
- Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
- Power Delivery port provides 20V 5A (100W) output for charging connected host device
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Ports & interfaces
- Host interface
- USB Type-C
- Hub interfaces
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A, HDMI, USB Type-C
- DisplayPort version
- 1.4
- Ports quantity
- 5
Features
- Data transfer rate
- 10000 Mbit/s
- Maximum refresh rate
- 60 Hz
- Supported graphics resolutions
- 3840 x 2160
- Colour depth
- 36 bit
- High Dynamic Range (HDR) supported
- Yes
- 3D
- Yes
- Product colour
- Black, Grey
- Housing material
- Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS)
- HDCP
- Yes
- HDCP version
- 2.3
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery up to
- 100 W
- Mirror mode
- Yes
- Number of displays supported
- 1
- AWG wire size
- 34/24
- Cable jacket material
- Thermoplastic elastomer (TPE)
- Cable length
- 0.17 m
- Connector contacts plating
- Nickel
- Certification
- EN 55032 EN 55035
Weight & dimensions
- Width
- 119.9 mm
- Depth
- 15.5 mm
- Height
- 50 mm
- Weight
- 40 g
Packaging data
- Quantity per pack
- 1 pc(s)
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Operating temperature (T-T)
- 32 - 113 °F
- Storage temperature (T-T)
- -10 - 70 °C
- Operating relative humidity (H-H)
- 10 - 85%
- Storage relative humidity (H-H)
- 5 - 95%
Technical details
- Compliance certificates
- UKCA, REACH, RoHS, CE, Federal Communications Commission (FCC)
- Connector 1 form factor
- Straight
Other features
- Maximum resolution
- 3840 x 2160 pixels
