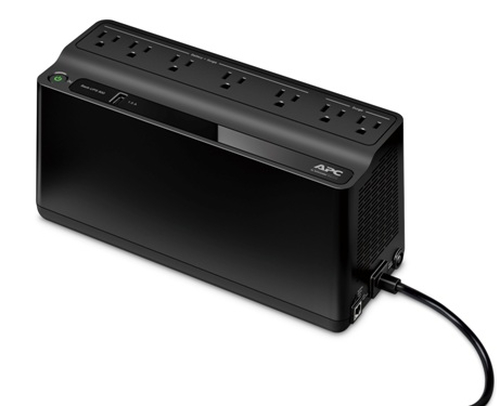

Uninterruptible Power Supply (UPS) Back-UPS APC Back-UPS ES 600VA, 120V,1 USB charging port Replaces BE550G
- Standby (Offline)
- 0.6 kVA 330 W
- 7 AC outlet(s)
- Compact Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
APC Back-UPS BE600M1, 600VA, 120V,1 USB charging port
Battery Backup & Surge Protector for Electronics and Computers
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.
Cold-start capable
Provides temporary battery power when the utility power is out.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Simple battery replacement
Increases UPS availability by allowing quick, easy battery replacement.
Transformer Block Spacing
Connect bulky transformer block plugs without covering up other outlets.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Specifications
Features
- UPS topology
- Standby (Offline)
- Output power capacity
- 0.6 kVA
- Output power
- 330 W
- Input operation voltage (min)
- 92 V
- Input operation voltage (max)
- 139 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 120 V
- Output frequency regulation
- 50 - 60 Hz
- Maximum current
- 5 A
- Surge energy rating
- 490 J
- Hold time (min)
- 6 ms
- Hold time (max)
- 10 ms
- EMI/RFI noise filtering
- Yes
- Noise level
- 35 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces
- AC outlet types
- NEMA 5–15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 7 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
Battery
- Battery capacity
- 66 VAh
- Number of batteries supported
- 1
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 10 h
- Cold start
- Yes
Design
- Form factor
- Compact
- Cable length
- 1.52 m
- Product colour
- Black
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- REACH, CEC, cTUVus, FCC Part 15 Class B, NOM, UL 1778
Packaging content
- Manual
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 274 mm
- Depth
- 105 mm
- Height
- 139 mm
- Weight
- 3.49 kg
Packaging data
- Package width
- 363 mm
- Package depth
- 168 mm
- Package height
- 196 mm
- Package weight
- 3.81 kg
