APCUninterruptible Power Supplies (UPSs)

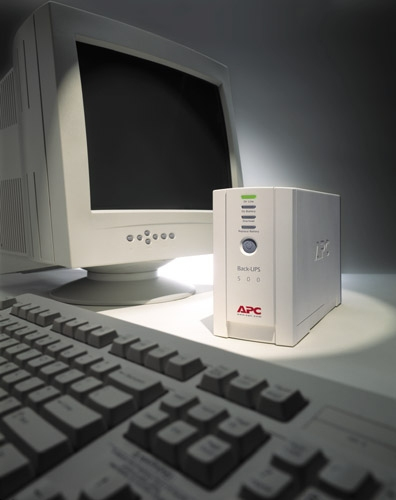

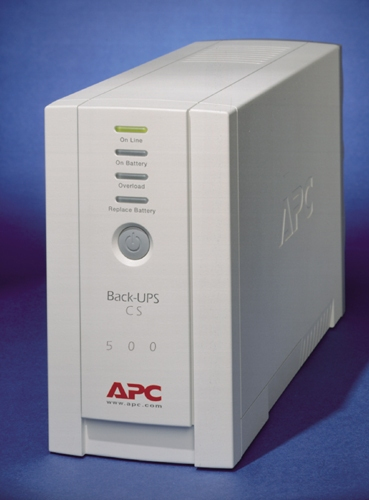

Back-UPS CS 500
- 0.5 kVA 300 W
- Sealed Lead Acid (VRLA)
- Beige
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
APC Back-UPS CS, 300 Watts / 500 VA,Input 120V / Output 120V, Interface Port DB-9 RS-232, USB.
Includes: CD with software, Cord management straps, USB cable, User Manual.
Specifications
Features
- Output power capacity
- 0.5 kVA
- Output power
- 300 W
- Surge energy rating
- 480 J
- Noise level
- 45 dB
- Audible alarm(s)
- Yes
Ports & interfaces
- Number of output IEC jumpers
- 2
- USB 2.0 ports quantity
- 1
- Serial ports quantity
- 1
- Modem (RJ-11) ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 2.4 min
- Typical backup time at half load
- 13.9 min
- Battery recharge time
- 6 h
Design
- Cable length
- 1.83 m
- Product colour
- Beige
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Certificates
- Certification
- C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Weight & dimensions
- Weight
- 6.27 kg
Packaging data
- Package weight
- 6.95 kg
Logistics data
- Products per pallet
- 80 pc(s)
- Harmonized System (HS) code
- 85078000
Other features
- Interface
- Serial, USB

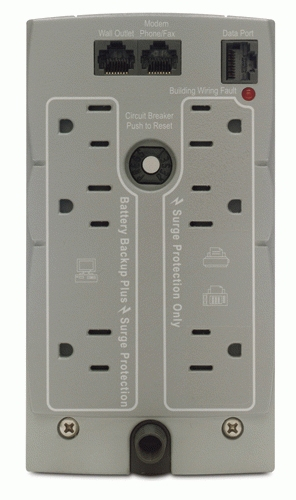

- Output connections
- (3) NEMA 5-15R, (3) NEMA 5-15R
- Input connection type
- IEC-320-C14
- Dimensions (WxDxH)
- 91 x 284 x 165 mm
- Nominal output voltage
- 120 V
- Nominal input voltage
- 230 V
- Filtering
- Yes
- Package dimensions (WxDxH)
- 241 x 368 x 178 mm
Downloads
