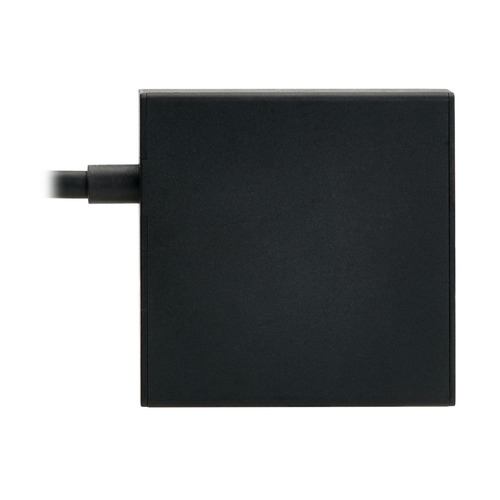

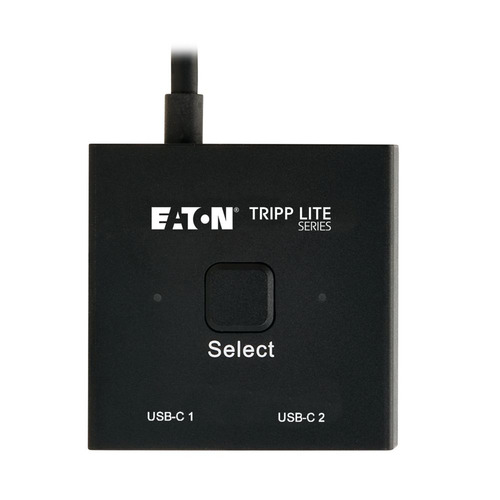

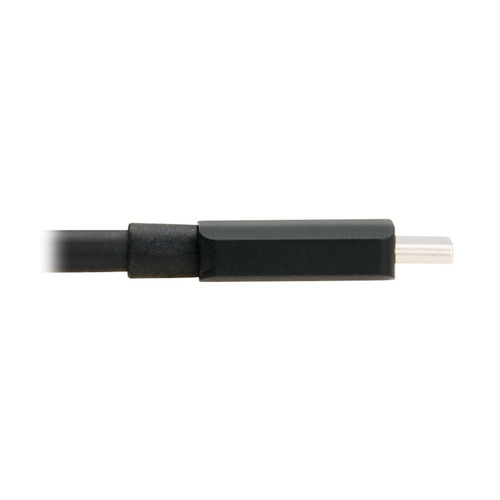

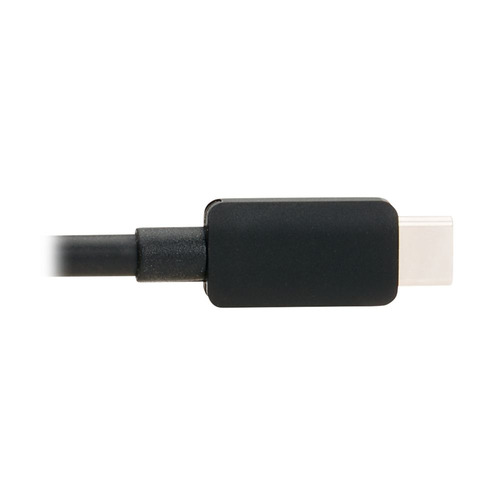

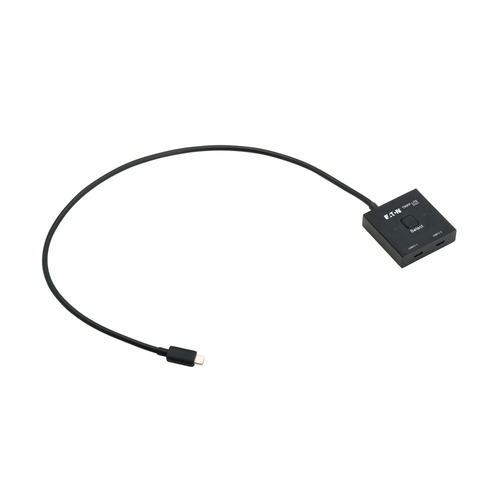

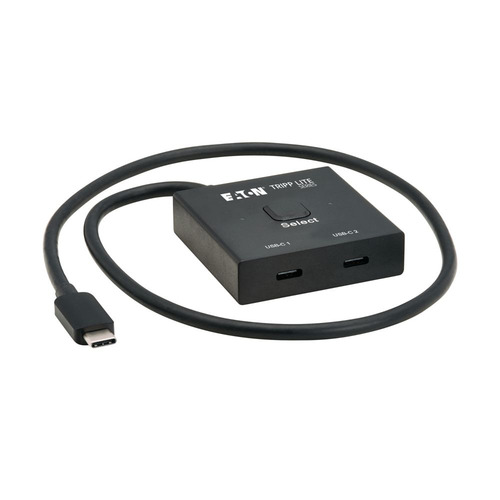

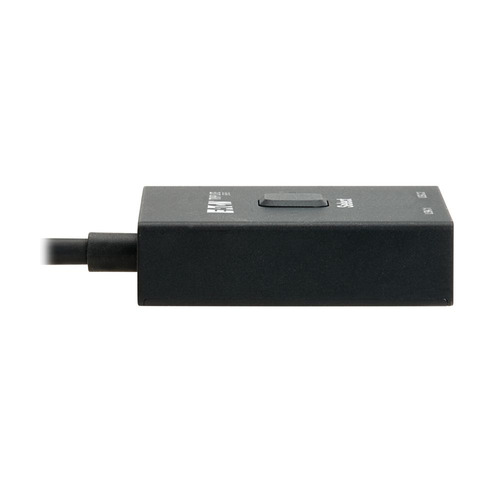

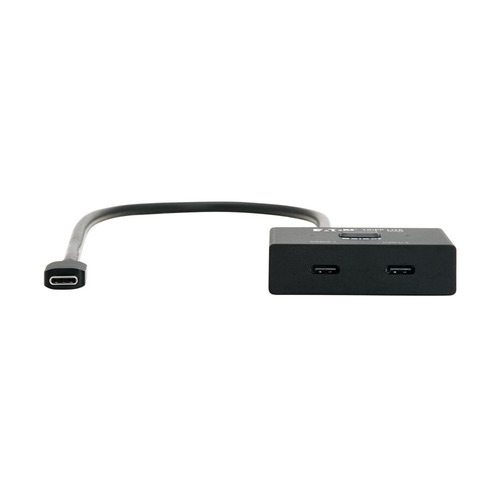

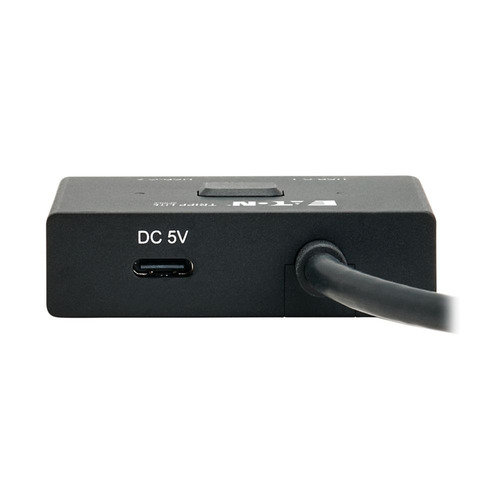

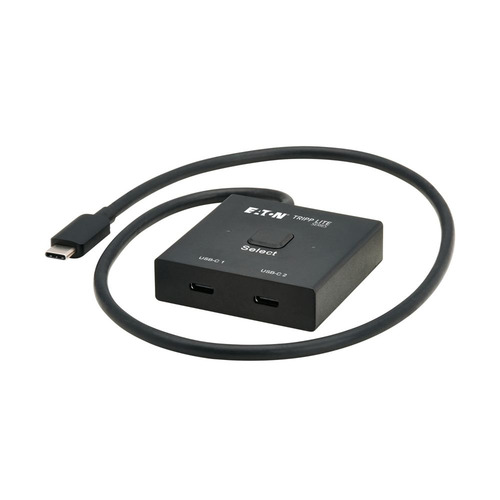

2x1 BiDirectional USBC Switch 8K 60 Hz Video, HDCP Passthrough, USB 3.2 Gen 2, 100W PD Charging, Black
- USB-C PD 3.0 pass-through ports provide up to 100W charging to the host computer
- Supports UHD resolutions up to 4K @ 120 Hz (4:4:4) or 8K @ 60 Hz
- Supports USB 3.2 Gen 2 speeds up to 10 Gbps to ensure lightning-fast data transfers
- 3-year limited warranty (Worldwide)
- HDCP passthrough allows 4K/8K signals from source to display with no loss in resolution

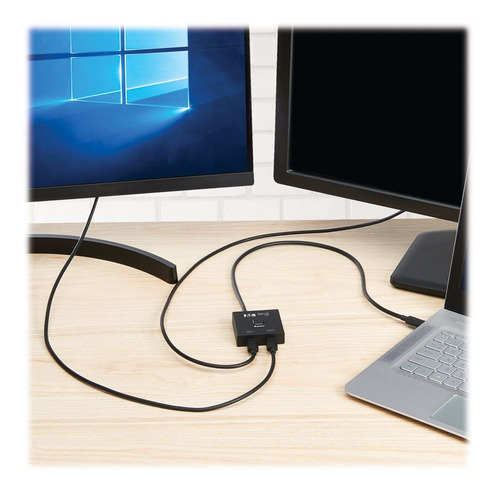

- Recommended for digital signage, home theaters and 4K video presentations
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Expand Connectivity with Ease
Our wide selection of hubs and switches unifies power, data and networking into compact, reliable solutions, which helps businesses, educators and IT teams work faster, smarter and more efficiently. They deliver reliable, high‑speed connectivity for laptops, desktops and industrial systems. They expand your device capacity, simplify cable management and ensure seamless data transfer across modern and legacy environments.
Benefits That Power Productivity
What makes these hubs and switches so valuable to your workflow?
- Expanded device capacity without sacrificing speed or reliability.
- Cross‑platform compatibility with Windows, macOS, Chrome OS and Linux.
- Durable construction for both office and industrial environments.
- Future‑ready performance with support for Thunderbolt 4, USB-C and legacy USB devices.
Built for Every Environment
Eaton’s Tripp Lite series hubs and switches are designed for a wide range of applications. Industrial-grade models feature rugged metal housings and ESD protection, making them perfect for factories, warehouses and labs. Slim and portable hubs are tailored for mobile professionals who need reliable connectivity on the go. For enterprise deployments, multiport hubs provide the scalability to support large teams and complex setups.
Specifications
Ports & interfaces
- Host interface
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- Hub interfaces
- USB Type-C
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- DisplayPort version
- 1.4
- Ports quantity
- 3
Features
- Data transfer rate
- 10000 Mbit/s
- Maximum refresh rate
- 120 Hz
- Supported graphics resolutions
- 7680 x 4320, 3840 x 2160
- Colour depth
- 36 bit
- High Dynamic Range (HDR) supported
- Yes
- 3D
- Yes
- Product colour
- Black
- Supported chroma subsampling
- 4:2:0, 4:2:2, 4:4:4
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery revision
- 3.0
- USB Power Delivery up to
- 100 W
- Extended mode
- Yes
- Mirror mode
- Yes
- Number of displays supported
- 1
- LED indicators
- Activity
- AWG wire size
- 34/23
- Cable jacket material
- Polyvinyl chloride (PVC)
- Cable length
- 1 m
- Connector contacts plating
- Nickel
- Certification
- EN 55032 EN 55035
Weight & dimensions
- Width
- 55.1 mm
- Depth
- 55.1 mm
- Height
- 15 mm
- Weight
- 63.5 g
Packaging data
- Quantity per pack
- 1 pc(s)
Operational conditions
- Operating temperature (T-T)
- -10 - 60 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 10 - 85%
Technical details
- Compliance certificates
- RoHS, REACH, CE, Federal Communications Commission (FCC), UKCA, WEEE
