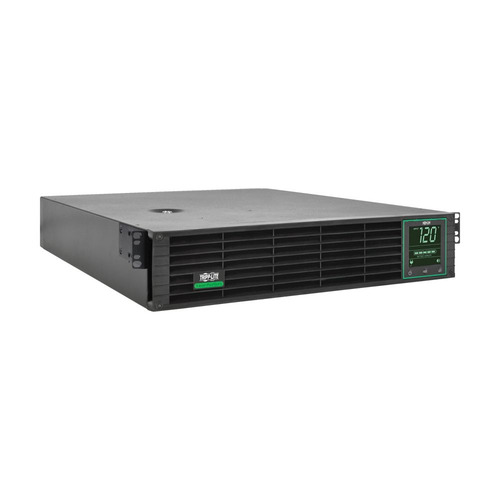

FD ONLY ITEM DUE TO LITHIUM Eaton Tripp Lite Series 1500VA 1440W 120V Line-Interactive Sine Wave
- Lithium UPS provides 1.5kVA capacity power protection for critical network components
- Pure sine wave output ensures maximum stability and compatibility with equipment
- Automatic voltage regulation corrects abnormal voltage conditions without using the battery
- LiFePO4 battery backup lasts longer and weighs less than equivalent lead acid battery
- Preinstalled WEBCARDLXE allows full remote control of UPS and access to advanced features
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Dependable Battery Backup for Data Centers and Server Rooms
This SmartPro line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment. It is ideal for delivering regulated sine wave output to large and small network devices, high-end workstations, storage and security equipment in labs, server rooms and data centers.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
Built-in AVR corrects abnormal voltage conditions without using the battery. The UPS maintains regulated nominal output during brownouts and overvoltages while keeping the battery fully charged and ready to take over in case of power failure.

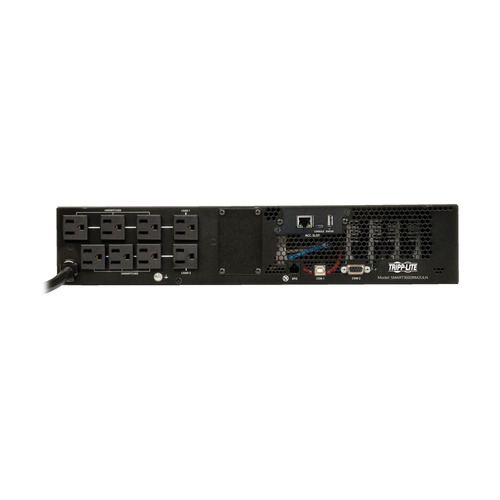

{Receptacle} Outlets Protect Your Connected Components
{Receptacle} outlets are protected by 570 joules of surge protection to fight off damaging power surges and spikes. Two switchable single-outlet load banks that are switchable via network interface. These outlets let you power connected equipment on and off remotely to reset or reboot connected equipment or to shed less significant loads to extend battery runtime for more critical equipment.
Filtering EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
High Efficiency Helps the Environment and Your Cash Flow
Operating with a high level of efficiency, this UPS system can save BTU heat output and energy costs.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a device for a variety of communication options (cables are included). The EPO (Emergency Power Off) port permits emergency shutdown of connected equipment.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1.5 kVA
- Output power
- 1440 W
- Waveform
- Pure sine
- Input operation voltage (max)
- 120 V
- Output operation voltage (min)
- 110 V
- Output operation voltage (max)
- 120 V
- Maximum current
- 12 A
- Number of input phases
- 1
- Number of output phases
- 1
- Output power factor
- 0.96
Ports & interfaces

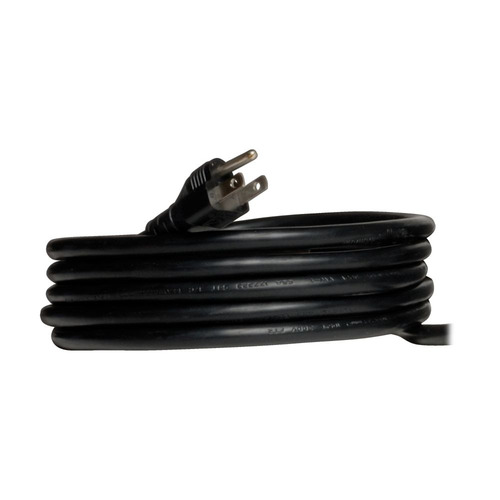

- Power plug
- NEMA 5-15P
- AC outlets quantity
- 8 AC outlet(s)
- USB port
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Typical backup time at full load
- 7.1 min
- Typical backup time at half load
- 15.4 min
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 2U
- Product colour
- Black
Operational conditions
- Operating relative humidity (H-H)
- 0 - 95%
Certificates
- Compliance certificates
- Federal Communications Commission (FCC), RoHS, CSA, UL

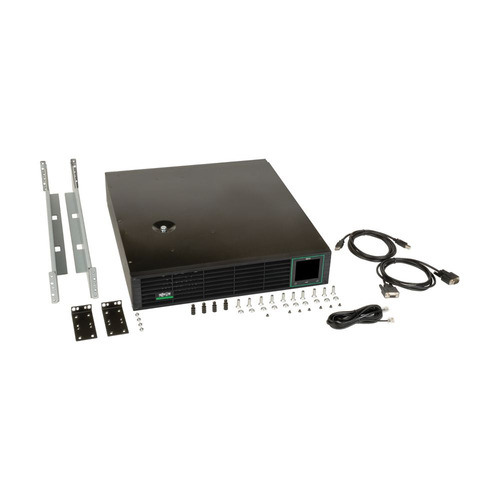

Packaging content
- Rack mount kit
- Yes
- Cables included
- USB cable
- Manual
- Yes
Weight & dimensions
- Width
- 439.4 mm
- Depth
- 489.5 mm
- Height
- 87.1 mm
- Weight
- 18.9 kg
