EatonUninterruptible Power Supplies (UPSs)

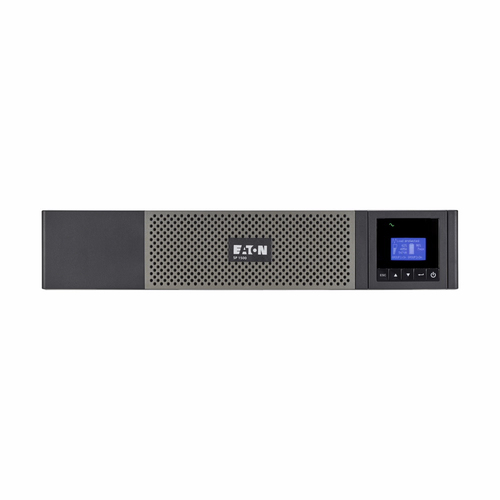

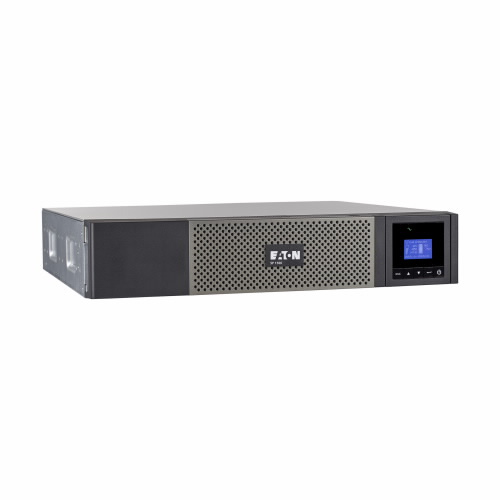

5P 1500VA Short RACK2U
- Seamless integration with the leading virtualization platforms
- Flexibility with multiple form factors, ideal for high density environments
- Premium protection for servers, network equipment and storage
- Standard communication slot for optional network card
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The Eaton 5P UPS delivers reliable enterprise class backup power in tower and rackmount form factors with an efficiency rating of up to 99%. With ENERGY STAR qualified models, the 5P's graphical LCD screen allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Eaton Intelligent Power Manager software, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1.44 kVA
- Output power
- 1100 W
- Input operation voltage (min)
- 89 V
- Input operation voltage (max)
- 151 V
- Input frequency
- 47/70 Hz
- Output operation voltage (min)
- 102 V
- Output operation voltage (max)
- 132 V
- Efficiency
- 98%
- Noise level
- 45 dB
Ports & interfaces

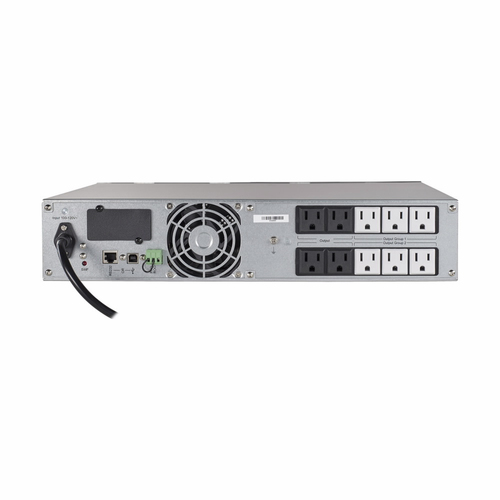

- AC outlet types
- NEMA 5–15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 10 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RJ-45
- RS-232 ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 2U
- Product colour
- Black, Silver
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Operating altitude
- 0 - 3000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- cULus UL 1778 IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B UL 497A CE
Packaging content
- Cables included
- RS-232, USB cable
- Quick installation guide
- Yes
Weight & dimensions
- Width
- 442 mm
- Depth
- 406.4 mm
- Height
- 86.4 mm
- Weight
- 18.3 kg
Packaging data
- Bundled software
- Eaton Intelligent Power Manager
Other features
- Nominal output voltage
- 120 V
- Nominal input voltage
- 120 V
