Home/Catalogue/Eaton/5S1000LCD
EatonUninterruptible Power Supplies (UPSs)

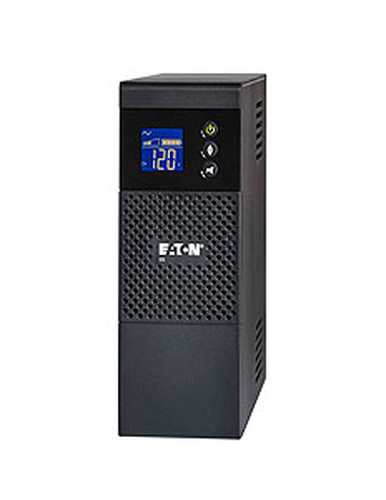

5S uninterruptible power supply (UPS) Line-Interactive 1 kVA 600 W 10 AC outlet(s)
- Line-Interactive
- 1 kVA 600 W
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The compact Eaton 5S UPS delivers backup power for desktop PCs and workstations. The Eco-Control capability enables you save up to 30 percent in energy consumption. You can also enhance your power protection and safeguard your data when you pair it with the Eaton UPS Companion software. The 5S displays critical UPS information on battery time and outage tracking through a user-friendly LCD interface.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1 kVA
- Output power
- 600 W
- Input operation voltage (min)
- 93 V
- Input operation voltage (max)
- 138 V
- Input frequency
- 50/60 Hz
- Efficiency
- 95%
- Noise level
- 25 dB
- Surge protection
- Yes
- Surge protection features
- Network
Ports & interfaces
- AC outlet types
- NEMA 5–15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 10 AC outlet(s)
- USB 2.0 ports quantity
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 3 min
- Typical backup time at half load
- 14 min
Design
- Form factor
- Tower
- Cable length
- 1.8 m
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- -15 - 40 °C
- Operating relative humidity (H-H)
- 0 - 90%
Certificates
- Compliance certificates
- RoHS
- Certification
- UL 1778, UL497A CE / cTUVus / NOM
Weight & dimensions
- Width
- 86 mm
- Depth
- 381 mm
- Height
- 249 mm
- Weight
- 9.7 kg
Other features
- Nominal output voltage
- 115 V
- Nominal input voltage
- 120 V
Downloads
