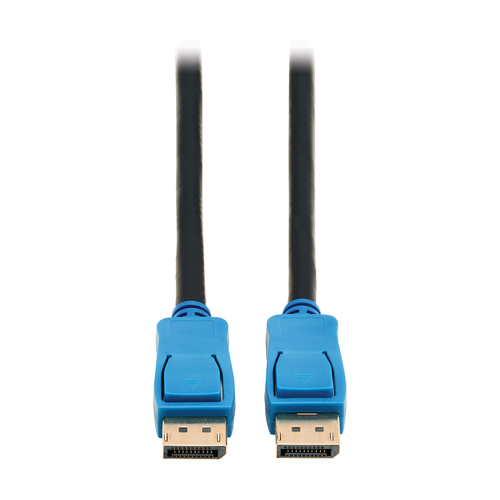

Tripp Lite P580-015-8K6 Drag to turn · 5 views
Tripp LiteDisplayPort Cables

DisplayPort Cable with Latching Connectors M/M, 8K 60 Hz, HDR, HBR3, 4:4:4, HDCP 2.2, 15 ft

Part # P580-015-8K6UPC 0373322909460.7 lb

  • 4.57 m
  • DisplayPort Straight Male
  • DisplayPort version: 1.4
  • 7680 x 4320 pixels 60 Hz 32.4 Gbit/s
  • HDCP
  • Black, Blue
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

DisplayPort 1.4 Cable Gets Your Gaming, Home Theater or Digital Signage Setup 8K-Ready

This high-speed DisplayPort (DP) cable (M/M) securely connects source and display devices compatible with DP 1.4 audio/video signals. Backward compatible with all your existing DisplayPort devices, including Blu-ray players, game consoles and 4K televisions, the P580-015-8K6 is ideal for future-proofing your high-definition or Ultra HD application in anticipation of an 8K upgrade.

Enjoy the Clarity of 4K/8K Video with Multi-Channel Audio and 4:4:4 Color

The P580-015-8K6 supports 8K Ultra HD resolutions up to 7680 x 4320 at 60 Hz with multi-channel sound. It’s compatible with DisplayPort 1.4 standards for HDR, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream 4K content with no complications. This BT.2020-compatible cable also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

01

Invest in Quality Construction for Reliable Performance

You’re expecting this 8K cable to last a long time, which is why it has been constructed with high-quality materials, such as a rugged PVC jacket. Contacts and connectors are gold-plated to resist corrosion. The male connectors latch securely to help prevent the cable from becoming accidentally disconnected and disrupting a continuous audio/video signal. Double shielding reduces line noise (EMI/RFI) that can disrupt signals traveling through the DisplayPort cord.

Specifications

Features

Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
DisplayPort version
1.4
Maximum resolution
7680 x 4320 pixels
Maximum refresh rate
60 Hz
HDCP
Yes
HDCP version
2.2
Cable length
4.57 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Black, Blue
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
26
High Dynamic Range (HDR) supported
Yes
Data transfer rate
32.4 Gbit/s
Colour sampling
4:4:4

Operational conditions

Operating temperature (T-T)
-10 - 50 °C
Storage temperature (T-T)
-15 - 60 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%

Certificates

Compliance certificates
CE, RoHS, UKCA, WEEE

Weight & dimensions

Cable diameter
7.3 mm
Weight
310 g

Packaging data

Package width
254 mm
Package depth
12.7 mm
Package height
304.8 mm
Package weight
320 g
Package type
Polybag

Packaging content

Quantity per pack
1 pc(s)
