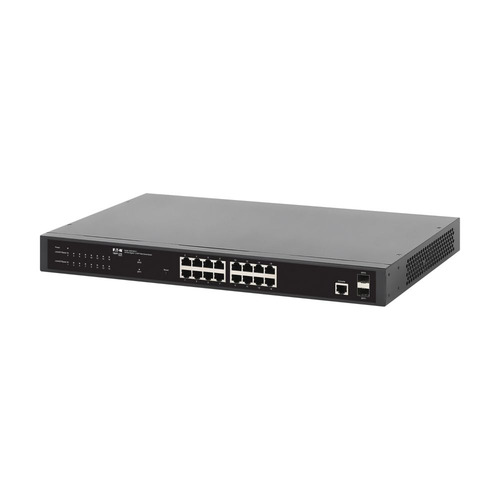

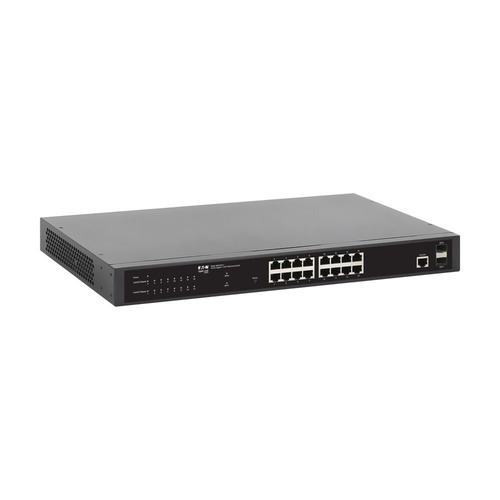

Eaton Tripp Lite Series 16PT Gigabit Web-Managed Layer 2 Network Switch, 2 SFP Ports, Rackmount

Part # NGS16C2-1UPC 037332290908Warranty: 3 Year6.28 lb

Complies with Energy Efficient Ethernet standards, including IEEE 802.3ab
16 auto-negotiating RJ45 and dual GbE SFP ports connect devices over a VLAN

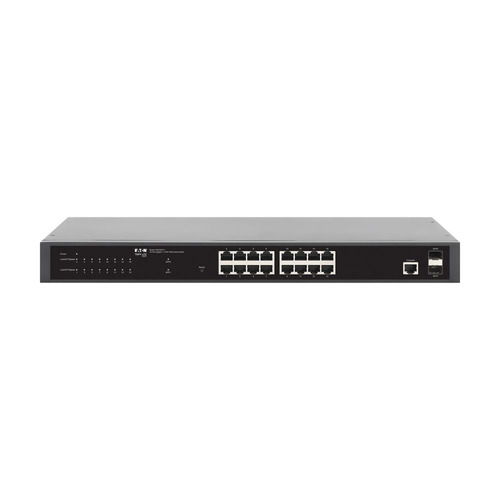

Easy-to-read LEDs indicate connection and activity status for each port
Comes pre-loaded with Layer 2 network management software for IGMP snooping
Works with most popular Windows and macOS browsers, including Edge and Chrome

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Enterprise Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN

This space-saving desktop switch transmits data over a Gigabit Ethernet (GbE) network. {PortsDetail} auto-negotiating ports send data via Cat5e/6/6a/8 cable only to the computers, routers, hubs and other devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the switch is powered on and which Ethernet ports are connected and showing activity.

Recommended for IT Managers in Server Message Block (SMB) and Enterprise Network Installs

This managed Ethernet switch is ideal for IT pros needing a high-performance managed network switch for white space installations. It is also recommended for data centers using Layer 2 and Layer 3 management of connected servers, as well as small installations that manage multiple products within their network closets.

Built-In Web Smart Management Software

The Web Smart software provides rich Layer 2 functionality for monitoring and controlling connected equipment via a simple web interface. VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance.

Dual Dedicated SFP Ports

Two GbE SFP ports connect to user-supplied SFP modules (sold separately) for uplinking data to other switches via optical fiber or copper. LEDs indicate interface traffic.

Compliant with Energy Efficient Ethernet Standards

This switch automatically shifts unused ports to a low power state without interrupting its network connection. The switch also meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3z, 802.3at, 802.3af, 802.1q and 802.1p standards.

Works with the Most Popular Web Browsers

The managed switch is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the switch accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Versatile Installation Options

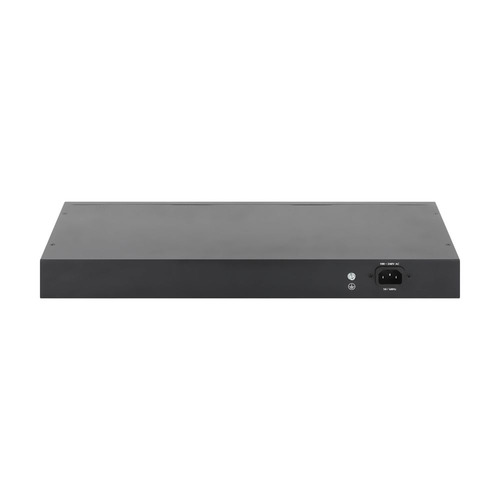

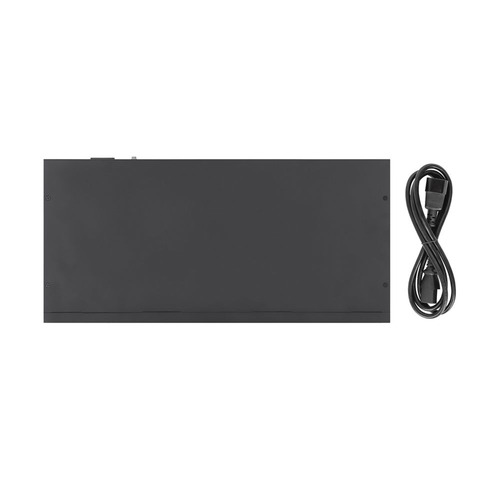

The heavy-duty metal housing can be positioned on a level surface using the included rubber feet to minimize external vibration or mounted into 1U of an EIA-standard 19-inch rack using the included brackets and screws. The detachable C14 to C13 power cord connects to a protected UPS, generator or mains input AC source.

Specifications

Management features

Switch type: Managed
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 19
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Uplink ports quantity: 2

Network

Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3at, IEEE 802.3af, IEEE 802.1Q
Copper ethernet cabling technology: 1000BASE-SX, 1000BASE-LX
Auto-negotiation: Yes
MAC address auto-learning supported: Yes
