TP-Link TL-SG1218MPE Drag to turn · 8 views
TP-LinkNetwork Switches

18-Port Gigabit Easy Smart PoE Switch with 16-Port PoE+

Part # TL-SG1218MPEUPC 845973086923Warranty: Lifetime5.7 lb

  • 16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots
  • PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.*
  • Port Priority is able to guarantee the quality of sensitive application like video monitor
  • PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices
  • Intelligent power management protects the switch from overload
  • QoS ensures smooth traffic for latency sensitive applications
In stockPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Professional High Power 18-Port Gigabit Easy Smart Switch with 16-Port PoE+

01

Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

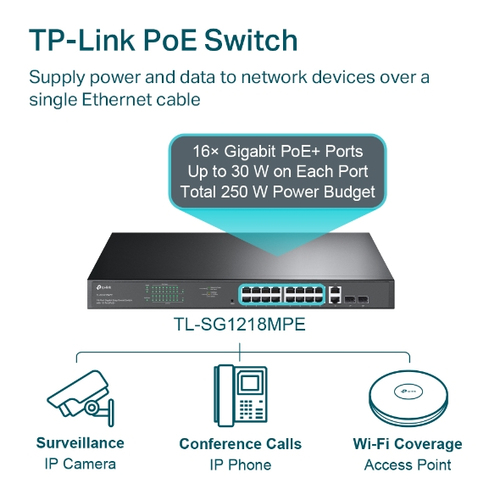

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

02

Making Management Easy

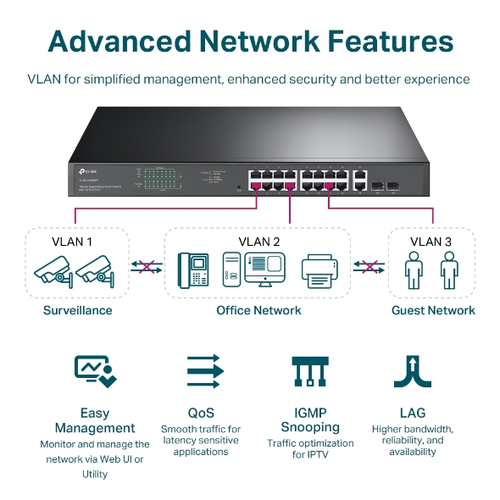

TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

03

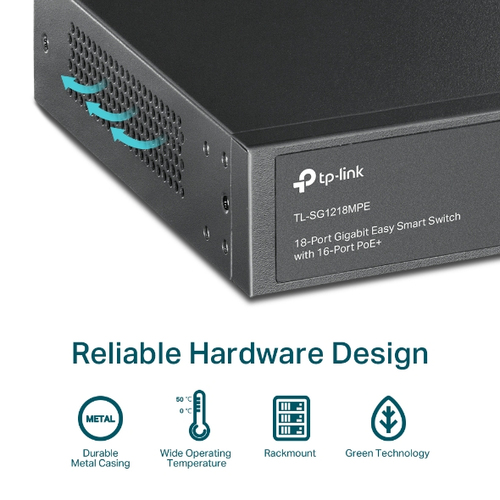

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

04

Multiple Application Scenarios

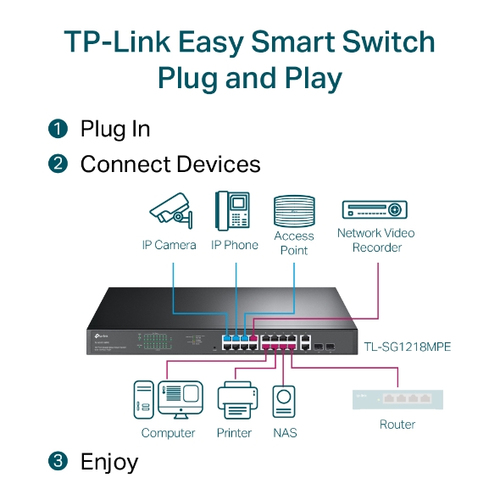

The TL-SG1218MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
18
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
18
Combo SFP ports quantity
2

Network

Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN
Number of VLANs
32

Optical fiber

Fiber ethernet cabling technology
1000BASE-X

Data transmission

Switching capacity
36 Gbit/s
Forwarding rate
26.78 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
4.1 MB

Security

IGMP snooping
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
Loop protection
Yes

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Number of fans
2 fan(s)

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
Power consumption (max)
296.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
16

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
741.15 BTU/h

Weight & dimensions

Width
440 mm
Depth
180 mm
Height
44 mm

Packaging content

Cables included
AC
User guide
Yes
Rack mount kit
Yes

Certificates

Certification
CE, FCC, RoHS

Logistics data

Harmonized System (HS) code
85176990
