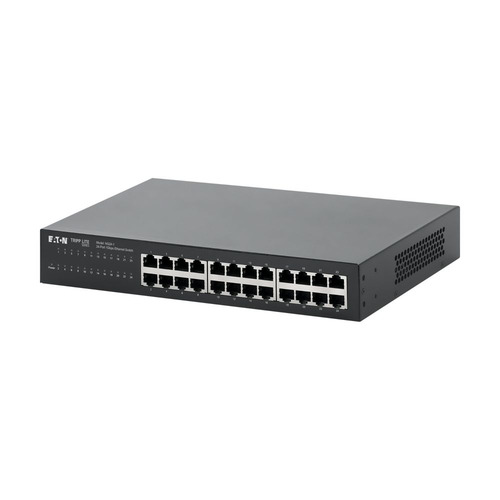

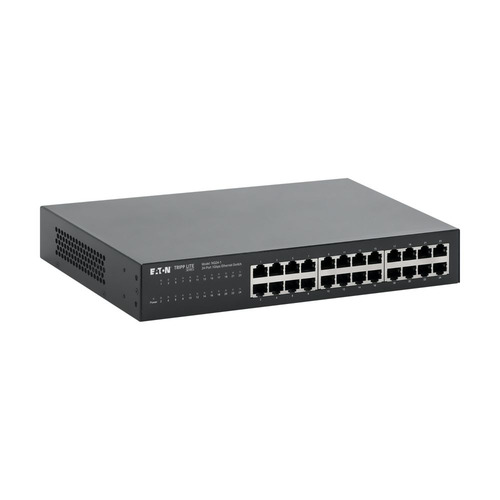

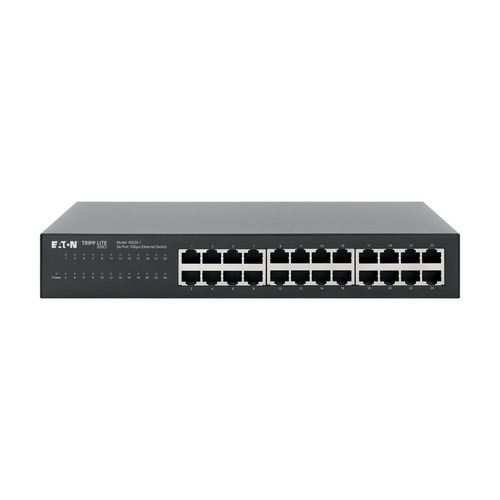

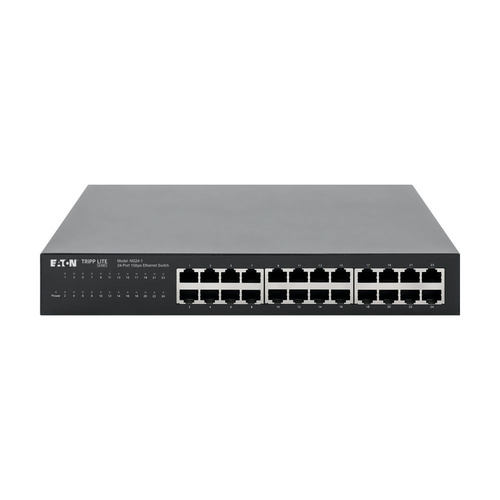

24Port 10/100/1000 Mbps 1U RackMount/Desktop Gigabit Ethernet Unmanaged

Part # NG24-1UPC 037332287236Warranty: 3 Year4.35 lb

Consumes just 10W maximum input power to help you save energy costs
Unused ports shift into low-power state without interrupting network connection
24 twisted-pair auto-negotiable RJ45 ports support auto MDI/MDIX functionality
Helps you share large bandwidth-intensive files to improve work efficiency

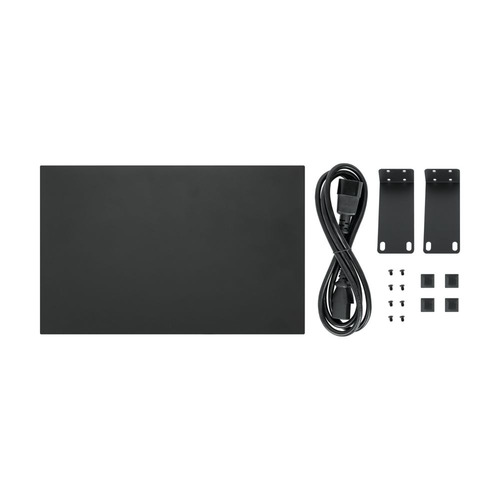

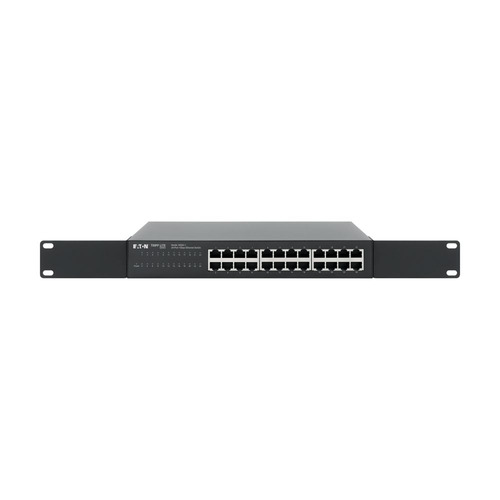

Designed for either desktop installation or 1U rack mounting with included hardware

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Unmanaged Gigabit Ethernet Switch for Small Offices and Workgroups

The energy-efficient unmanaged network switch connects up to {NumberOfPortsOther} devices, such as computers, routers, printers and servers, to a Gigabit Ethernet network and allows them to communicate with each other. It’s recommended for your small office or data center, workgroup or creative production environment. It helps you share large bandwidth-intensive files, such as CAD drawings and videos, at {NetworkCompatibility} speeds, improving efficiency and cutting costly downtime.

Maximum Network Functionality

This unmanaged switch features {NumberOfPortsOther} twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable {NetworkCompatibility} and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex) and back pressure (half duplex) allow smooth transmission of large files.

Complies with IEEE Energy Efficient Ethernet Standards

The switch supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It consumes very little input power. It also meets IEEE 802.3ab, 802.3i and 802.3u standards.

Plug-and-Play Functionality for Easy Use

No configuration is required in setting up the unmanaged switch, so you can have your {NetworkCompatibility} network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The switch supports MAC address auto-learning and auto-aging for efficient routing.

Specifications

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3az, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported: Cat5, Cat5e, Cat6, Cat6a
Full duplex: Yes
Half duplex: Yes
Auto-negotiation: Yes
