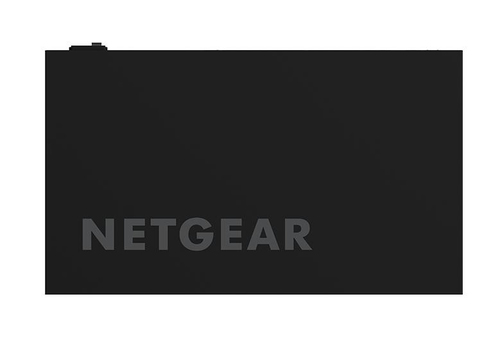

GSM4230P Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
- Pre-configured for out-of-the-box use
- Video profiles built-in
- Dedicated AV web-based GUI interface
- Unique Automatic Configuration
- Profiles for common audio protocols
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Pre-configured for out-of-the-box use
NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Multi-switch audio or single-switch video deployments
24x1G PoE+ with 300W PoE budget with 2x1G additional ports and 4xSFP 1G fiber uplinks
Layer 2/Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models
Control methods abound
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
Standard network features
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2/L3/L4
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 26
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- SFP module slots quantity
- 4
- Console port
- RJ-45/USB Type-C
Network
- Networking standards
- IEEE 802.3af, IEEE 802.3bt
- Spanning tree protocol
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Private VLAN
- Number of VLANs
- 4000
Data transmission
- Switching capacity
- 60 Gbit/s
- Throughput
- 44.64 Mpps
- MAC address table
- 16000 entries
- Latency (1 Gbps)
- 2.15 µs
- Jumbo frames support
- Yes
- Jumbo frames
- 12000
- Packet buffer memory
- 16 MB
Security
- DHCP features
- DHCP relay, DHCP server, DHCPv6 server
- IGMP snooping
- Yes
Multicast features
- Multicast support
- Yes
- IPv4 multicast entries
- 512
- IPv6 multicast entries
- 128
Protocols
- Management protocols
- Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+
Design
- Rack mounting
- Yes
- Stackable
- No
- Form factor
- 1U
- Product colour
- Black
- LED indicators
- Yes
- Number of fans
- 0 fan(s)
Performance
- Noise level
- 57 dB
- Fanless
- Yes
Power
- Power source
- PoE
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Total Power over Ethernet (PoE) budget
- 300 W
Weight & dimensions
- Width
- 440 mm
- Depth
- 257 mm
- Height
- 43.2 mm
- Weight
- 4.3 kg
Packaging content
- Cables included
- AC, LAN (RJ-45), USB Type-C
- User guide
- Yes
