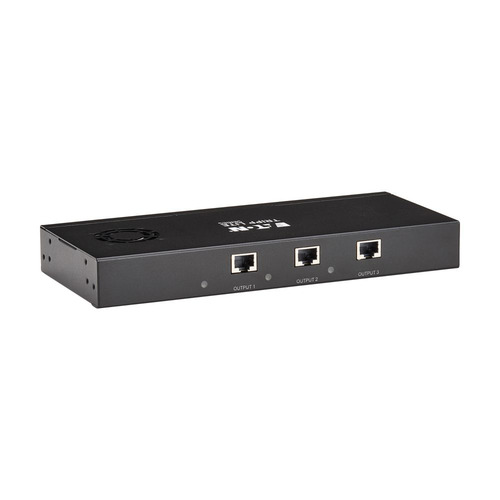

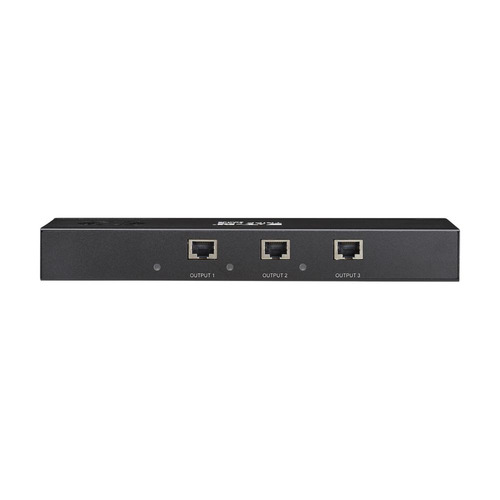

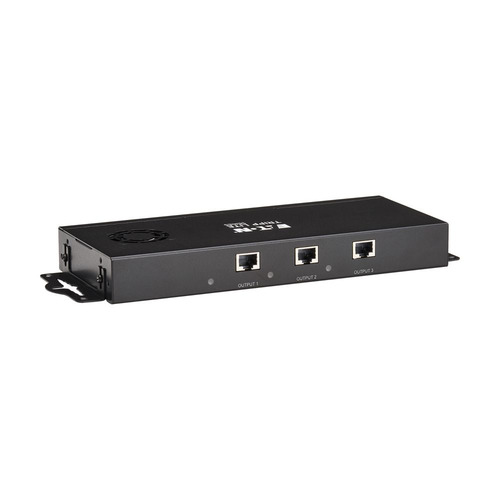

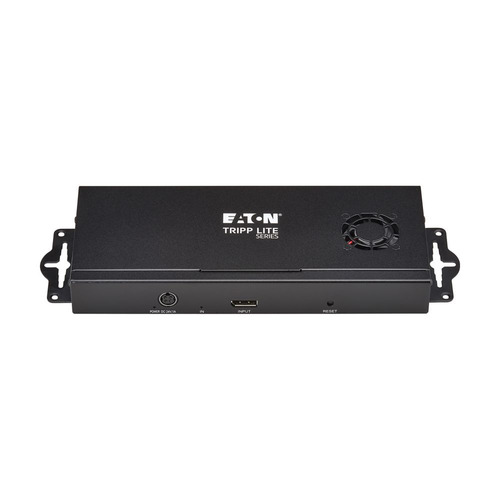

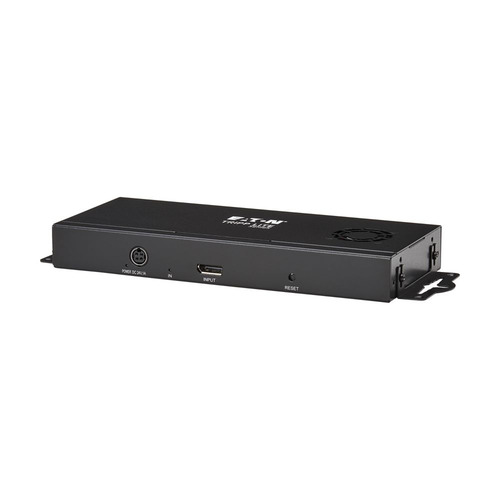

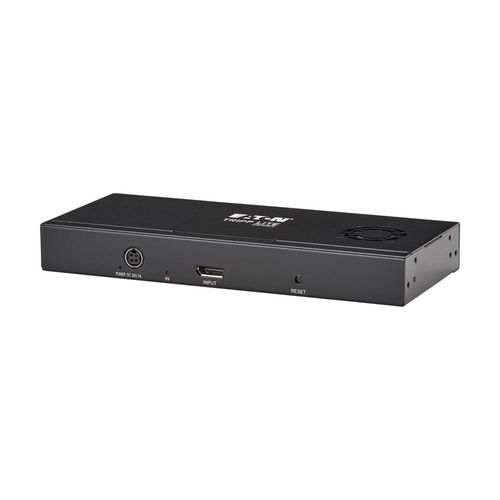

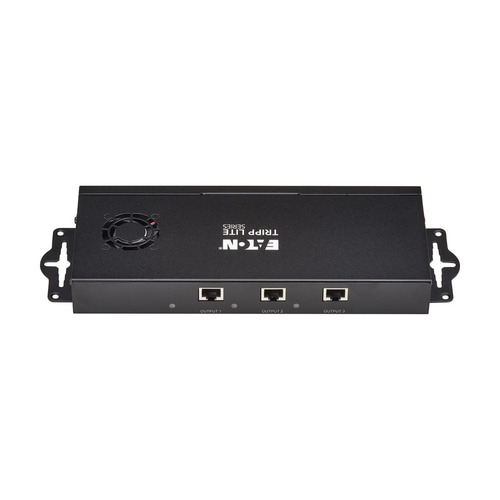

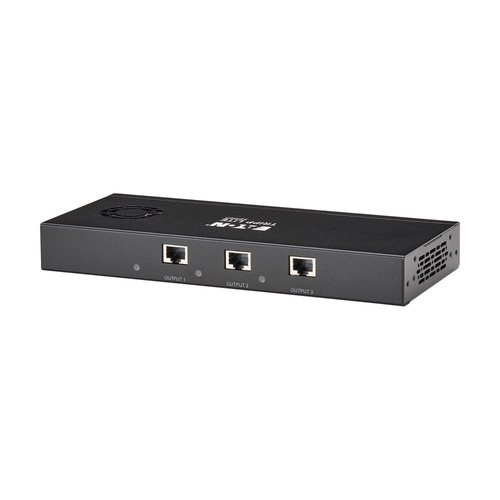

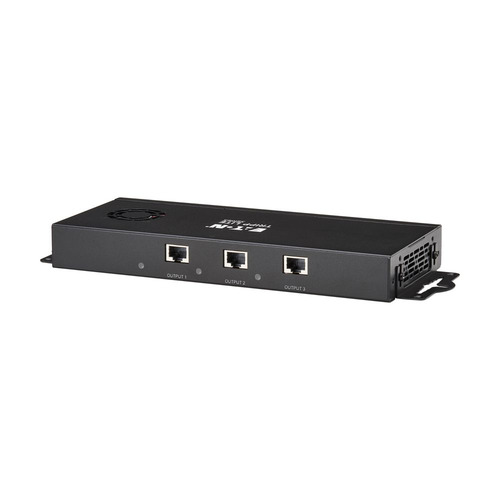

3Port DisplayPort to HDMI MultiMonitor Splitter/Extender Kit, MST Hub, 8K/4K 60 Hz, DP 1.4, Up to 230 ft

Part # B156E-003-H8K-KUPC 037332287403Warranty: 1-year limited4.85 lb

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Supports UHD resolutions up to 8K @ 60 Hz (4:4:4) in video wall mode
Power over Cable (PoC) technology provides power to the receivers via Cat6 cable
Transmits in mirrored, extended and video wall modes for advanced digital signage
Ready for plug-and-play operation with no additional software or drivers needed

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

3Port DisplayPort to HDMI MultiMonitor Splitter/Extender Kit, MST Hub, 8K/4K 60 Hz, DP 1.4, Up to 230 ft. 70 m, TAA

Specifications

Ports & interfaces

Video port type: DisplayPort
Video out: HDMI
Video ports quantity: 3

Features

Housing material: Acrylonitrile butadiene styrene (ABS)
Maximum resolution: 7680 x 2160 pixels
Maximum operating distance: 70 m
Colour depth: 12 bit
HDCP version: 2.3
Cable length: 1.52 m
HDCP: Yes
Connector contacts plating: Gold
Plug and Play: Yes
LED indicators: Signal, Power
Number of displays supported: 2

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 26.5 W

Weight & dimensions

Width: 235 mm
Depth: 100 mm
Height: 29.7 mm
Weight: 220 g

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

AC adapter included: Yes
Included power plug types: AU, UK, NA

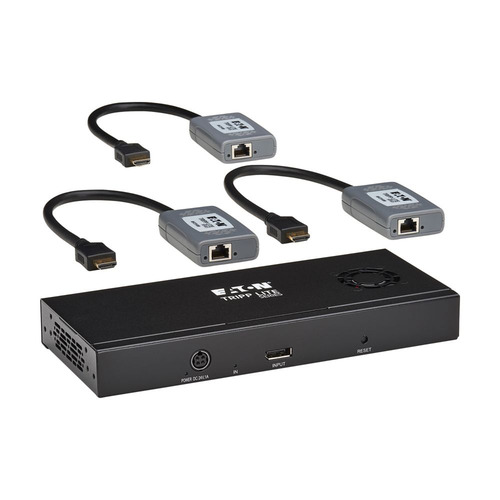

Packaging content: External power supply (Input: 100–240V, 50/60 Hz, 0.6A; Output: 24V 1A) with 4.5 ft. cord (4) International plug adapters (North America, Europe, U.K., Australia) (3) HDMI pigtail receivers B156E-003-H8K-K 3-Port DisplayPort to HDMI Multi-Monitor Splitter Mounting hardware Installation guide
