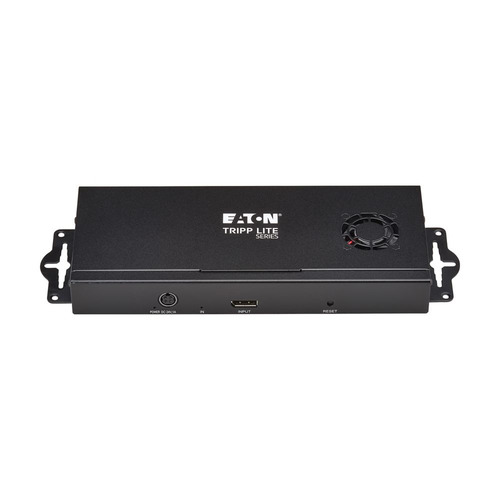

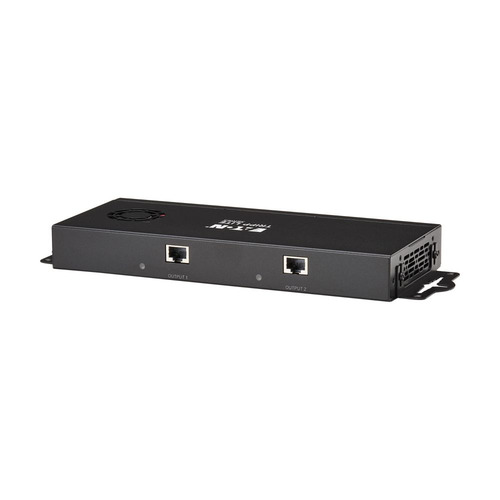

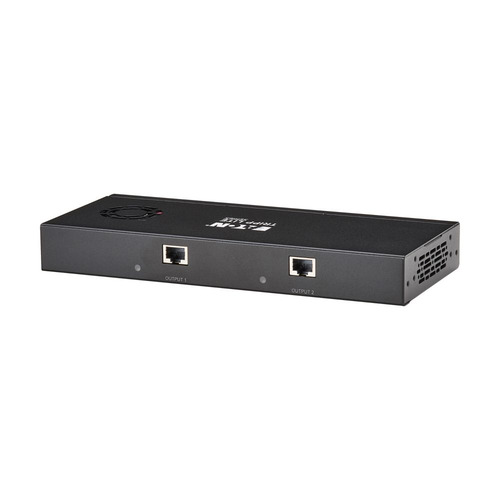

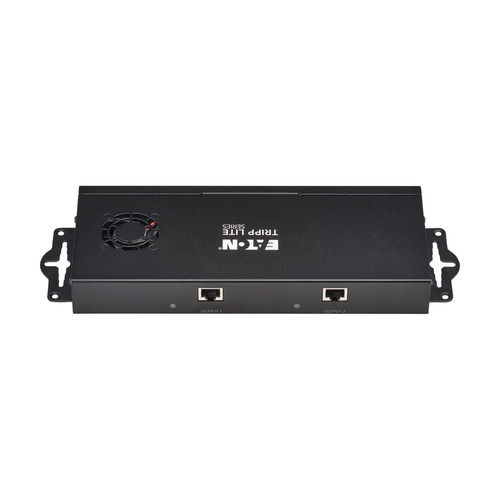

2Port DisplayPort to DisplayPort Splitter/Extender Kit over Cat6, MST Hub, 8K/4K 60 Hz, DP 1.4, Up to 230 ft

Part # B156E-002-8K-KUPC 037332287410Warranty: 1-year limited4.85 lb

Supports UHD resolutions up to 8K @ 60 Hz (4:4:4) in video wall mode
Transmits in mirrored, extended and video wall modes for advanced digital signage
Power over Cable (PoC) technology provides power to the receivers via Cat6 cable
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Ready for plug-and-play operation with no additional software or drivers needed

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

2Port DisplayPort to DisplayPort Splitter/Extender Kit over Cat6, MST Hub, 8K/4K 60 Hz, DP 1.4, Up to 230 ft. 70 m, TAA

Specifications

Ports & interfaces

Video port type: DisplayPort
Video out: DisplayPort
Video ports quantity: 2

Features

Housing material: Acrylonitrile butadiene styrene (ABS)
Maximum resolution: 7680 x 2160 pixels
3D: Yes
Maximum operating distance: 70 m
Colour depth: 12 bit
Maximum refresh rate: 60 Hz
HDCP version: 1.4
High Dynamic Range (HDR) supported: Yes
HDCP: Yes
Connector contacts plating: Nickel/Gold
LED indicators: Signal, Power
Number of displays supported: 2

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 26.5 W

Weight & dimensions

Width: 235 mm
Depth: 100 mm
Height: 29.7 mm
Weight: 220 g

Packaging data

Package type: Box

Packaging content

AC adapter included: Yes

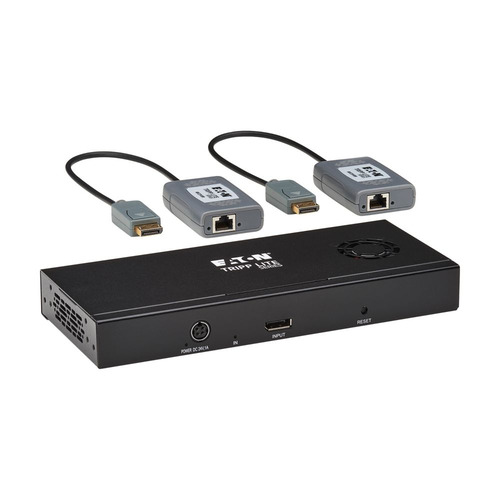

Packaging content: Mounting hardware B156E-002-8K-K 2-Port DisplayPort to DisplayPort Multi-Monitor Splitter (4) International plug adapters (North America, Europe, U.K., Australia) (2) DisplayPort pigtail receivers Installation guide External power supply (Input: 100–240V, 50/60 Hz, 0.6A; Output: 24V 1A) with 4.5 ft. cord
