StarTech.com WALLSHELF8U Drag to turn · 13 views
StarTech.comRack Cabinets

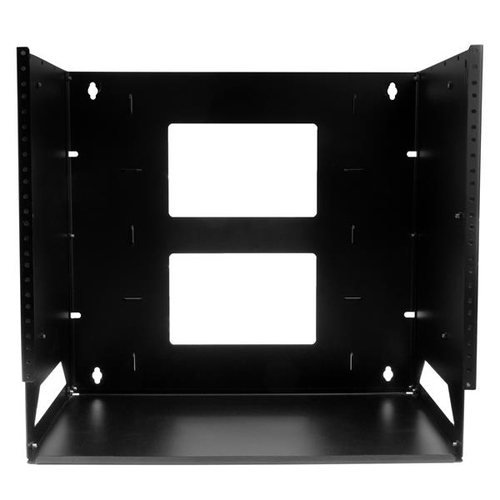

2-Post 8U Open Frame Wall Mount Network Rack with Built-in Shelf, Wall Mount Data Rack with

Part # WALLSHELF8UUPC 065030866439Warranty: Lifetime24.75 lb

  • 2-Post 8U wall-mount server rack features an adjustable mounting depth of 12" to 18" (30cm to 45cm)
  • Wall mount network rack features 10-32 tapped rails so you can mount your IT equipment directly to the rail
  • Wall mounting holes positioned 16" (40cm) apart
  • Open post wall rack is a sturdy and safe mounting solution for your AV / Data devices
  • Wall mounting feature allows you to free up desk or floor space
  • Data rack is ideal for your SoHo environment
In stockPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Mount your server, network and telecom devices to the wall, while storing your non-rackmountable equipment on the built-in shelf

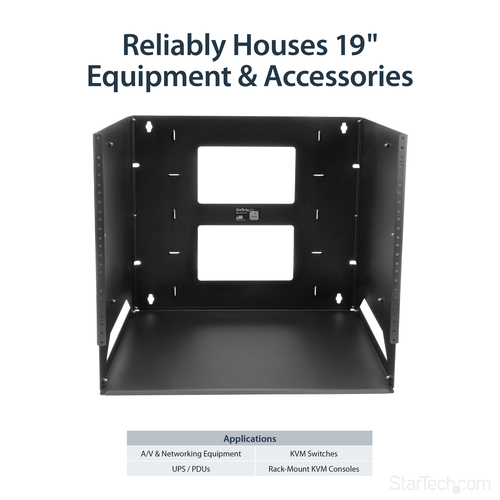

This wall-mount rack provides 8U of space for mounting your servers or A/V equipment to a wall. The rack also has a built-in shelf to create a sturdy surface for storing equipment that is not rack-mountable.

01

Customize your setup

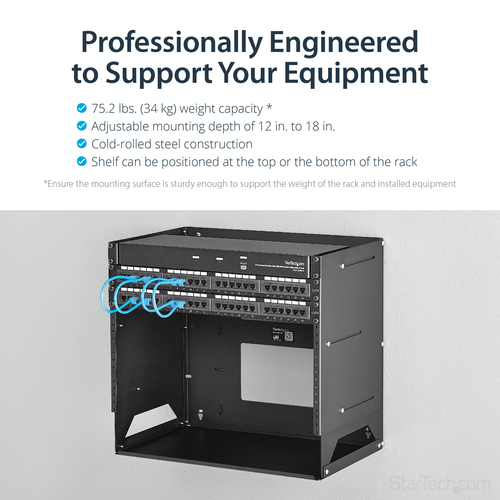

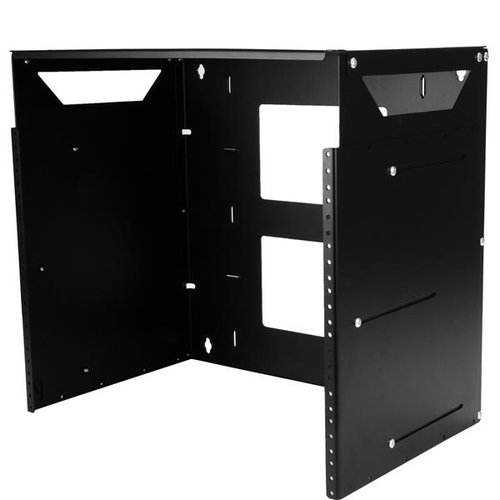

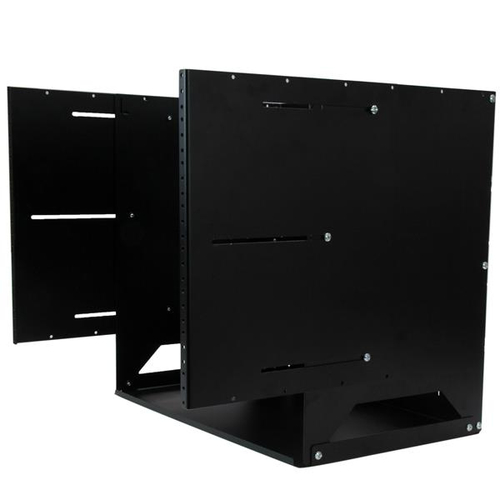

The wall-mount bracket features an adjustable mounting depth of 12 inches to 18 inches as well as a dual-position 12 in. shelf that can be at either the top or the bottom depending on rack's positioning. These two features allow you to customize both depth and layout to best fit your equipment and cables, ensuring that the rack suits your space.

02

Make the most of your available space

The 8U rack wall mounting feature allows you to free up desk or floor space -- perfect for your SoHo (small office, home office) environment, server room or any other location with limited space available.

03

Ensure a secure and hassle-free installation

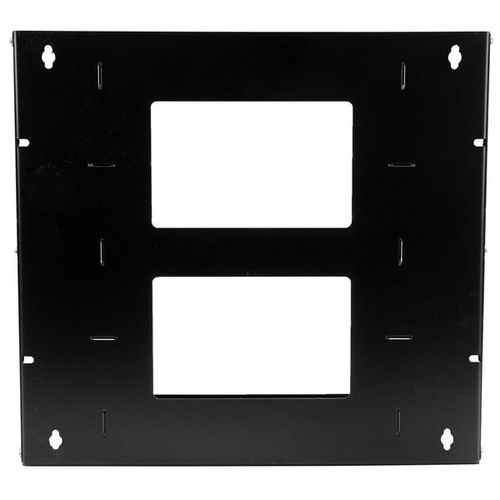

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment and with the wall mounting holes positioned 16" apart, it exactly matches standard drywall construction framework, to ensure simple and secure wall-stud anchoring.

For hassle-free equipment installation, the rack features 10-32 tapped rails, so you can mount your equipment directly to the rail and avoid the hassle of using cage nuts.

04

Save money, with a cost-effective, compact shipping package

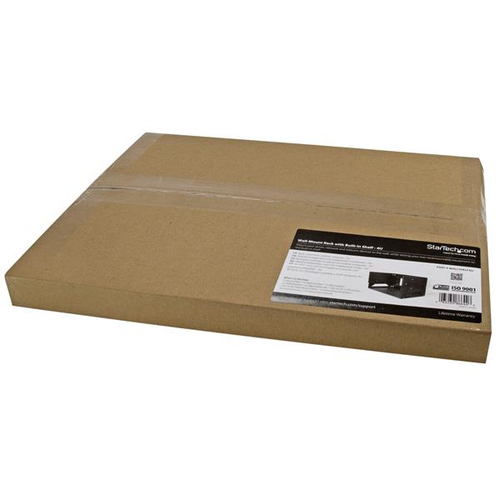

The wall-mount rack comes in a flat-packed box to reduce shipping volume, which significantly reduces your costs in shipping while also providing greater protection than offered by pre-assembled racks. Packaged efficiently, you can easily store and transport the rack for deployment at a later date or in a different location than where it's received.

The WALLSHELF8U is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

Features

Rack capacity
8U
Type
Wall mounted rack
Maximum weight capacity
34 kg
Product colour
Black
Material
Steel
Frame type
Open
Product design
2-post
Adjustable mounting rails
No
Number of fans
0 fan(s)
Cable management
No
Mounting hole shape
Round
Castor wheels
No
Certification
RoHS, TAA

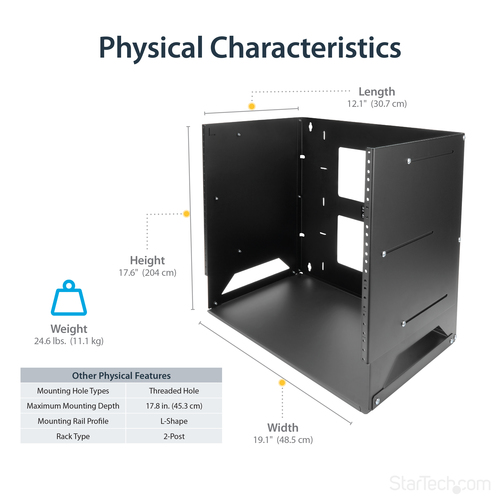

Weight & dimensions

Width
485 mm
Depth
307 mm
Height
446 mm
Inner width
47.5 cm
Inner depth
45.7 cm
Weight
11.1 kg
Mounting depth (min)
45.3 cm

Packaging data

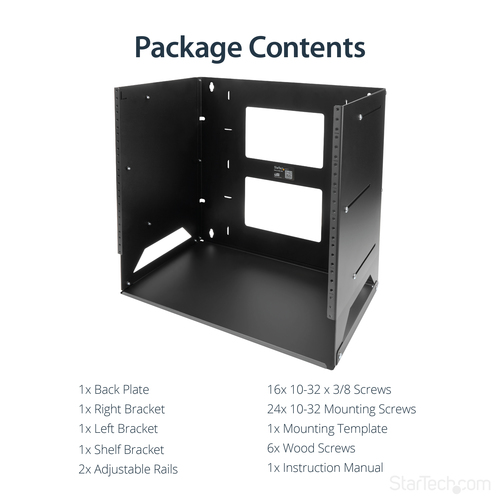

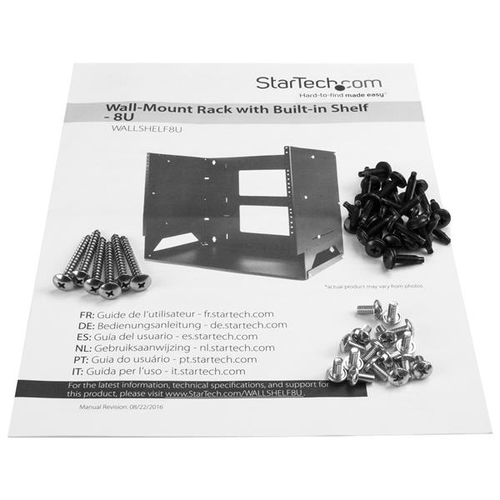

Nuts included
Yes
Screws included
Yes
Number of screws
46
Manual
Yes
Package width
560 mm
Package depth
512 mm
Package height
50 mm
Package weight
12 kg

Logistics data

Harmonized System (HS) code
85381000

Other features

Compliance industry standards
EIA-310-D, EIA RS310-C
