12-Outlet Rackmount PDU, 1U Server Power Strip with Wide-Spaced Right-Angle Ports, Mounted Power

Part # 1215B8H-RACK-PDU-RAUPC 065030920940Warranty: 2 Years4.5 lb

1U rack-mounted PDU unit w/ 12x NEMA 5-15R right-angle electrical outlets
6x front 6x rear
125V max 15A
Built-in 8ft NEMA 5-15P power cord
2in between outlets prevents blocked ports
Power supply for bulky plugs in high-density IT server/AV setups

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

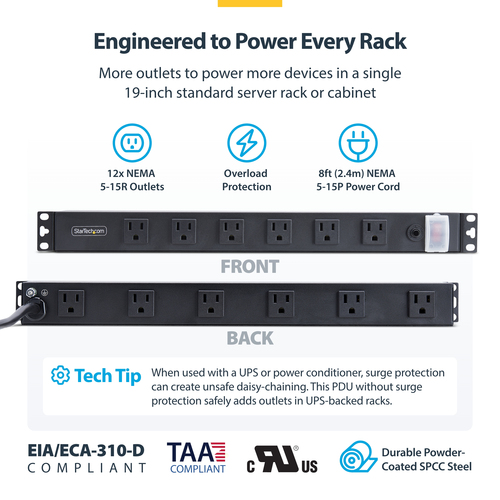

Add twelve power outlets to a 19in server rack or cabinet

Deliver consistent power to critical equipment in server rooms, AV racks, and test benches. This 1U rackmount PDU features 12 NEMA 5-15 right-angle outlets with generous spacing for oversized adapters, a built-in circuit breaker, and versatile mounting options, making it a dependable power backbone for critical deployments.

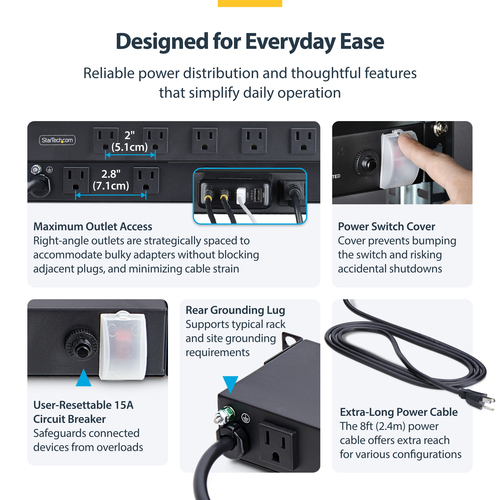

Maximize Connectivity in High-Density Racks

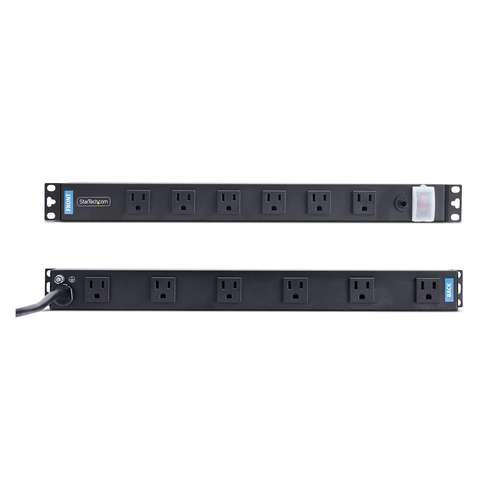

Designed for dense IT and AV environments this unit powers up to 12 devices through 6x front and 6x rear-facing NEMA 5-15 outlets. The right-angle ports create a 2-inch (5.1cm) spacing between outlets letting you accommodate oversized plugs without blocking neighboring outlets.

Built-in circuit Protection for Critical Hardware

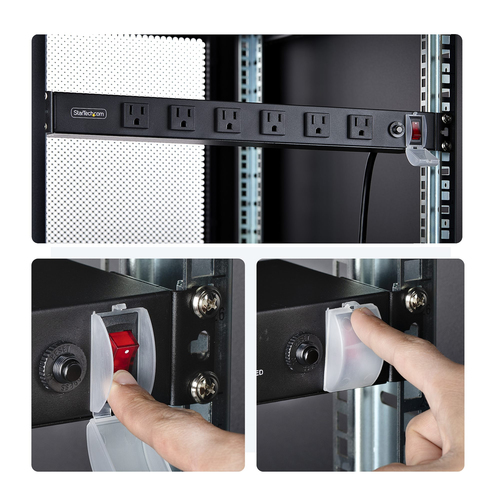

The integrated 15A circuit breaker helps protect connected equipment by automatically cutting power if the total current draw exceeds safe operating limits. The illuminated power switch makes it easy to verify power status at-a-glance, even in dimly lit environments, and has a protective cover to help prevent accidental shutdowns during day-to-day tasks around the connected equipment.

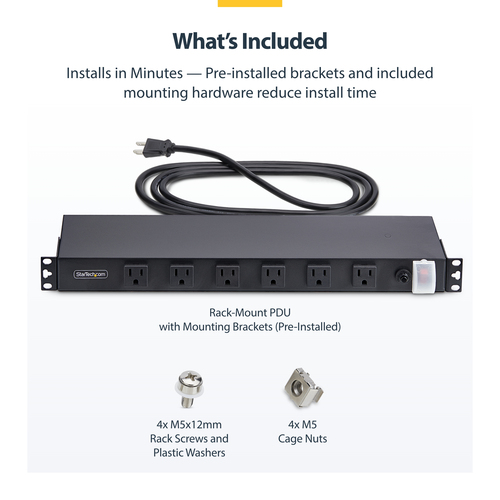

Flexible Mounting

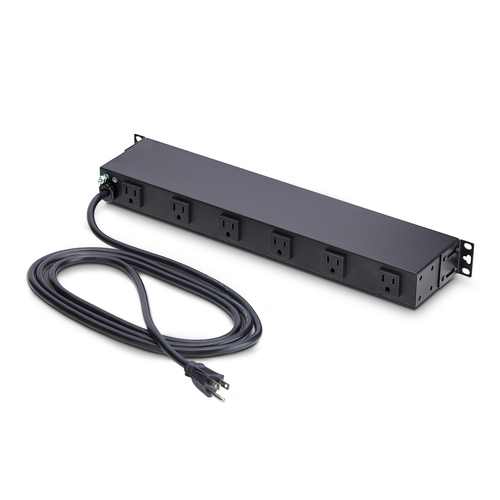

Power delivery unit is TAA-compliant and includes 4-way mounting brackets that provide flexibility for horizontal or vertical mounting. The PDU is compatible with standard 19" EIA-310 racks that are at least 4in (10.1cm) deep and is constructed from durable, powder-coated SPCC steel for long-term reliability. Additionally, the built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.
