12U 4-Post Server Rack, 19in Open Frame Rack with 40in (101cm) Mounting Depth and 1200lb (544kg)

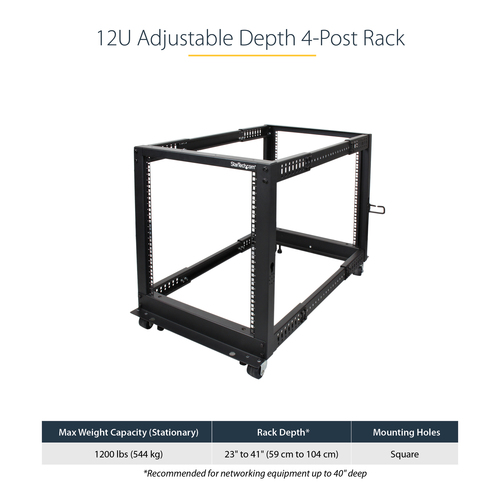

- 4-Post 12U open frame server rack for data/IT equipment

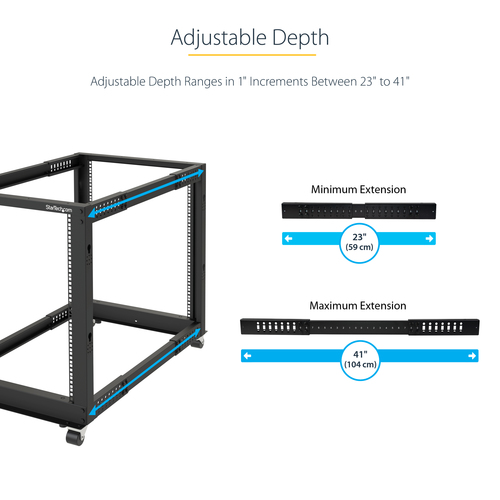

- adjust. mounting depth 22-40in (56,0-101,7cm)
- Mobile network rack w/ assembly instructions
- Flat pack shipping/packaging to avoid damage and facilitate installations
- 25in (64cm) of height: 1200lb (544kg) capacity
- 19" open frame rack 3 install options: casters, levelling feet, or base-plate to secure to the floor
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Computer Equipment Rack | 22" to 40" Adjustable Mounting Depth | Casters | Leveling Feet | Cable Management Hooks

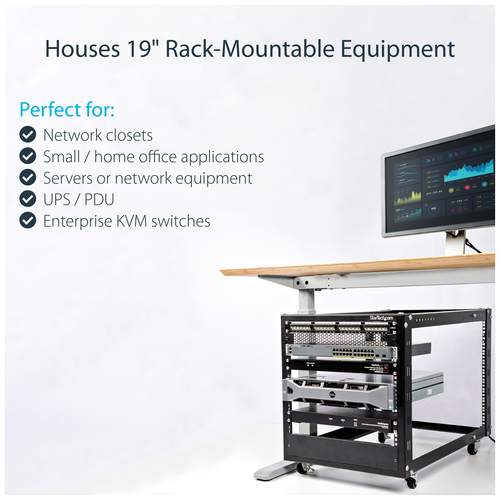

The 4POSTRACK12U 12U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.
Designed with ease of use in mind, this 12U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.
This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 40494) for a universal design that's compatible with most rack equipment.
For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.
Specifications
Features
- Rack capacity
- 12U
- Type
- Freestanding rack
- Maximum weight capacity
- 544 kg
- Product colour
- Black
- Material
- Steel
- Frame type
- Open
- Product design
- 4-post
- Adjustable mounting rails
- Yes
- Number of fans
- 0 fan(s)
- Cable management
- Yes
- Mounting hole shape
- Square
- Castor wheels
- Yes
- Certification
- CE
Weight & dimensions
- Width
- 604 mm
- Depth
- 1000 mm
- Height
- 638 mm
- Weight
- 22.7 kg
- Mounting depth (min)
- 56 cm
- Mounting depth (max)
- 100 cm
Packaging data

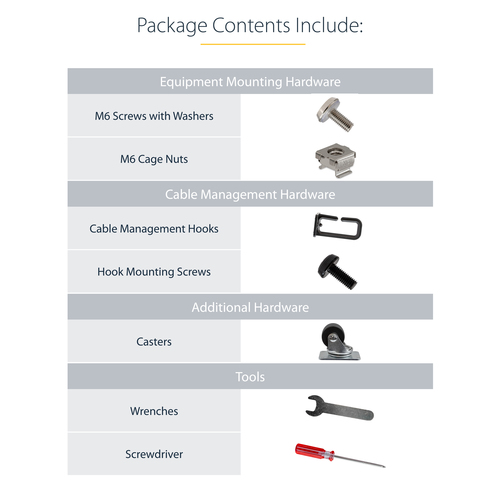

- Nuts included
- Yes
- Number of grounding wires included
- 4
- Number of nuts
- 40
- Screws included
- Yes
- Number of screws
- 44
- Number of leveling feets included
- 4 pc(s)
- Number of cable management hooks included
- 4 pc(s)
- Number of bolts
- 48
- Number of washers included
- 88
- Package width
- 664 mm
- Package depth
- 361 mm
- Package height
- 153 mm
- Package weight
- 26.3 kg
Technical details
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 85381000
- Master (outer) case width
- 750 mm
- Master (outer) case length
- 1340 mm
- Master (outer) case height
- 485 mm
- Products per master (outer) case
- 12 pc(s)
Other features
- Compliance industry standards
- EIA/ECA-310-E
