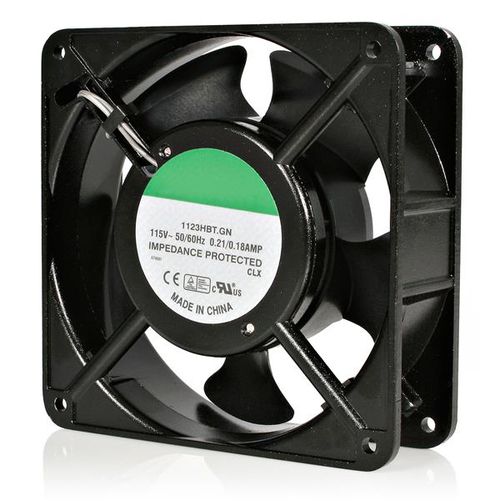

120mm Axial Rack Muffin Fan for Server Cabinet, 115V, AC Cooling, Low Noise & Quiet PC Computer Case Fan
- Increase airflow in your server rack / cabinet to extend equipment life
- 4.7in / 120mm axial rack fan provides low noise (45.7 dbA)
- Computer and server rack fan has a standard AC power connection with included power cord
- Built with a solid metal frame, this fan is 120mm x 38mm and delivers a 107 CFM airflow rate for optimal performance
- Operating temperature 14°F to 158°F (-10°C to 70°C)
- 115V muffin fan comes with power cord, screws, nuts and washers so you’re ready for installation
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Increase airflow in your server rack or cabinet to extend equipment life
The ACFANKIT12 12cm AC Fan Kit for Server Racks and Cabinets can be installed in StarTech.com's Wall mountable Server Rack Cabinets (RK12WALHM, RK1219WALL and RK1219WALH), as well as many full sized racks from StarTech.com and other manufacturers.
This powerful, yet quiet ball bearing fan will help increase airflow and reduce heat build-up within the cabinet. Capable of moving 107 CFM of air through the rack, this AC powered fan kit is sure to prolong the life of your rackmount equipment.
Specifications
Performance
- Type
- Fan
- Noise level (high speed)
- 47.5 dB
- Operating temperature (T-T)
- -10 - 70 °C
Design
- Product colour
- Black
- Material
- Aluminium
Weight & dimensions
- Weight
- 550 g
- Package width
- 195 mm
- Package depth
- 148 mm
- Package height
- 48 mm
Technical details
- Bearing technology
- Ball bearing
Other features
- Dimensions (WxDxH)
- 38 x 120 x 120 mm
- Airflow
- 107CFM
- Electrical input connection
- 115VAC
- Rotational speed
- 3050 RPM
Logistics data
- Master (outer) case width
- 215 mm
- Master (outer) case length
- 427 mm
- Master (outer) case height
- 295 mm
- Products per master (outer) case
- 20 pc(s)
