Home/Catalogue/StarTech.com/WALLMOUNT6
Drag to turn · 14 views
StarTech.comRack Cabinets
6U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow
- 6U wall mount rack (19 inch wide) has a max. mounting depth of 14" [35 cm] and a max. weight capacity of 44lbs [20kg]

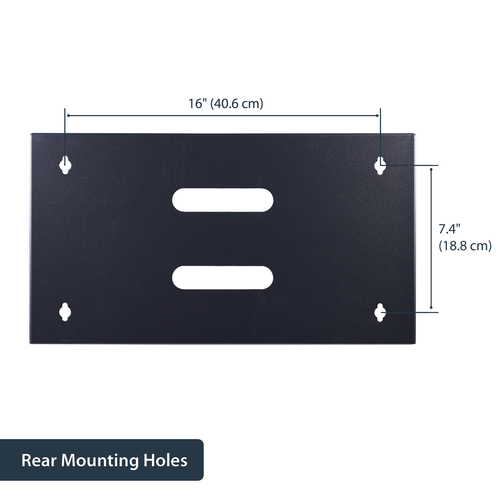

- Wall mounted patch panel bracket for networking equipment has pre-drilled holes 16" apart for standard drywall framework

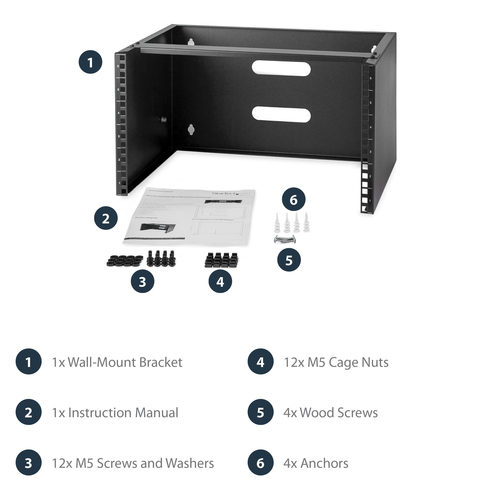

- Incl. anchors/screws to install bracket to the wall | Incl. equipment mounting hardware

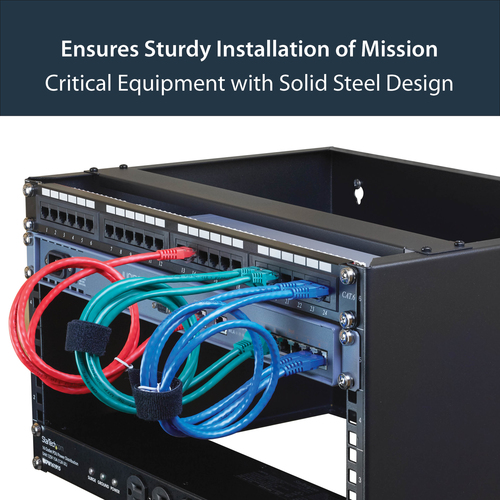

- Durable wallmount rack made of cold rolled steel
- Rear cable routing access to organize cables in network closet/server room
- StarTech.com Lifetime Warranty
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

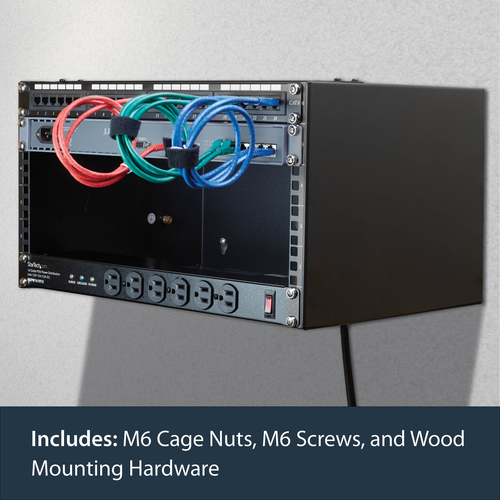

Mount networking equipment and shallow rackmount devices with this 6U wall-mountable rack
The WALLMOUNT6 6U 13.78 in. Deep Wall Mounting Bracket for Patch Panel delivers a sturdy and dependable equipment storage option, allowing you to wallmount equipment for a more efficient and accessible operating environment.
The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in equipment to a wall.
Backed by a StarTech.com Lifetime warranty.
Specifications
Features
- Rack capacity
- 6U
- Type
- Wall mounted rack
- Maximum weight capacity
- 20 kg
- Product colour
- Black
- Material
- Steel
- Frame type
- Open
- Product design
- 2-post
- Adjustable mounting rails
- No
- Number of fans
- 0 fan(s)
- Cable management
- No
- Mounting hole shape
- Square
- Castor wheels
- No
Weight & dimensions
- Width
- 498 mm
- Depth
- 350 mm
- Height
- 273 mm
- Weight
- 4.5 kg
- Mounting depth (max)
- 35 cm
Packaging data
- Nuts included
- Yes
- Number of nuts
- 12
- Screws included
- Yes
- Number of screws
- 12
- Manual
- Yes
- Package width
- 543 mm
- Package depth
- 444 mm
- Package height
- 312 mm
- Package weight
- 6.3 kg
Technical details
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 85381000
- Master (outer) case width
- 390 mm
- Master (outer) case length
- 535 mm
- Master (outer) case height
- 325 mm
- Products per master (outer) case
- 1 pc(s)
Other features
- Compliance industry standards
- EIA/ECA-310-E
