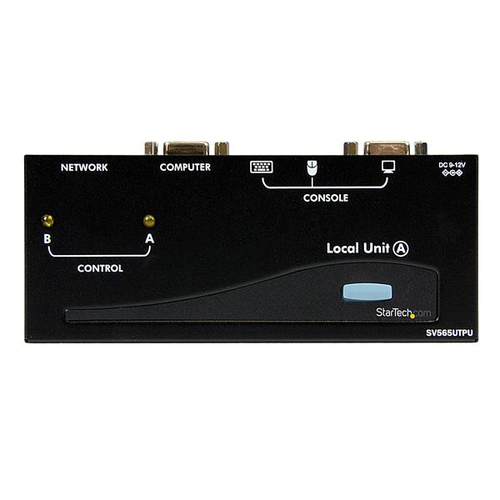

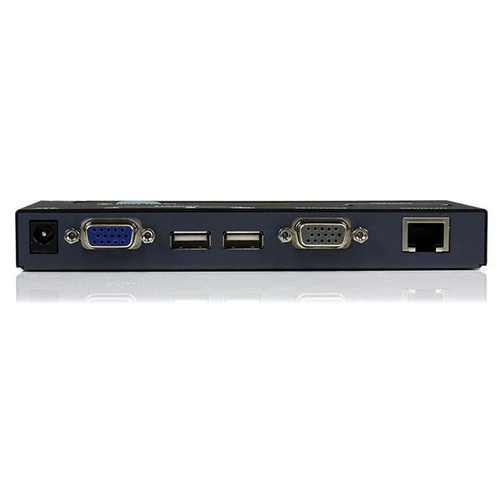

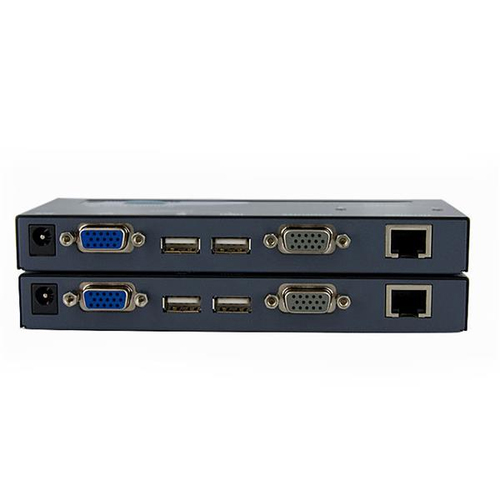

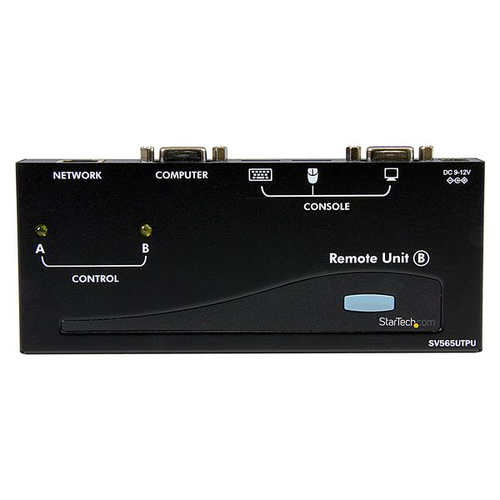

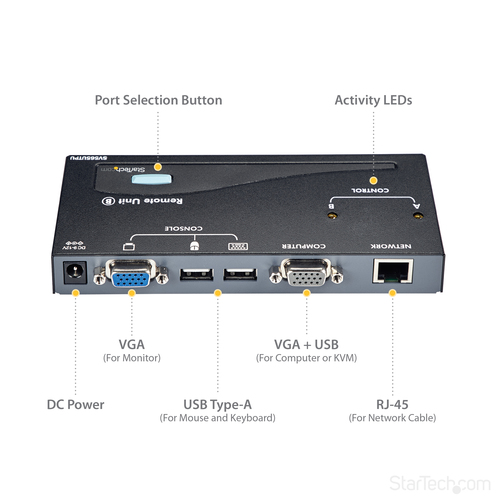

USB VGA KVM Console Extender over CAT5 UTP (500 ft) - TAA
- Operate a USB and VGA KVM or PC up to 500ft away as if it were right in front of you
- KVM Extender
- KVM Extender CAT5
- Console Extender
- USB to VGA KVM Console Extender
- USB VGA KVM Extender Cat 5 UTP
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Operate a USB & VGA KVM or PC up to 500ft away as if it were right in front of you
The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Specifications
Ports & interfaces
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA
Performance
- Maximum resolution
- 1024 x 768 pixels
Weight & dimensions
- Weight
- 299 g
Packaging data
- Package width
- 302 mm
- Package depth
- 247 mm
- Package height
- 88 mm
- Package weight
- 1.7 kg
Other features
- Connectivity technology
- Wired
- Dimensions (WxDxH)
- 155 x 75 x 20 mm
Logistics data
- Master (outer) case width
- 514 mm
- Master (outer) case length
- 323 mm
- Master (outer) case height
- 302 mm
- Products per master (outer) case
- 6 pc(s)
Downloads
