USB C Multiport Adapter - USB-C to HDMI or Mini DisplayPort 4K 60Hz, 100W Power Delivery

Part # DKT31CMDPHPDUPC 065030892025Warranty: 3 Years0.3 lb

USB-C multiport adapter dongle w/ 4K 60Hz HDMI 2.0 or Mini DisplayPort video (w/ DP 1.4 Alt Mode) | 4K 30Hz w/ DP 1.2
10Gbps USB Hub: 3x USB-A (1x BC 1.2) + 2x USBC (1x PD + 1x data)
100W Power Delivery 3.0 Passthrough (15W for adapter/up to 85W charging) w/ USB Type-C laptop power adapter or bus power
Travel USB C mini dock w/ 12" long cable | Ideal for iPad Pro/Surface/Macbook Pro/Air (Intel processor + M1 chip)
Works w/ USB4 and Thunderbolt 3 + 4
Win/mac/Chrome/iPadOS/Android

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

USB-C Multiport Adapter | HDMI & Mini DisplayPort Video | 100W PD Pass-Through | 4-Port USB Hub

This USB-C multiport adapter with DP 1.4 Alt-Mode supporting 4K 60Hz HDMI® and mini DisplayPort turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI or mDP video output, three USB 3.2 Gen 2 Type-A (10Gbps) ports including one BC 1.2 charge port; and one USB-C port (10Gbps), all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.

Maximum Resolution

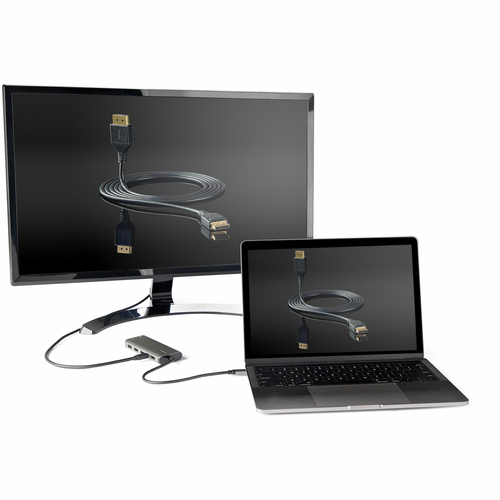

The portable docking station connects your laptop to a 4K 60Hz HDMI or mini DisplayPort monitor (4096 x 2160p) to create a powerful workstation. Can be used with an mDp to DP video adapter to connect your DP monitor and can also connect to an ultrawide monitor.

DP Alt Mode Required

Maximum Resolution

DP 1.2 Alternate Mode

Up to 4K 30Hz

DP 1.4 Alternate Mode

Up to 4K 60Hz

Connect Your Devices

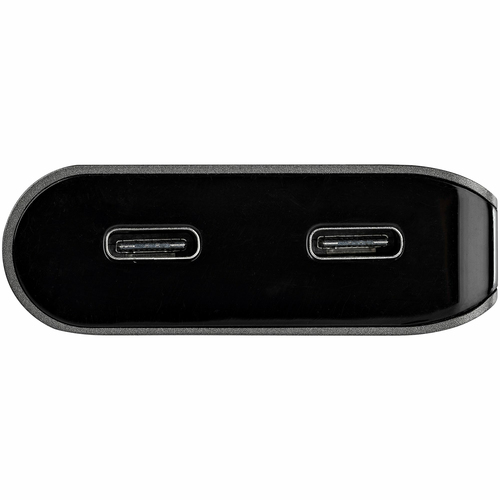

The USB-C to USB 3.1 Gen 2 hub gives you one USB-C port and three USB-A ports to connect your legacy USB devices.

Charge Your Laptop and Peripheral

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

The DKT31CMDPHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
HDMI version: 2.0b
Mini DisplayPorts quantity: 1
DisplayPort version: 1.4
Microphone in: No
DC-in jack: No

Network

Ethernet LAN: No

Performance

Card reader integrated: No
Data transfer rate: 10 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Product colour: Black, Silver
Certification: CE, FCC, RoHS

Power

Power consumption (typical): 15 W
Wireless charging: No

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Linux operating systems supported: Ubuntu 18.04 LTS, Ubuntu 20.04 LTS
Mobile operating systems supported: Android, iPadOS
Other operating systems supported: ChromeOS
