6.6ft (2m) Active Thunderbolt 4 Cable, 40Gbps, 100W Power Delivery, 4K/8K Video, Intel-Certified
- 6.6ft (2m) Active Thunderbolt 4 cable with built-in chipset delivers 40 Gbps and 100W power
- Integrated active chipset maintains signal integrity
- Connect to TB4 and USB-C devices over longer distances such as laptops/docking stations/UHD monitors/external storage
- Robust connector strain reliefs for durability
- PVC Jacket w/ Braided Alloy Shield protects from EMI
- Thunderbolt Certified
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Connect Thunderbolt 4-certified devices at speeds of up to 40Gbps, using this Intel-certified cable
The 6.6ft (2m) Active Thunderbolt™ 4 cable enables full Thunderbolt™ 4 capabilities and outperforms passive cables beyond 3.3ft (1m) length. An active integrated chipset minimizes signal degradation for consistent 40Gbps output at distances of up to 6.6ft (2m), while passive cables deliver limited performance beyond 3.3ft (1m) due to signal loss.

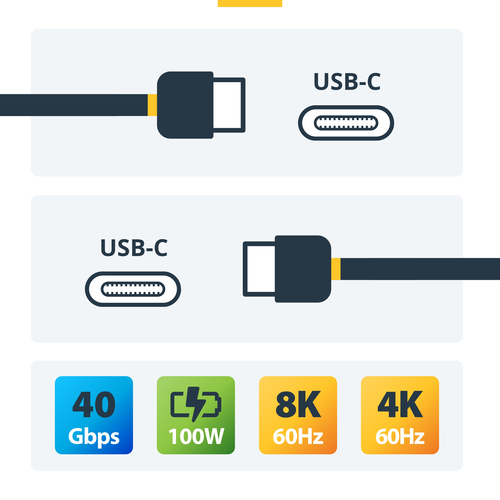

40 Gbps for Thunderbolt 4 / 3 Devices
This Active Thunderbolt 4 cable supports data transfer rates of 40 Gbps, when connected to a Thunderbolt 4, Thunderbolt 3, or USB4-compatible source and device. It is capable of transferring data four times faster than standard USB 3.2 Gen 2 (10 Gbps) cables.
USB Power Delivery 3.0
This Thunderbolt 4 cable delivers up to 100W of Power Delivery to charge a laptop or power a display, and 15W for bus-powered devices such as hard drive enclosures.
USB-C Compatible
The Thunderbolt 4 cable is compatible with all USB Type-C devices and can be used to charge and sync mobile devices. In addition, this cable can be used to connect and power USB-C laptops, such as MacBook® and Chromebook™; and USB-C peripherals such as portable hard drives and docking stations.

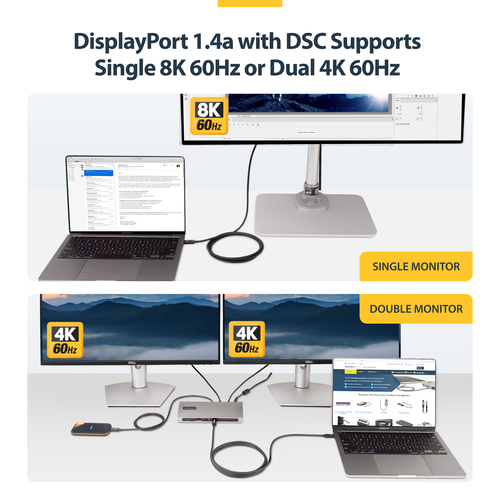

Full-8K Video
The cable supports full-8K 60Hz video and DisplayPort 1.4a, and is compatible with Display Stream Compression (DSC). Use it to connect a docking station to laptop, or a laptop to a display.
Thunderbolt Networking
The cable can be used to daisy chain up to 6 Thunderbolt 4-enabled devices, such as laptops for peer-to-peer 10GbE networking. In addition, connect two Thunderbolt 4 laptops to transfer/migrate data.
Specifications
Features
- Connector 1
- Male
- Connector 2
- Male
- Cable length
- 2 m
- Data transfer rate (max)
- 40 Gbit/s
- Product colour
- Black
- Connector contacts plating
- Nickel
- Thunderbolt version
- 4
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery up to
- 100 W
- Maximum resolution
- 7680 x 4320 pixels
- Number of displays supported
- 1
- Jacket material
- Polyvinyl chloride (PVC)
Sustainability
- Sustainability compliance
- Yes
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
- Cable diameter
- 4.7 mm
Packaging data
- Quantity per pack
- 1 pc(s)
- Package width
- 87 mm
- Package depth
- 177 mm
- Package height
- 27 mm
- Package weight
- 89 g
Logistics data
- Products per master (outer) case
- 450 pc(s)
- Master (outer) case length
- 295 mm
- Master (outer) case width
- 205 mm
- Master (outer) case height
- 450 mm
