10ft (3m) Mini DisplayPort to DisplayPort 1.2 Cable - 4K x 2K UHD Mini DisplayPort to DisplayPort
- 9.8ft/3m Mini-DP to DisplayPort v1.2 cable supports 4Kx2K(3840x2400 60Hz)
- 21.6 Gbps bandwidth/HBR2/8Ch Audio/MST/GTC/3D Stereo(2560x1600 120Hz)
- Durable 32AWG cable w/flexible PVC strain relief prevents damage due to bends/rough use
- Latching DP connectors prevent accidental disconnection
- For home/office/boardroom/classroom use w/ laptop/workstation and UHD monitor/projector/large display
- Samsung/Sony/Dell/Apple TV
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor
The MDP2DPMM10 10ft Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM10 is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
Specifications
Features
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Connector contacts plating
- Gold
- DisplayPort version
- 1.2
- Maximum resolution
- 3840 x 2160 pixels
- Supported graphics resolutions
- 3840 x 2400, 2560 x 1600 (WQXGA)
- Maximum refresh rate
- 120 Hz
- HDCP
- Yes
- DisplayPort Content Protection (DPCP)
- Yes
- Cable length
- 3 m
- Connector 1
- mini DisplayPort
- Connector 2
- DisplayPort
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Black
- Cable rating
- CMG (CM)
- Cable shielding
- Aluminum mylar foil
- Jacket material
- Polyvinyl chloride (PVC)
- AWG wire size
- 32
- Bandwidth
- 21600 MB/s
- Plug and Play
- Yes
- Multi-Stream Transport (MST)
- Yes
- Number of conductors
- 19
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -10 - 70 °C
- Operating relative humidity (H-H)
- 10 - 85%
Certificates
- Compliance certificates
- RoHS, CE
Weight & dimensions
- Cable diameter
- 4.8 mm
- Weight
- 103.9 g
Packaging data
- Package width
- 200 mm
- Package depth
- 153 mm
- Package height
- 30 mm
- Package weight
- 112.9 g
Packaging content
- Quantity per pack
- 1 pc(s)
Logistics data
- Harmonized System (HS) code
- 84733080
- Master (outer) case width
- 513 mm
- Master (outer) case length
- 330 mm
- Master (outer) case height
- 219 mm
- Products per master (outer) case
- 50 pc(s)
Downloads
More in Accessories
StarTech.com2-Port Hybrid KVM Switch enables switching between a USB-A/DisplayPortC2-D46-UAC-CBL-KVM
StarTech.comDual 4K 60Hz KVM Switch enables switching between two USB-A and DisplaC2-DD46-UA2-CBL-KVM
StarTech.comDual-4K 60Hz KVM Switch enables switching between two USB-A and HDMI eC2-DH46-UA2-CBL-KVM
StarTech.comUSB-C multiport adapter dongle w/ 4K 60Hz HDMI 2.0 or Mini DisplayPortDKT31CMDPHPD
StarTech.com6in Mini DisplayPort to DisplayPort Video Cable Adapter - M/F. The MDPMDP2DPMF6IN
StarTech.comMini DisplayPort HDMI Video Adapter Converter. The MDP2HDMI Mini DisplMDP2HDMI
StarTech.comKVM Console to USB 2.0 Portable Laptop Crash Cart AdapterNOTECONS01

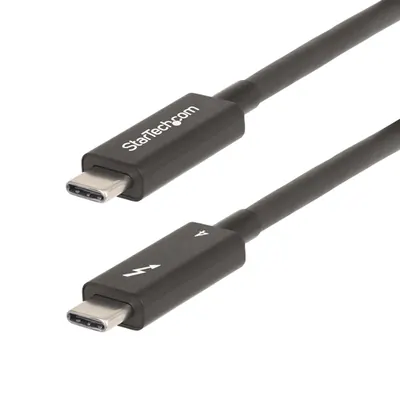

StarTech.com6.6ft (2m) Active Thunderbolt 4 cable with built-in chipset delivers 4A40G2MB-TB4-CABLE
