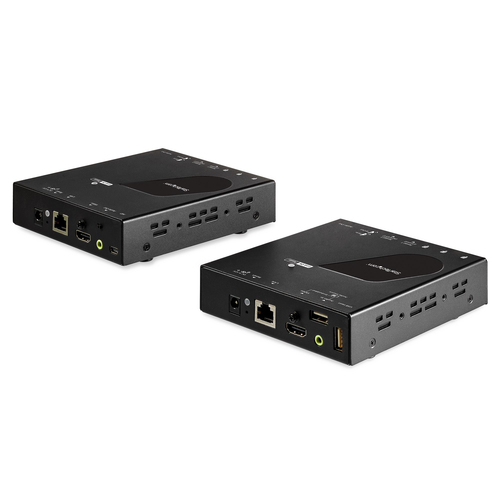

HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet
- HDMI KVM Extender over IP transmitter and receiver kit remotely controls KVM switch/console or PC from up to 328ft/100m over Cat5e/6 Ethernet cable or over IP-enabled local area network
- 4K UHD 30Hz 3840 x 2160 for large signage display
- USB 2.0 HID | OS Independent |2 x 3.5mm Analog Audio + Mic |Digital 7.1 Surround Audio |IP Routable/Switchable
- EDID Passthrough transfers display capabilities to video source -Video wall support w/receivers sold separately
- Mounting hardware incl.
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
SV565HDIP is backed by a 2-year warranty and free lifetime technical support.
Specifications

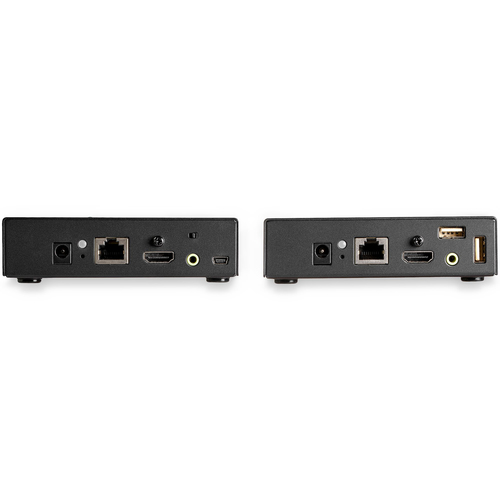

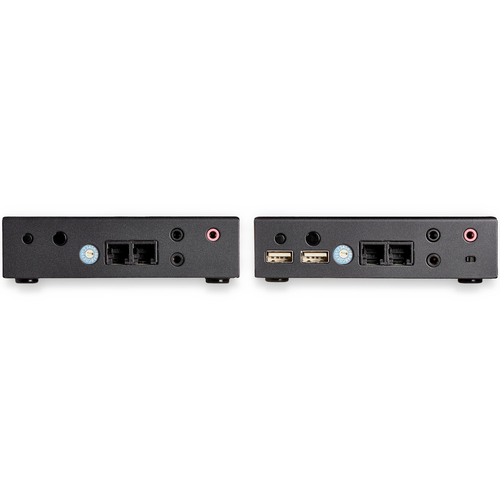

Ports & interfaces
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- HDMI
- HDMI ports quantity
- 2
- USB hub
- Yes
- USB 2.0 Type-A hub ports quantity
- 2
- Audio connections
- Yes
- Headphone outputs
- 8
- Number of microphone inputs
- 2
- DC-in jack
- Yes
Network
- Ethernet LAN (RJ-45) ports
- 2
Performance
- HD type
- 4K Ultra HD
- Maximum resolution
- 3840 x 2160 pixels
- Video bandwidth
- 30 Hz
- Daisy chain
- No
- Maximum operating distance
- 100 m
- Chipset
- ASPEED - AST1520
- Audio channels
- 7.1
Design
- Product colour
- Black
- Housing material
- Steel
- LED indicators
- Yes
- Hot keys
- No
- Mean time between failures (MTBF)
- 60000 h
- Certification
- CE, FCC, TAA, REACH
Display
- Built-in display
- No
- On Screen Display (OSD)
- Yes
Power
- Input voltage
- 100 - 240 V
- Input current
- 0.6 A
- Output voltage
- 12 V
- Output current
- 1.5 A
- Power consumption (typical)
- 18 W
- External power adapter
- Yes
- Power plug type
- Type M
- Compatible power plug types
- AU, EU, JP, UK
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 117 mm
- Depth
- 130 mm
- Height
- 28 mm
- Weight
- 610 g
Packaging data
- Package width
- 354 mm
- Package depth
- 368 mm
- Package height
- 80 mm

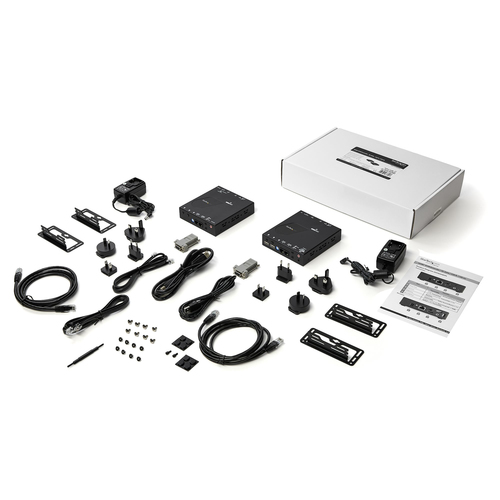

Packaging content
- Cables included
- HDMI, LAN (RJ-45), Phone (RJ-11), USB
- Quick installation guide
- Yes
- AC adapter included
- Yes
- Rubber feet
- Yes
Other features
- IP control
- No
Logistics data
- Harmonized System (HS) code
- 85176200
- Master (outer) case width
- 394 mm
- Master (outer) case length
- 490 mm
- Master (outer) case height
- 272 mm
- Products per master (outer) case
- 6 pc(s)
