2 Port Professional USB KVM Switch Kit with Cables - TAA
- Control 2 USB VGA based computers with this complete KVM kit including cables
- USB KVM Switch
- 2 Port KVM Switch -VGA KVM Switch
- Desktop KVM Switch
- USB KVM Switch Dual Port
- KVM Switch Cables included
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Control 2 USB VGA based computers with this complete KVM kit including cables

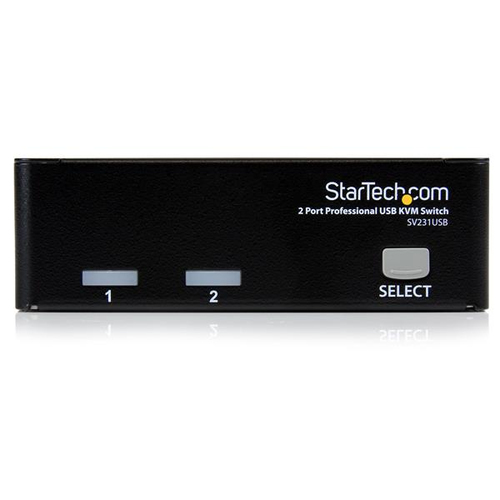

The SV231USB 2 Port Professional USB KVM Switch Kit with Cables offers simple control of two Mac or PC computers from a single monitor/display and USB peripheral set (keyboard, mouse).

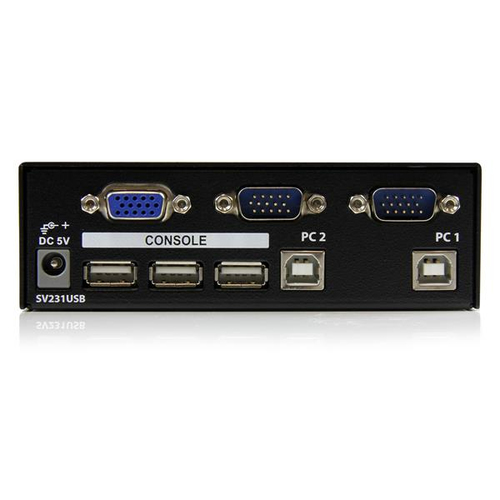

The 2 Port KVM switch includes 2 USB KVM cables, providing a complete out-of-the-box KVM solution saving you time and money. An integrated 3 port USB hub allows you to share connected USB peripherals between connected computers as though they were connected directly. A compact form factor design and rear-port connections to master and slave computers minimizes disruption to your workspace.
A cross-platform solution, this OS independent KVM switch supports high resolution applications up to 1920x1440, and provides a smooth operating experience when controlling mixed (Windows/Mac/Linux) environments.
Specifications
Ports & interfaces
- Number of computers controlled
- 8
- Video port type
- VGA
- VGA (D-Sub) ports quantity
- 4
- USB 2.0 ports quantity
- 5
- Audio connections
- No
- Console port
- USB
- DC-in jack
- Yes
Performance
- Maximum digital resolution
- 1920 x 1440 pixels
Design
- Rack mounting
- No
- Product colour
- Black
- Cable length
- 1.8 m
- Certification
- FCC
Display
- Built-in display
- No
Power
- Input voltage
- 110-240 V
Sustainability
- Compliance certificates
- RoHS
Weight & dimensions
- Width
- 70 mm
- Depth
- 124 mm
- Height
- 40 mm
- Weight
- 420 g
Packaging data
- Package length
- 9.41 mm
- Package width
- 238 mm
- Package depth
- 187 mm
- Package height
- 97 mm
- Package weight
- 1.3 kg
Packaging content
- Cables included
- USB, VGA
- Manual
- Yes
- AC adapter included
- Yes
Other features
- Connectivity technology
- Wired
- I/O ports
- 3 - USB A 2 - USB B 1 - HD DB15 2 - HD DB15
- Dimensions (WxDxH)
- 70 x 124 x 40 mm
- Ports quantity
- 2
- Power requirements
- 5V DC, 2A
Logistics data
- Master (outer) case width
- 400 mm
- Master (outer) case length
- 322 mm
- Master (outer) case height
- 285 mm
- Products per master (outer) case
- 6 pc(s)
