2-Port UHD 4K DP Port KVM with 2 Cables
- Black
- Number of computers controlled: 2
- Keyboard port type: USB Mouse port type: USB Video port type: DisplayPort
- 4K Ultra HD 4096 x 2160 pixels
- Housing material: Plastic
- Hot keys
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements.

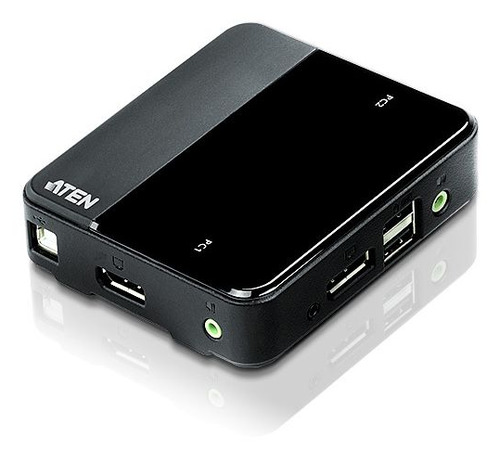

The ATEN CS782DP 2-Port USB DisplayPort KVM Switch features 4K video resolution and allows users to access two 4K-enabled computers from a single USB keyboard, USB mouse, and DisplayPort video console.
Doing so with ease, the CS782DP provides three convenient switching methods – using a remote port selector, mouse, or hotkeys for fl exible access to any computer connected to the installation. The product even provides premium audio support for a complete multimedia solution. To round off the entire experience, the streamlined, space-saving design of CS782DP also makes it ideal for any working environment.
With its rich feature set, the CS782DP is designed to surpass all requirements in graphic design, animation, and video-editing applications.
Specifications
Ports & interfaces
- Number of computers controlled
- 2
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- DisplayPorts quantity
- 2
- USB 2.0 Type-B ports quantity
- 2
- Console ports
- 3.5mm headphone, DisplayPort, USB A
- USB connector type
- USB Type-A, USB Type-B
- Audio connections
- Yes
- Headphone outputs
- 1
- Number of microphone inputs
- 1
Performance
- HD type
- 4K Ultra HD
- Maximum resolution
- 4096 x 2160 pixels
- Video bandwidth
- 60 Hz
- Scan interval
- 3,5,10,20 s
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Plastic
- LED indicators
- Yes
- Hot keys
- Yes
Display
- Built-in display
- No
Power
- Power source
- DC
- Input voltage
- 5 V
- Power consumption (typical)
- 2.18 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 93 mm
- Depth
- 93.7 mm
- Height
- 26.8 mm
- Weight
- 543 g
Packaging data
- Package width
- 59 mm
- Package depth
- 239 mm
- Package height
- 175 mm
- Package weight
- 687 g
Packaging content
- Quick installation guide
- Yes
- Manual
- Yes
Logistics data
- Master (outer) case net weight
- 5.43 kg
- Harmonized System (HS) code
- 85176200
- Master (outer) case width
- 328 mm
- Master (outer) case length
- 497 mm
- Master (outer) case height
- 196 mm
- Master (outer) case gross weight
- 7.71 kg
- Products per master (outer) case
- 10 pc(s)
