StarTech.com SV231DPDDUA2 Drag to turn · 10 views
StarTech.comKVM Switches

2-Port DisplayPort Dual-Monitor KVM Switch - 4K 60Hz - TAA

Part # SV231DPDDUA2UPC 065030867177Warranty: 2 Years2.65 lb

  • Access two dual-monitor computers and two shared USB peripherals from a single workstation
  • Works with 4K monitors such as Asus PB278Q and 4K computers such as HP EliteBook 840 G2 HP ProBook 650 G1
  • Maximum productivity with dual-display multi-computer access
  • Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
  • 2 port DisplayPort KVM/2 port dual monitor KVM switch/Display port KVM/DisplayPort 1.2 KVM/Dual monitor DisplayPort KVM/2 monitor KVM switch/4K60
In stockPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Access two dual-monitor computers and two shared USB peripherals from a single workstation

This dual DisplayPort KVM switch combines next-generation digital display standards with seamless KVM control. The 2-port KVM switch features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head or twin DisplayPort systems.

01

Maximize productivity with dual video

With support for two DisplayPort video inputs and two different computers, this KVM switch helps maximize productivity.You can access multiple computers, giving you the freedom to multitask and increase your productivity. Each of the DP ports supports resolutions up to 4K for maximum screen viewing space.

You can also use low-cost adapters to achieve a dual-monitor setup using your computer's secondary HDMI or DVI port.

02

Astonishing picture quality

The dual DisplayPort KVM switch supports resolutions up to Ultra HD 4K at 60Hz, and can drive two large DP displays with ease. This makes it the ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

03

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that let you share independent analog audio, from each of your connected computers, with your desktop speaker set. With independent audio support, along with dual 4K DP video, you get full multimedia control between different computers which makes this the perfect KVM switch for creative professional applications such as video and sound design or editing.

04

Convenient peripheral sharing

This KVM switch offers a built-in 2-port USB hub that's separate from your HID keyboard and mouse. This enables you to share USB peripherals between each connected computer and avoid the expense of separate equipment. The USB hub automatically switches your connected USB devices to the selected computer, saving you the hassle and cost of outfitting each of your computers with their own peripherals.

The SV231DPDDUA2 is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

Specifications

Ports & interfaces

Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
4
USB connector type
USB Type-A
Audio connections
Yes
Headphone outputs
3
Number of microphone inputs
3
DC-in jack
Yes

Network

Ethernet LAN
No

Performance

HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Daisy chain
No

Design

Product colour
Black
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Certification
CE, FCC, REACH, TAA

Display

Built-in display
No

Power

Input voltage
100 - 240 V
Input current
1.5 A
Output voltage
12 V
Output current
0.6 A
External power adapter
Yes
Compatible power plug types
AU, EU, UK, US

Sustainability

Compliance certificates
RoHS

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
161 mm
Depth
58 mm
Height
100 mm
Weight
734 g

Packaging data

Package width
250 mm
Package depth
188 mm
Package height
100 mm
Package weight
1.2 kg

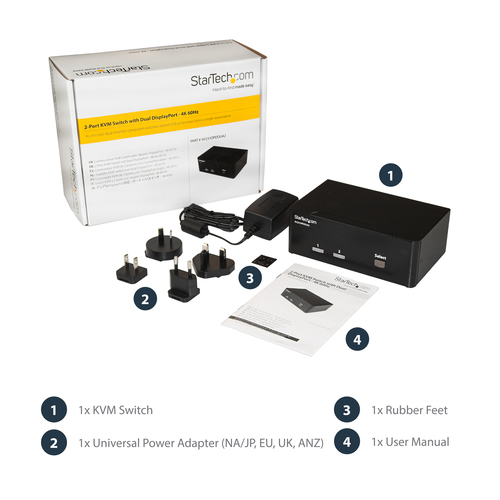

Packaging content

Manual
Yes
Rubber feet
Yes

Other features

Audio support
Yes
IP control
No

Logistics data

Harmonized System (HS) code
85176200
Master (outer) case width
403 mm
Master (outer) case length
319 mm
Master (outer) case height
287 mm
Products per master (outer) case
6 pc(s)
