2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub - TAA
- Control 2 high-resolution dual DisplayPort computers with a single console
- Compatible with DisplayPort equipped desktop and notebook computers and DisplayPort monitors
- Supports resolutions up to 2560x1600
- USB KVM Switch/DisplayPort KVM Switch/DisplayPort KVM/Desktop KVM Switch/DP KVM/DP KVM switch/USB keyboard and mouse with DisplayPort monitor
- Perfect for high-resolution applications such as Multimedia design, multimedia post-production and video editing
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Control 2 high-resolution dual DisplayPort computers with a single console
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Specifications
Ports & interfaces
- Number of computers controlled
- 2
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- DisplayPorts quantity
- 6
- Console ports
- 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
- Console USB ports quantity
- 2
- USB hub
- Yes
- USB connector type
- USB Type-A
- Audio connections
- Yes
- Headphone outputs
- 3
- Number of microphone inputs
- 3
- DC-in jack
- Yes
Network
- Ethernet LAN
- No
Performance
- HD type
- 4K Ultra HD
- Maximum resolution
- 3840 x 2400 pixels
- DDC2B support
- Yes
- Hot-Plug support
- Yes
- Daisy chain
- No
- Number of users
- 1 user(s)
- Audio channels
- 7.1
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Steel
- LED indicators
- Yes
- Push button
- Yes
- Hot keys
- Yes
- Certification
- CE, FCC, REACH, TAA
Display
- Built-in display
- No
- On Screen Display (OSD)
- No
Power
- Input voltage
- 110 - 240 V
- Input current
- 0.8 A
- Output voltage
- 12 V
- Output current
- 1.5 A
- Power consumption (typical)
- 18 W
- External power adapter
- Yes
- Power plug type
- Type M
- Compatible power plug types
- AU, EU, UK, US
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- 20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 161 mm
- Depth
- 100 mm
- Height
- 57.5 mm
- Weight
- 734 g
Packaging data
- Package width
- 252 mm
- Package depth
- 188 mm
- Package height
- 100 mm
- Package weight
- 1.19 kg

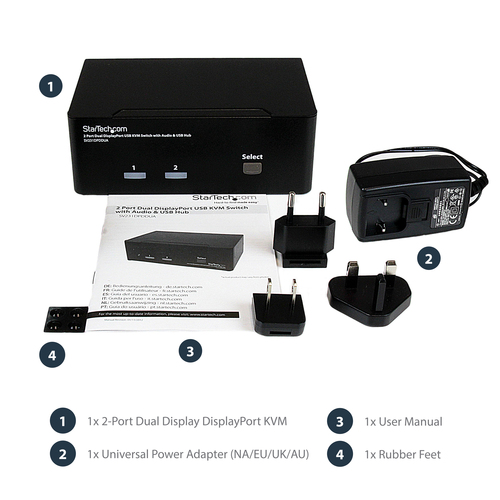

Packaging content
- Manual
- Yes
Other features
- Audio support
- Yes
- IP control
- No
Logistics data
- Harmonized System (HS) code
- 85176200
- Master (outer) case width
- 403 mm
- Master (outer) case length
- 322 mm
- Master (outer) case height
- 285 mm
- Products per master (outer) case
- 6 pc(s)
