StarTech.com SDOCK2U313R Drag to turn · 13 views
StarTech.comMedia Duplicators

Standalone Hard Drive Duplicator, Dual Bay HDD/SSD Cloner/Copier, USB 3.1 (10Gbps) to SATA III

Part # SDOCK2U313RUPC 065030863551Warranty: 2 Years2.15 lb

  • Dual bay external hard drive duplicator works as standalone drive cloner / copier (no PC required) or docking station
  • File transfer / Drive mount / Backup / Recovery / cloning tool for 2,5" / 3,5" SATA drives
  • Sector-by-sector SSD / HDD duplication for whole disk copy up to 28 GB/min
  • Top loading with disk eject
  • SATA III (6Gbps) w/ TRIM| 4Kn | All File Formats | No device capacity limit | USB 3.2 Gen 2 (10Gbps) | OS Independent
  • Hardware includes USB-C/A Cables and Universal Power Adapter
In stockPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Hard Drive Cloner | 2.5"/3.5" HDD/SSD | USB 3.2 Gen 2 (10 Gbps) to SATA III

Duplicate drives quickly, at rates of up to 28GB per minute for SSDs, without having to connect to your computer. This duplicator dock offers standalone drive cloning that makes it easy to back up your data and make exact images of your drives. You can also connect the dock to your computer through USB 3.2 Gen 2 (10Gbps), to dock and swap your drives as part of a scalable storage solution.

01

Clone your drives at high speed

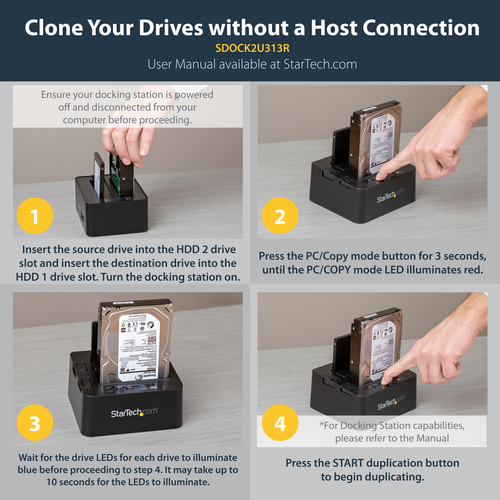

Duplicating a hard drive or solid-state drive is an effective way to migrate your operating system and data from one drive to another, or create an exact copy for safeguarding your important data. This drive duplicator lets you create a sector-by-sector clone of your drive, including partitions and boot sector information, to ensure data integrity and consistency for sensitive operations such as data recovery.

The duplicator dock saves you valuable time with SSD duplication speeds of up to 28GB per minute. You can duplicate a 2.5" or 3.5" SATA SSD or HDD easily, without having to connect the duplicator to a host computer.

02

Transfer files quickly between the dock and your PC

The duplicator dock also provides an external storage solution, letting you dock your drives through USB 3.2 Gen 2 with UASP support, enabling fast data transfer rates of up to 10Gbps. Each drive slot individually supports a high-capacity hard drive or solid-state drive, tested up to 6 TB.

03

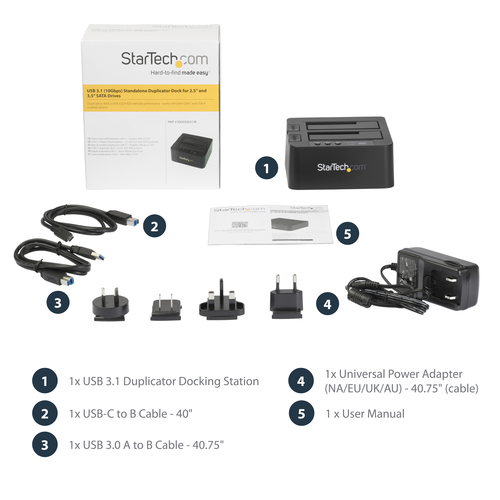

Includes two USB cables for versatility

The duplicator dock comes with two USB cables for flexible use with the latest laptops and tablets equipped with a USB-C™ port, as well as legacy devices. It includes both USB-C to B and USB-A to B cables. The duplicator dock is also compatible with a Thunderbolt™ 3 USB-C port.

04

Designed for easy use

The dock features a top-loading, toaster-style design that makes it easy to insert your drives. It also features drive doors to help stabilize drives that are inserted into the slot and prevent foreign objects from getting into the drive slots.

Both tool-less and tray-less, the duplicator dock helps to ensure quick and hassle-free drive insertions. LED indicators let you know, at a glance, the current state of the duplication process, including the specific duplication mode, the HDD status and clone progress. The HDD ejection button enables fast and simple drive removal.

For added compatibility with different drive types in duplication and docking applications, the SDOCK2U33RE supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:

SATA to 2.5in or 3.5in IDE Drive Adapter - SAT2IDEADP

2.5in SATA to Mini SATA SSD Adapter - SAT2MSAT25

05

M.2 SSD to 2.5in SATA Adapter - SAT32M225

The SDOCK2U313R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Features

Product type
HDD duplicator
Product colour
Black
Housing material
Plastic
Number of simultaneous copies
2 copies
Interface
USB 3.1
USB connector type
USB Type-B
Duplicator operating modes
Copy
Transfer rate
10000 MB/s
Transfer rate
28 GB/min
Chipset
ASMedia - ASM1352R
Number of fans
0 fan(s)
Port multiplier
No
LED indicators
HDD, Power, Status
Certification
CE, FCC, UL, REACH

Hard drive

Supported HDD sizes
2.5,3.5"
Supported HDD interfaces
Serial ATA, Serial ATA II, Serial ATA III

Power

Power consumption (typical)
36 W
AC input voltage
100-240 V
Input current
1.5 A
Output voltage
12 V
Output current
3 A
Power plug type
Type M
Included power plug types
AU, EU, NA, UK

Weight & dimensions

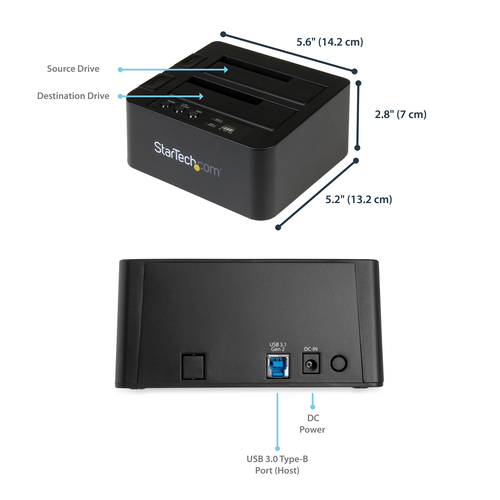

Dimensions (WxDxH)
132 x 142 x 70 mm
Weight
508 g

Packaging data

Package width
190 mm
Package depth
213 mm
Package height
124 mm
Package weight
992 g
Package dimensions (WxDxH)
300 x 166 x 88 mm

Packaging content

Cables included
USB
AC adapter included
Yes
Manual
Yes

Operational conditions

Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-20 - 50 °C

Technical details

Compliance certificates
RoHS

Logistics data

Master (outer) case length
211 mm
Master (outer) case width
631 mm
Master (outer) case height
470 mm
Products per master (outer) case
10 pc(s)
