4-Bay Hard Drive Duplicator and Eraser, Standalone 1:3 SATA HDD/SSD Cloner/Copier, USB 3.0 / eSATA
- Quad-bay External Hard Drive Duplicator works as standalone drive cloner / copier / eraser / wiper (no PC required) or docking station
- File transfer / Backup / Disk mount / Recovery tool
- Sector-by-sector cloning up to 4.2 GB/m | Quick and Secure Erase

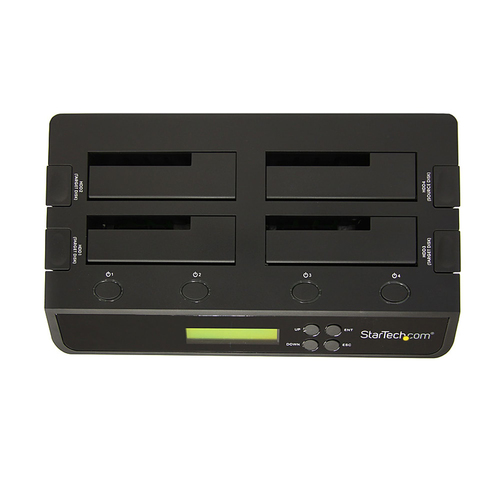

- Top loading with disk eject buttons | LCD Screen
- SATA III SSD/HDD | 4Kn | No device capacity limit | USB 3.2 Gen 1 (5 Gbps) or eSATA host connection| OS Independent
- Hardware includes USB SATA eSATA 40-pin/3.5in and 44-pin/2.5in IDE cables
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Quad Bay Hard Drive Duplicator & Eraser 2.5/3.5" HDD/SSD Disk Cloner
The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay) can be used to greatly enhance your computer's storage/backup capabilities.
Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system.
Features Quick and Secure Erase functions and support for IDE hard drives using the included SATA to IDE hard drive adapter (SAT2IDEADP). This drive eraser ensures data is purged (a secure erase) which is required by government agencies and organizations who have strict guidelines on deleting data. Purging is a very secure method of erasing data from your storage device which complies with the NIST 800-88 Rev. 1 media sanitation standard established by the National Institute of Standards and Technology.
Specifications
Features
- Product type
- HDD duplicator
- Product colour
- Black
- Housing material
- Plastic
- Number of simultaneous copies
- 3 copies
- Interface
- USB/eSATA
- USB connector type
- USB Type-B
- Duplicator operating modes
- Copy
- Maximum supported storage capacity
- 16 TB
- Plug and Play
- Yes
- Display
- LCD
- Chipset
- JMicron - JMB394 + JMS539
- Number of fans
- 2 fan(s)
- Fan diameter
- 6 cm
- Port multiplier
- Yes
- LED indicators
- Activity, Power
- Certification
- CE
Hard drive
- Supported HDD sizes
- 2.5,3.5"
- Supported HDD interfaces
- Serial ATA, Serial ATA II
System requirements
- Compatible operating systems
- Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2, Mac OS X, Linux
Power
- Power consumption (typical)
- 78 W
- AC input voltage
- 110-240 V
- Output voltage
- 12 V
- Output current
- 6.5 A
- Included power plug types
- EU, NA, UK
Weight & dimensions
- Dimensions (WxDxH)
- 285 x 170 x 94 mm
- Weight
- 1.1 kg
Packaging data
- Package width
- 223 mm
- Package depth
- 344 mm
- Package height
- 181 mm
- Package weight
- 2.73 kg

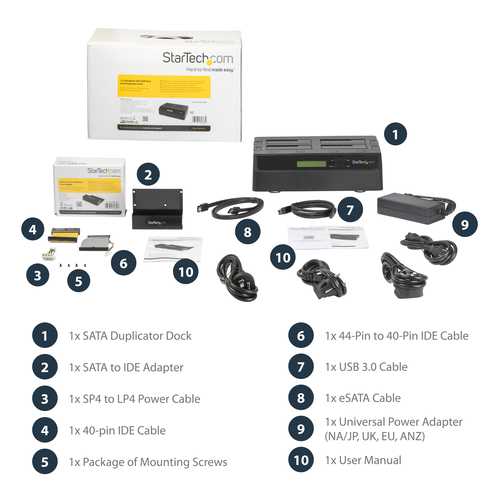

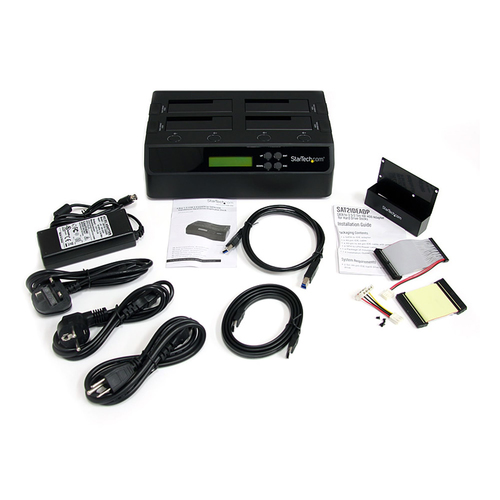

Packaging content
- Cables included
- SATA, USB, eSATA
- AC adapter included
- Yes
- Manual
- Yes
Operational conditions
- Operating relative humidity (H-H)
- 8 - 90%
- Operating temperature (T-T)
- 5 - 80 °C
- Storage temperature (T-T)
- -40 - 70 °C
Technical details
- Compliance certificates
- RoHS
Logistics data
- Master (outer) case length
- 375 mm
- Master (outer) case width
- 377 mm
- Master (outer) case height
- 481 mm
- Products per master (outer) case
- 4 pc(s)
More in Coolers & Accessories

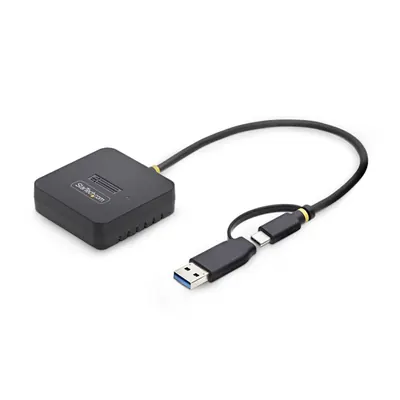

StarTech.comAccess an M.2 NVMe drive via USBC or USBA at up to 10Gbps Driverless s1USB3-NVME-DOCK
