Dual-Bay USB 3.2 Gen 2 to SATA Hard Drive Docking Station, USB 10Gbps Hard Drive Dock, External
- Dual-bay hard drive docking station delivers instant access to two 2.5/3.5" SATA drives without having to install the drive in an external enclosure
- Hot-swappable bays work with 2.5" / 3.5" SATA drives. Tool-less design and top slot loading with eject buttons
- SATA III (6.0 Gbps) | USB 3.2 Gen 2 (10 Gbps) | No capacity limit | OS Independent
- Includes 3ft USB-A cable and universal power adapter
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/III
Get unprecedented performance and storage capacity with this USB 3.2 Gen 2 (10Gbps) dual-drive docking station. It supports both 2.5" and 3.5" form factor solid-state and hard drives, with a high capacity storage capability of 32TB (16TB per drive).

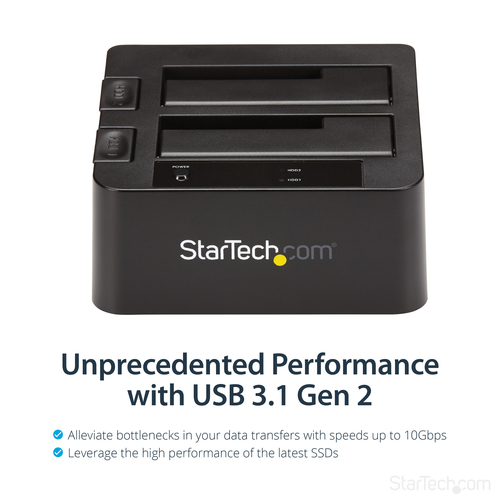

Harness the speed of USB 3.2 Gen 2 (USB 10Gbps)
USB 3.2 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.2 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Top-loading design for easy drive access
It's never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.

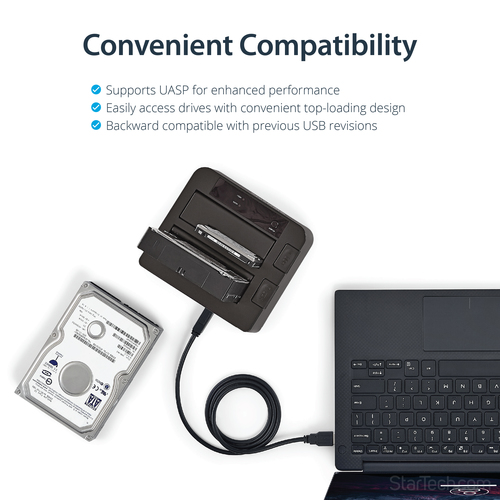

Convenient compatibility
The dual-drive docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5" or 3.5" IDE hard drive into a SATA hard drive dock.
Specifications
Hard drive
- Storage media type
- HDD, SSD
- Storage drive interface
- Serial ATA, Serial ATA II, Serial ATA III
- Storage drive sizes supported
- 2.5,3.5"
- Number of storage drives supported
- 2
- Maximum storage capacity
- 6 TB
Ports & interfaces
- Host interface
- USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B
- DC-in jack
- Yes
Features
- Product colour
- Black
- Material
- Plastic
- LED indicators
- Activity, Power
- UASP support
- Yes
- Certification
- CE, FCC, REACH
Cooling
- Built-in fan
- No
- Number of fans
- 0 fan(s)
Power
- AC input voltage
- 100-240 V
- Input current
- 1.3 A
- Output voltage
- 12 V
- Output current
- 3 A
- Power plug type
- Type M

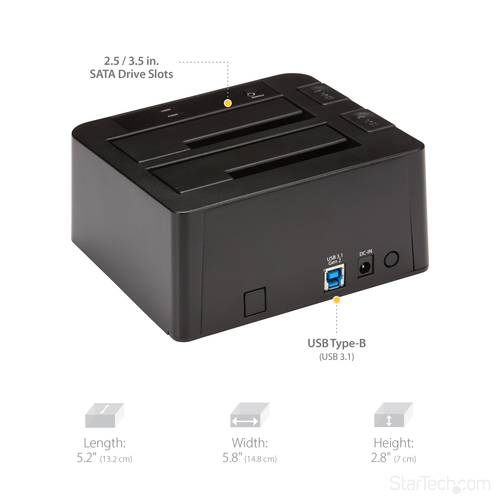

Weight & dimensions
- Width
- 148 mm
- Depth
- 132 mm
- Height
- 70 mm
- Weight
- 502 g
Packaging data
- Package width
- 213 mm
- Package depth
- 190 mm
- Package height
- 120 mm
- Package weight
- 980 g

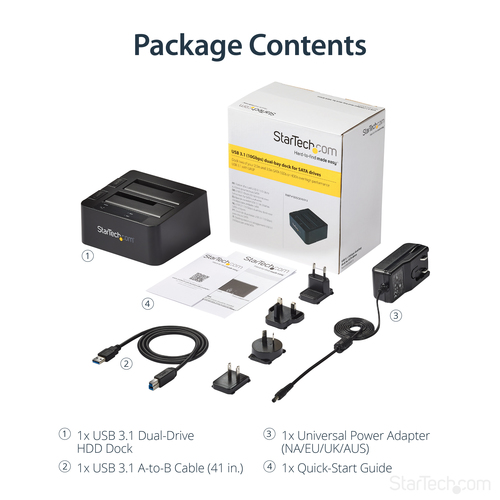

Packaging content
- AC adapter included
- Yes
- Cables included
- USB
- Included power plug types
- AU, EU, NA, UK
- Quick installation guide
- Yes
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
- Storage temperature (T-T)
- -20 - 50 °C
- Operating relative humidity (H-H)
- 20 - 80%
Other features
- Chipset
- ASMedia - ASM1352R
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 84733080
- Master (outer) case width
- 617 mm
- Master (outer) case length
- 212 mm
- Master (outer) case height
- 466 mm
- Products per master (outer) case
- 10 pc(s)
