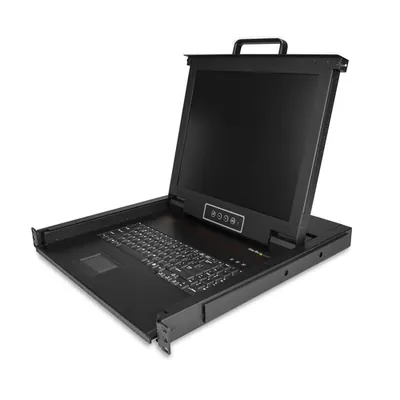

8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully
- Rackmount KVM Console w/19" Active Matrix TFT LCD Monitor/1280 x 1024/8 Port VGA KVM Switch/Full Keyboard + Keypad/Trackpad/Integrated Power Supply/OS Independent/USB 2.0
- Incl. 6' Cables/Mounting Hardware/Universal Compatibility
- Customizable Hot-Keys/On-Screen Display (OSD)/Admin + User Level Security and Auto Scan
- Integrated KVM + console in 1U rack space w/mounting depth 23.8" [60.5 cm]
- 35" [89 cm]
- Heavy duty LCD KVM Drawer with rails
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Control your server or KVM switch from a centralized LCD KVM drawer
This rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This 8-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard (QWERTY) for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring
The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
The RKCONS1908K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Display
- Display diagonal
- 48.3 cm (19")
- Display resolution
- 1280 x 1024 pixels
- Display
- TFT LCD
- Display brightness
- 250 cd/m²
- Contrast ratio (typical)
- 1000:1
- Pixel pitch
- 0.264 x 0.264 mm
- Display type
- LCD
- Display number of colours
- 16.78 million colours
- Colour depth
- 8 bit
Technical details
- Material
- Steel
- Mean time between failures (MTBF)
- 50000 h
- Product colour
- Black
- Operating relative humidity (H-H)
- 10 - 80%
- Audio support
- No
- Daisy chain
- No
- Key lock
- No
- IP control
- No
- Number of computers controlled
- 8
- Sustainability certificates
- UL ECOLOGO
- Compliance certificates
- CE, RoHS
- Rack capacity
- 1U
Ports & interfaces
- VGA (D-Sub) ports quantity
- 9
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA
- USB 2.0 Type-A ports quantity
- 2
Keyboard
- Built-in touchpad
- Yes
Power
- Power consumption (typical)
- 21 W
- AC adapter input voltage
- 100 - 240 V
- Input current
- 1.5 A
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Width
- 483 mm
- Height
- 43 mm
- Depth
- 643 mm
- Weight
- 13.4 kg
- Mounting depth (min)
- 60.5 cm
- Mounting depth (max)
- 89 cm
Packaging data
- Package width
- 775 mm
- Package depth
- 624 mm
- Package height
- 189 mm
- Package volume
- 19000 cm³
Packaging content
- Cables included
- KVM
- Screws included
- Yes
- Number of screws
- 8
- Mounting brackets included
- Yes
- Cage nuts included
- Yes
- Number of cage nuts
- 8
- Included power plug types
- ANZ, EU, JP, NA, UK
- Quick installation guide
- Yes
Logistics data
- Master (outer) case width
- 780 mm
- Master (outer) case length
- 629 mm
- Master (outer) case height
- 189 mm
- Products per master (outer) case
- 1 pc(s)
