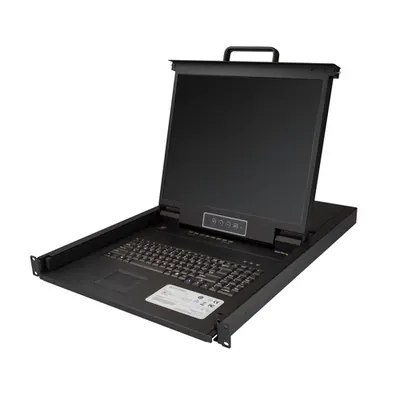

Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured
- This rackmount KVM console drawer works w/all VGA + USB KVM switch brands and models
- Rack mount monitor w/17" Active Matrix TFT 1280x1024 LCD | 1U | 99 key full keyboard w/numeric keypad + Trackpad |Integrated power supply
- Server rack drawer w/durable steel housing and rails | Operating Temperature 0 to 40 deg. C | 50000 hour MTBF
- Backed by 2 year warranty with 24/5 by multi-lingual tech support
- Compatible with StarTech.com integrated 8-port (RKCONS1708K) or 16-port (RKCONS1716K) KVMs
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This single-port KVM console includes everything you need to set up right out of the box:
• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Display
- Display diagonal
- 43.2 cm (17")
- Display resolution
- 1280 x 1024 pixels
- Display brightness
- 250 cd/m²
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 170°
- Viewing angle, vertical
- 160°
- Pixel pitch
- 0.264 x 0.264 mm
- Aspect ratio
- 5:4
- Display type
- LCD
- Response time
- 5 ms
- Display number of colours
- 16.78 million colours
- Colour depth
- 8 bit
Technical details
- Material
- Steel
- Mean time between failures (MTBF)
- 50000 h
- Operating relative humidity (H-H)
- 10 - 80%
- Rack mounting
- Yes
- Daisy chain
- No
- Key lock
- No
- IP control
- No
- LED indicators
- Power, Status
- Cable length
- 1.82 m
- Compliance certificates
- RoHS
- Rack capacity
- 1U
Ports & interfaces
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA
Certificates
- Certification
- CE, FCC, PSE, UL
Power
- Power consumption (typical)
- 13 W
- AC adapter input voltage
- 100 - 240 V
- Input current
- 1.5 A
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Width
- 448 mm
- Height
- 471 mm
- Depth
- 42.5 mm
- Weight
- 11.6 kg
- Mounting depth (min)
- 45 cm
- Mounting depth (max)
- 79 cm
Packaging data
- Package weight
- 17.1 kg
- Package width
- 781 mm
- Package depth
- 624 mm
- Package height
- 196 mm
Packaging content
- Cables included
- KVM
- Screws included
- Yes
- Number of screws
- 8
- Mounting brackets included
- Yes
- Cage nuts included
- Yes
- Number of cage nuts
- 8
- Included power plug types
- ANZ, EU, JP, NA, UK
- Quick installation guide
- Yes
- Rack mount kit
- Yes
Logistics data
- Master (outer) case width
- 781 mm
- Master (outer) case length
- 624 mm
- Master (outer) case height
- 196 mm
- Products per master (outer) case
- 1 pc(s)
