APCRack Consoles

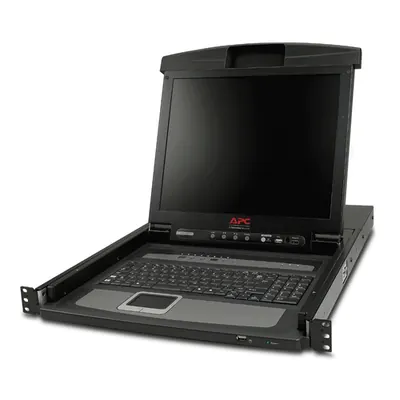

17" Rack LCD Console
- Occupies only 1U of rack space, conserving valuable space in the data center
- Combines a keyboard, mouse, and 17-inch LCD monitor into a single unit, reducing clutter and simplifying setup
- Compatible with Windows, Sun, Unix, and Linux systems, providing flexibility for various IT environments
- Includes all necessary mounting hardware and cables ensuring straightforward setup
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
"1U rack-mountable keyboard, mouse, and LCD console with US English keyboard layout"
Specifications
Display
- Display diagonal
- 43.2 cm (17")
- Display
- LCD
- Display number of colours
- 16.78 million colours
Technical details
- Form factor
- 1U
- Product colour
- Black
- Total carbon footprint (kg of CO2e)
- 55.80062355104325
- Compliance certificates
- RoHS, REACH, WEEE
- Sustainable packaging
- No
- Mounting
- front; rear
- Halogen free
- No
- Preferred mounting position
- no preference
- Take-back system
- No
- Packaging without single use plastic
- No
- Rack capacity
- 1U
- Country of origin
- China
Ports & interfaces
- Interface
- PS/2, USB
Certificates
- Certification
- C-Tick; CE; Industry Canada; KCC; NOM; UL listed; VDE; TAA compliance
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
Power
- Power consumption (typical)
- 30 W
- AC adapter input voltage
- 100-240 V
- AC adapter frequency
- 50 - 60 Hz
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Other features
- Dimensions (WxDxH)
- 482 x 614 x 44 mm
Weight & dimensions
- Width
- 482 mm
- Height
- 44 mm
- Depth
- 614 mm
- Weight
- 15.9 kg
Packaging data
- Package weight
- 19.5 kg
- Package dimensions (WxDxH)
- 673 x 826 x 152 mm
Logistics data
- Customs product code (TARIC)
- 8528529100
