Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully
- Rackmount KVM console w/high-resolution widescreen (16:9) 1080p LCD panel perfect for applications requiring extra detail
- Server rack HD KVM console drawer works w/any KVM switch that supports VGA and USB interfaces
- 17.3" Active Matrix TFT widescreen monitor/ 1U height/VGA + USB/Full keyboard and Trackpad Universal power (US/UK/JP/ANZ)
- Durable steel housing design and rails to withstand frequent use w/ 50,000 hour MTBF
- Backed by StarTech.com 2-year warranty w/ 24/5 multi-lingual tech support
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Control your server or KVM switch from a centralized HD KVM console
Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.
High-Definition LCD Monitor
The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.
Clutter-Free Monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Simple Setup
This single-port KVM console comes with everything you need to set up:
• 1 Audio Cable
• 1 Set of KVM Cables (VGA)
• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws
Cost Effective Solution
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.
Specifications
Display
- Display diagonal
- 43.9 cm (17.3")
- Display resolution
- 1920 x 1080 pixels
- Display
- TFT LCD
- Display brightness
- 300 cd/m²
- Contrast ratio (typical)
- 800:1
- Viewing angle, horizontal
- 170°
- Viewing angle, vertical
- 170°
- Pixel pitch
- 0.1989 x 0.1989 mm
- Aspect ratio
- 16:9
- Display type
- LCD
- Display number of colours
- 262144 colours
- Colour depth
- 6 bit
Technical details
- Material
- Steel
- Mean time between failures (MTBF)
- 50000 h
- Product colour
- Black
- Operating relative humidity (H-H)
- 10 - 80%
- Rack mounting
- Yes
- Audio support
- No
- Daisy chain
- No
- IP control
- No
- LED indicators
- Power, Status
- Cable length
- 1.8 m
- Compliance certificates
- RoHS
- Rack capacity
- 1U
Ports & interfaces
- Video port type
- VGA
Keyboard
- Built-in touchpad
- Yes
Certificates
- Certification
- CE, FCC, PSE, UL, REACH
Power
- Power consumption (typical)
- 13 W
- AC adapter input voltage
- 100 - 240 V
- Input current
- 1.5 A
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Width
- 483 mm
- Height
- 565 mm
- Depth
- 43 mm
- Weight
- 11.2 kg
- Mounting depth (min)
- 51 cm
- Mounting depth (max)
- 85 cm
Packaging data
- Package weight
- 16 kg
- Package width
- 780 mm
- Package depth
- 616 mm
- Package height
- 191 mm
Packaging content
- Cables included
- KVM
- Screws included
- Yes
- Number of screws
- 8
- Cage nuts included
- Yes
- Number of cage nuts
- 8
- Included power plug types
- ANZ, EU, JP, NA, UK
- Quick installation guide
- Yes
Logistics data
- Master (outer) case width
- 780 mm
- Master (outer) case length
- 616 mm
- Master (outer) case height
- 191 mm
- Products per master (outer) case
- 1 pc(s)
More in KVM Switch 1 to 2 port

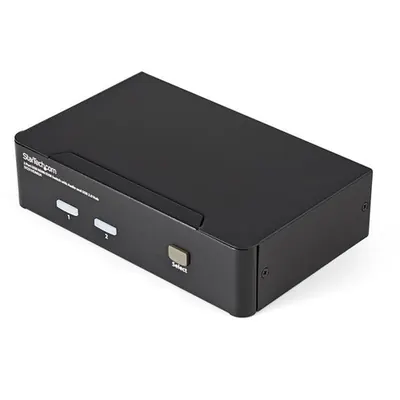

StarTech.comHDMI KVM switch operates and accesses two computers from one workstatiSV211HDUA4K

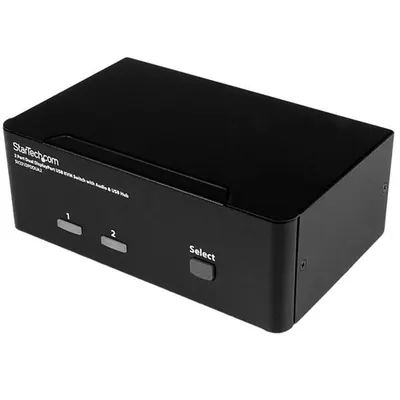

StarTech.com2-Port DisplayPort Dual-Monitor KVM Switch - 4K 60Hz - Access two dualSV231DPDDUA2
StarTech.comThis 2 Port USB C KVM Switch toggles between two computers with one DiSV231DPUCA
StarTech.com2 Port USB HDMI KVM Switch with Audio and USB 2.0 HubSV231HDMIUA

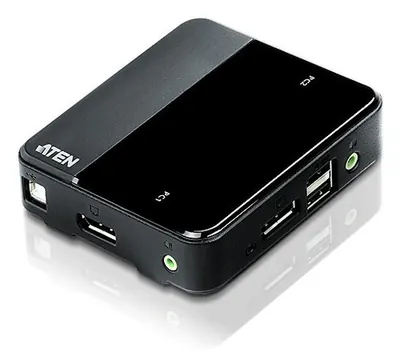

ATEN2-Port UHD 4K DP Port KVM with 2 CablesCS782DP
