Home/Catalogue/StarTech.com/RKCONS1708K
Drag to turn · 7 views
8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully
- Rackmount KVM Console w/17" Active Matrix TFT LCD Monitor/1280 x 1024/8 Port VGA KVM Switch/Full Keyboard + Keypad/Trackpad/Integrated Power Supply/OS Independent/USB 2.0
- Incl. 6' Cables/Mounting Hardware/Universal Compatibility
- Customizable Hot-Keys/On-Screen Display (OSD)/Admin + User Level Security and Auto Scan

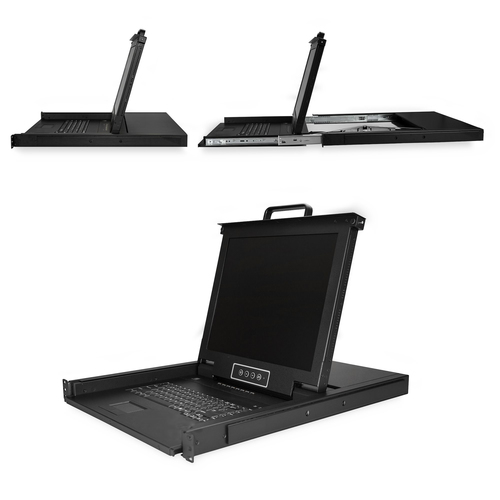

- Integrated KVM + console in 1U rack space w/mounting depth 22" [56 cm] to 35" [90 cm]
- Heavy duty LCD KVM Drawer with rails
- StarTech.com 2-year warranty
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included

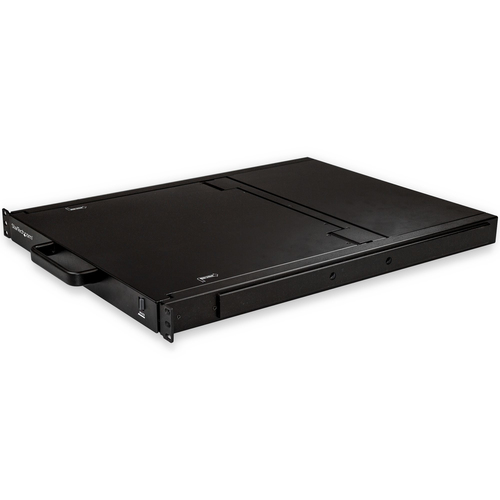

Providing centralized control of up to eight servers, this 8-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution

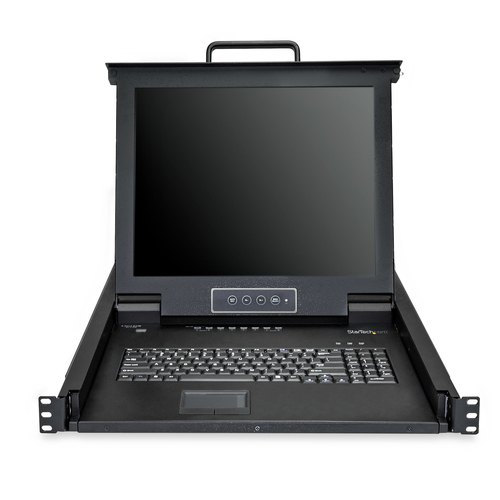

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

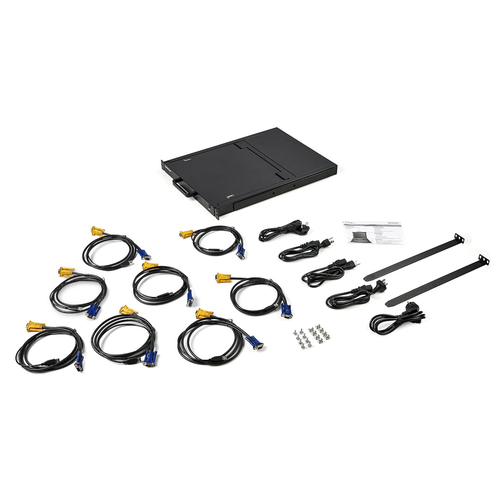

This 8-port KVM console comes with everything you need to set up right out of the box:
• 8 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support
Specifications
Display
- Display diagonal
- 43.2 cm (17")
- Display resolution
- 1280 x 1024 pixels
- Display
- TFT LCD
- Display brightness
- 250 cd/m²
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 170°
- Viewing angle, vertical
- 160°
- On Screen Display (OSD)
- Yes
- Pixel pitch
- 0.264 x 0.264 mm
- Aspect ratio
- 5:4
- Display type
- LCD
- Response time
- 5 ms
- Display number of colours
- 16.78 million colours
Technical details
- Material
- Steel
- Mean time between failures (MTBF)
- 50000 h
- Product colour
- Black
- Operating relative humidity (H-H)
- 10 - 80%
- Rack mounting
- Yes
- Daisy chain
- No
- Key lock
- No
- IP control
- No
- LED indicators
- Yes
- Sustainability certificates
- UL ECOLOGO
- Compliance certificates
- CE, RoHS
- Rack capacity
- 1U

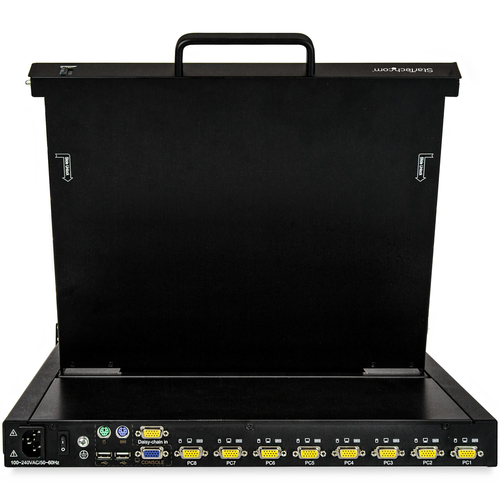

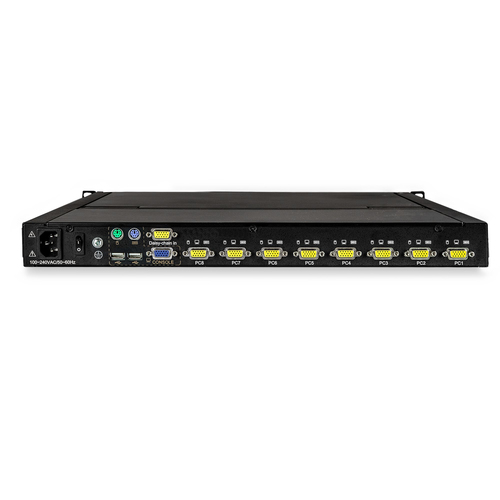

Ports & interfaces
- VGA (D-Sub) ports quantity
- 8
- Keyboard port type
- PS/2
- Mouse port type
- PS/2
- Video port type
- VGA
- USB 2.0 Type-A ports quantity
- 2
Keyboard
- Hot keys
- Yes
Power
- Power consumption (typical)
- 13 W
- AC adapter input voltage
- 100 - 240 V
- Input current
- 1.5 A
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Width
- 448 mm
- Height
- 619 mm
- Depth
- 43 mm
- Weight
- 17 kg
- Mounting depth (min)
- 56 cm
- Mounting depth (max)
- 90 cm
Packaging data
- Package weight
- 19.7 kg
- Package width
- 767 mm
- Package depth
- 615 mm
- Package height
- 182 mm
Packaging content
- Cables included
- KVM
- Screws included
- Yes
- Number of screws
- 8
- Cage nuts included
- Yes
- Number of cage nuts
- 8
- Included power plug types
- ANZ, EU, JP, NA, UK
- Manual
- Yes
Logistics data
- Master (outer) case width
- 767 mm
- Master (outer) case length
- 617 mm
- Master (outer) case height
- 182 mm
- Products per master (outer) case
- 1 pc(s)
