4-Post 8U Hinged Wall-Mount Network Rack, 19" Open Frame Server Rack with 19.8in Mounting Depth
- Network rack system with 19.8inch mounting depth is ideal for installing switches/patch panels out of the way

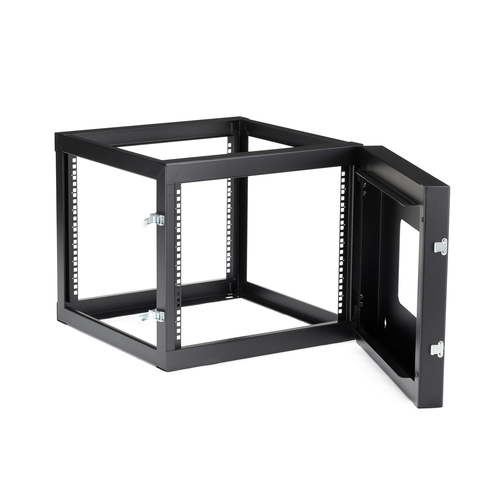

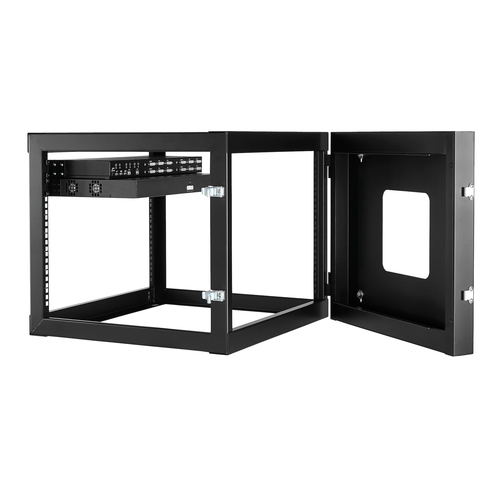

- Open Frame Wall Mount Server Rack features a hinged rack design that allows easy installation/maintenance of your Data / AV / IT equipment
- 8U mount computer rack offers a 4-post design for additional support
- Weight capacity 139lbs (63kg)
- Wallmount server rack for maximum airflow

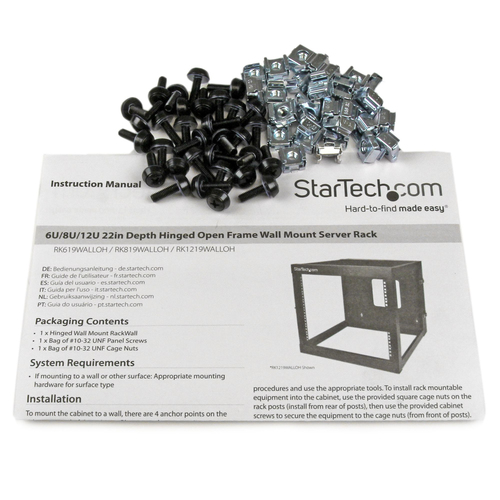

- Includes all screws and cage nuts required to mount your equipment
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenance
The RK819WALLOH 8U Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.
The 8U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (139 lbs) with a maximum mounting depth of 19.8inch. Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
Specifications
Features
- Rack capacity
- 8U
- Type
- Wall mounted rack
- Maximum weight capacity
- 63.4 kg
- Product colour
- Black
- Material
- Steel
- Frame type
- Open
- Product design
- 4-post
- Key lock
- No
- Front door key lock
- No
- Adjustable mounting rails
- No
- Number of fans
- 0 fan(s)
- Mounting hole shape
- Square
- Castor wheels
- No
- Certification
- REACH, CE, UL, TAA

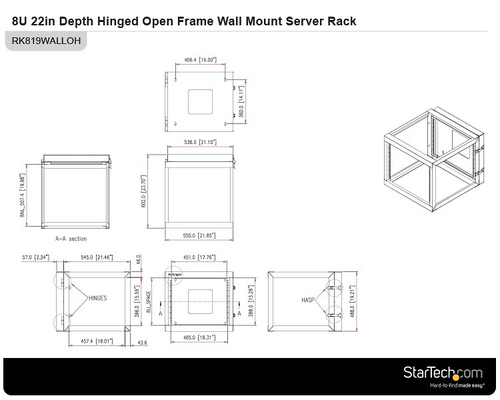

Weight & dimensions
- Width
- 555 mm
- Depth
- 603 mm
- Height
- 488 mm
- Weight
- 15.1 kg
- Mounting depth (max)
- 50.2 cm
Packaging data
- Nuts included
- Yes
- Number of nuts
- 24
- Screws included
- Yes
- Number of screws
- 24
- Manual
- Yes
- Package width
- 670 mm
- Package depth
- 730 mm
- Package height
- 600 mm
- Package weight
- 17.7 kg
Technical details
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 85381000
- Master (outer) case width
- 670 mm
- Master (outer) case length
- 730 mm
- Master (outer) case height
- 600 mm
- Products per master (outer) case
- 1 pc(s)
Other features
- Compliance industry standards
- EIA/ECA-310-E
