4-Post 6U Hinged Wall-Mount Network Rack, 19" Open Frame Server Rack with 19.8in Mounting Depth
- Network rack system with 19.8inch mounting depth is ideal for installing switches / patch panels out of the way
- Open Frame Wall Mount Server Rack features a hinged design that allows easy installation/maintenance of your Data / AV / IT equipment
- 6U mount computer rack offers a 4-post design for additional support
- Weight capacity 109lbs (49kg)
- Wallmount server rack for maximum airflow
- Includes all screws and cage nuts required to mount your equipment
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenance

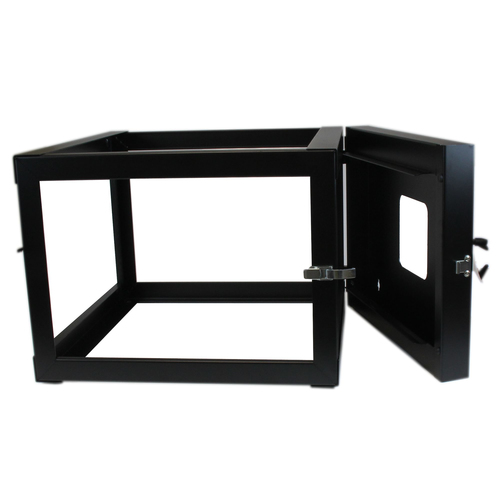

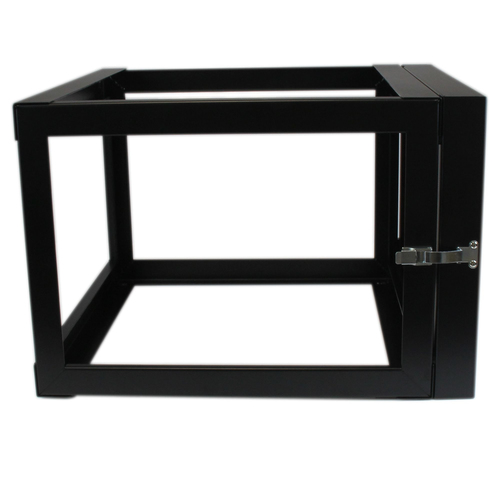

The RK619WALLOH 6U Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.
The 6U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 49kg (110lbs) with a maximum mounting depth of 19.8inch (50.2cm). Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
Specifications
Features
- Rack capacity
- 6U
- Type
- Wall mounted rack
- Maximum weight capacity
- 49.8 kg
- Product colour
- Black
- Material
- Steel
- Frame type
- Open
- Product design
- 4-post
- Key lock
- No
- Front door key lock
- No
- Adjustable mounting rails
- No
- Number of fans
- 0 fan(s)
- Cable management
- No
- Mounting hole shape
- Square
- Castor wheels
- No
Weight & dimensions
- Width
- 556 mm
- Depth
- 602 mm
- Height
- 408 mm
- Weight
- 14 kg
- Mounting depth (max)
- 50.2 cm
Packaging data
- Nuts included
- Yes
- Number of nuts
- 24
- Screws included
- Yes
- Number of screws
- 24
- Manual
- Yes
- Package width
- 665 mm
- Package depth
- 720 mm
- Package height
- 522 mm
- Package weight
- 16.4 kg
Technical details
- Compliance certificates
- CE, RoHS
Logistics data
- Harmonized System (HS) code
- 85381000
- Master (outer) case width
- 665 mm
- Master (outer) case length
- 720 mm
- Master (outer) case height
- 522 mm
- Products per master (outer) case
- 1 pc(s)
Other features
- Compliance industry standards
- EIA/ECA-310-E
