2-Post 6U Wall Mount Network Cabinet with Acrylic Door, 19" Wall-Mounted Server Rack for Data / AV
- Wall-Mount Server Rack is ideal for installing network switches and other rackmount equipment in your home / office
- Wall mount data rack features an enclosed and lockable design with reversible / removable front door and removable side panels
- 6U wall-mounted network cabinet is constructed of heavy-duty steel for durability, supporting up to 110lb (50kg)

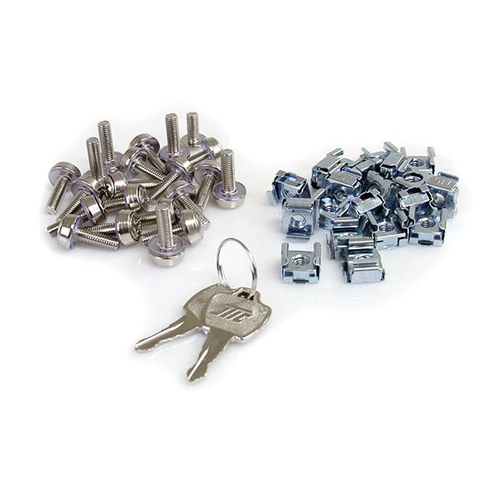

- Ships fully assembled with 20x M5 screws and cage nuts to mount your IT equipment
- EIA/ECA-310-E Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Securely mount network and telecom equipment to the wall with this lockable 6U wall mount cabinet
The RK619WALL Wall Mounted 6U Server Rack/Cabinet can be fastened to most types of walls and features a sturdy, compact design that can be positioned almost anywhere without wasting valuable floor space.

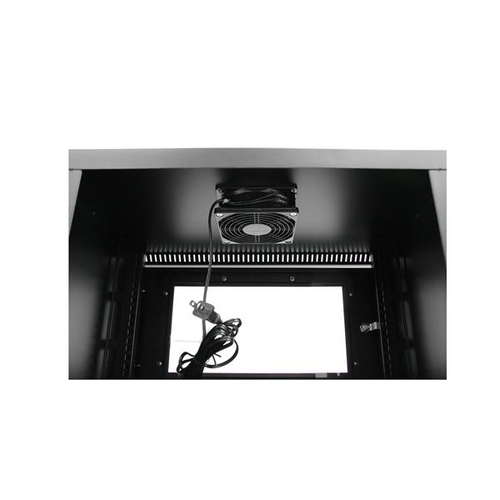

This equipment rack offers 6U of storage space and is designed to accommodate 19-inch (wide) servers, networking and telecom equipment. The rack features a 12cm fan, with ventilation positioned above and below the front panel glass door, helping to keep dust out of the rack while ensuring a cool operating environment for your valuable equipment.

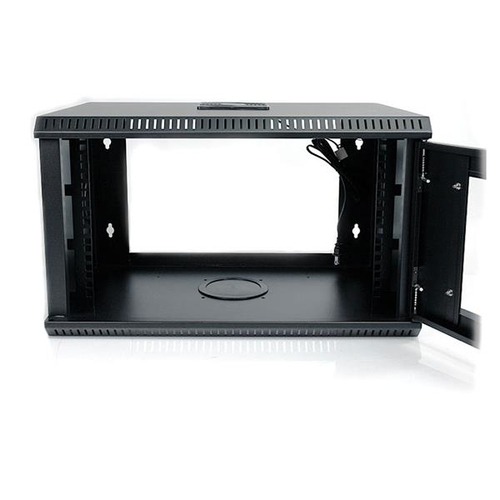

To ensure optimum security and prevent tampering with the enclosed equipment, the cabinet/rack features a lockable acrylic front door that can be removed entirely or installed to open to the left or right as needed.
Specifications
Features
- Rack capacity
- 6U
- Type
- Wall mounted rack
- Maximum weight capacity
- 50 kg
- Product colour
- Black
- Material
- Steel
- Frame type
- Closed
- Product design
- 2-post
- Front door construction
- Steel
- Removable front door
- Yes
- Key lock
- Yes
- Front door key lock
- Yes
- Side panel key lock
- No
- Adjustable mounting rails
- No
- Cooling type
- Active
- Number of fans
- 1 fan(s)
- Fan diameter
- 12 cm
- Cable management
- No
- Mounting hole shape
- Square
- Certification
- RoHS, CE, UL, TAA
Power
- AC input voltage
- 115 V
Weight & dimensions
- Width
- 561 mm
- Depth
- 398 mm
- Height
- 332 mm
- Inner width
- 55 cm
- Inner depth
- 37.7 cm
- Inner height
- 30.5 cm
- Weight
- 10.5 kg
- Mounting depth (max)
- 28.6 cm
Packaging data
- Nuts included
- Yes
- Number of nuts
- 20
- Screws included
- Yes
- Number of screws
- 20
- Mounting kit
- Yes
- Package width
- 500 mm
- Package depth
- 670 mm
- Package height
- 440 mm
- Package weight
- 13.8 kg
Logistics data
- Harmonized System (HS) code
- 85381000
- Master (outer) case width
- 500 mm
- Master (outer) case length
- 670 mm
- Master (outer) case height
- 440 mm
- Products per master (outer) case
- 1 pc(s)
Other features
- Compliance industry standards
- EIA-310-D
