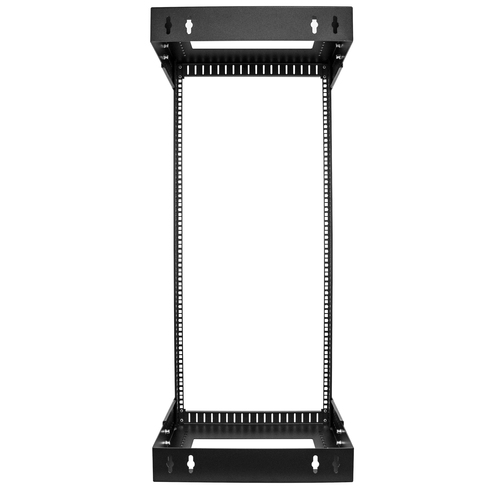

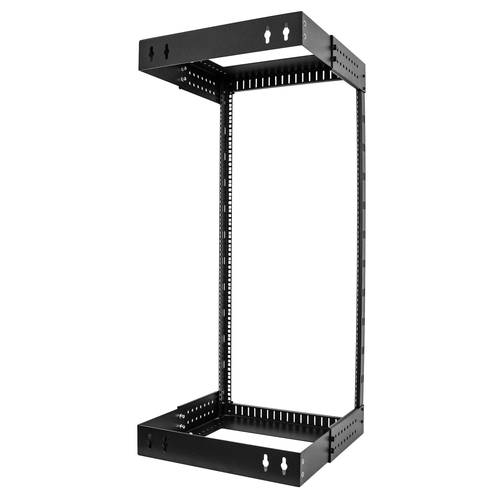

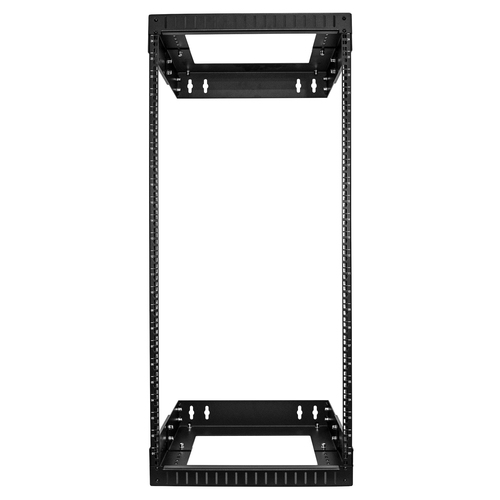

2-Post 24U Heavy-Duty Wall Mount Network Rack, 19" Open Frame Server Rack with Adjustable Depth
- 2-Post 24U open frame network rack with 12-20in (30.5-50.8cm) adjustable depth for AV, IT computer, switches, patch panels, and PDUs
- Durable 19" data server rack features vertical rails made of 2.0mm SPCC cold-rolled steel
- Unobstructed airflow to help keep your equipment cool
- Efficient flat pack shipping and hassle-free installation
- Easy install with access to all sides
- M6 square cage nuts, M6 screws and plastic washers included
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Mount your network and telecommunications equipment with the convenience of adjustable depth
The RACK-24U-20-WALL-OA 24U Open Frame Wall Mount Equipment Rack with Adjustable Depth is a high-quality, sturdy relay rack solution that is easy to assemble and install into any environment.
Sturdy Construction & Easy Installation
The open rack features an adjustable depth ranging from 12-20 inches to accommodate larger data, network, and telecommunications devices. With a maximum depth of 20 inches, this rack allows for mounting of shelves and other accessories with enough clearance at the back for cable management. The open-frame design help to keep your equipment cool and easily accessible from different angles. The wall mounting holes are positioned 12 and 16 inches apart (center to center) providing a convenient and effecting anchoring, making it suitable for mounting on virtually any wall surface or construction framework.
Includes Hardware
This 24U rack includes M6 square cage nuts and M6 screws to save you the hassle of sourcing separate mounting hardware for your equipment. This rack can be mounted to the wall in a server room, data closet, or office expanding your valuable floor space.
The RACK-24U-20-WALL-OA is backed for 5-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
Features
- Rack capacity
- 24U
- Type
- Wall mounted rack
- Maximum weight capacity
- 90 kg
- Product colour
- Black
- Material
- Steel
- Frame type
- Open
- Product design
- 2-post
- Mounting hole shape
- Square
Weight & dimensions
- Width
- 504 mm
- Depth
- 508 mm
- Height
- 1100 mm
- Weight
- 16 kg
- Mounting depth (max)
- 50.8 cm
Packaging data
- Screws included
- Yes
- Number of screws
- 4
- Number of bolts
- 2
- Number of washers included
- 4
- Mounting kit
- Yes
- Quick installation guide
- Yes
- Package width
- 420 mm
- Package depth
- 1215 mm
- Package height
- 160 mm
- Package weight
- 21 kg
Logistics data
- Harmonized System (HS) code
- 85381000
- Master (outer) case width
- 420 mm
- Master (outer) case length
- 1215 mm
- Master (outer) case height
- 160 mm
- Products per master (outer) case
- 1 pc(s)
Other features
- Compliance industry standards
- EIA/ECA-310-E
