2-Port Dual-Monitor DisplayPort KVM Switch, RS232 Serial Control, 4K 60Hz, 2x USB 5Gbps Hub Ports
- Control this KVM using serial commands to change settings or switch desktops
- Switch an RS232 device between PCs with DB9 Ports
- Near instantaneous switching of keyboard/video/mouse enabled by DisplayPort and USB Emulation
- Independent switching of PC/RS232/Audio
- Listen to audio from one desktop while controlling the other
- Switch without interrupting serial communication
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

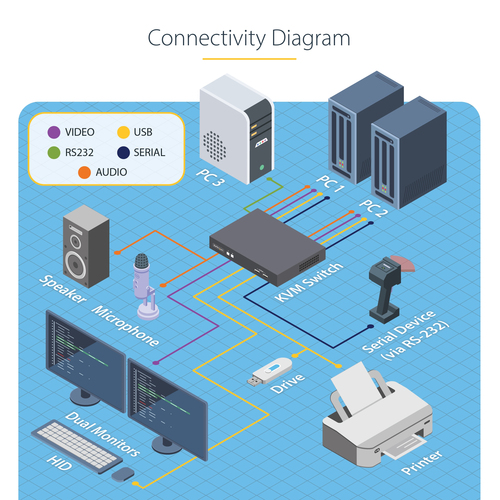

Share a mouse, keyboard, RS-232 device, and dual-4K 60Hz DisplayPort monitors between two DisplayPort-enabled desktops
This Dual-Monitor KVM Switch enables users to switch between two desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, two USB 5Gbps devices, and two USB 2.0 HID devices.
RS232 Serial Control
This 2-Port KVM Switch provides control using serial commands, enabling users to switch between host ports, modify hotkeys, and perform various other functions. The RS232 host ports offer additional flexibility by allowing the switching of an RS232 device between two desktop computers.
Near Instantaneous Switching
DisplayPort EDID and USB Emulation technology enable near-instant switching of a keyboard, video, and mouse. DisplayPort EDID emulation remembers application window placement, while USB Emulation ensures compatibility with combination keyboards/mice, as well as keyboards featuring additional function keys.
Dual-4K 60Hz DisplayPort Monitors
This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it an ideal choice for working with high-resolution graphics or video. It also features MST pass-through, enabling the connection of additional monitors through daisy chaining - when using an MST Hub or the Video Output Ports located on the monitor.
Customizable Switching
This Universal KVM Switch offers multiple switching options, including hotkey, on-screen display, or push-button switching. Hotkeys provide independent switching of USB/Video, Audio, and RS232, allowing for audio playback from one computer while controlling the other or switching without interrupting serial communication. An audible buzzer confirms hotkey input, and LEDs provide a visual indication of the selected host.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
Specifications
Ports & interfaces
- Number of computers controlled
- 2
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- DisplayPorts quantity
- 4
- DisplayPort version
- 1.2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 2
- Console ports
- 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
- Console USB ports quantity
- 4
- Console DisplayPorts ports quantity
- 2
- Serial port type
- DE-9 (DB-9)
- Serial ports quantity
- 3
- Audio connections
- Yes
- Headphone outputs
- 3
- Number of microphone inputs
- 3
Performance
- HD type
- 4K Ultra HD
- Maximum resolution
- 3840 x 2160 pixels
- Data transfer rate (max)
- 5 Gbit/s
- Scan interval
- 10,20,30,40,50,60 s
- Plug and Play
- Yes
- Daisy chain
- No
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Steel, Zinc
- LED indicators
- Yes
- Push button
- Yes
- Hot keys
- Yes
- Mean time between failures (MTBF)
- 80907 h
Display
- Built-in display
- No
- On Screen Display (OSD)
- Yes
Power
- Power source
- DC
- Input voltage
- 100 - 240 V
- Input current
- 1 A
- Output voltage
- 12 V
- Output current
- 3 A
- External power adapter
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 90%
Weight & dimensions
- Width
- 130 mm
- Depth
- 255 mm
- Height
- 40 mm
- Weight
- 1.1 kg
Packaging data
- Package width
- 301 mm
- Package depth
- 286 mm
- Package height
- 81 mm
- Package weight
- 2.1 kg

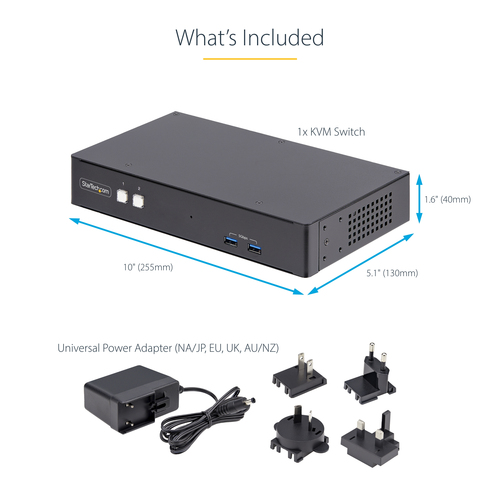

Packaging content
- Cables included
- DisplayPort, USB Type-A to USB Type-B
- Quick installation guide
- Yes
- AC adapter included
- Yes
Other features
- IP control
- No
Logistics data
- Master (outer) case width
- 606 mm
- Master (outer) case length
- 429 mm
- Master (outer) case height
- 327 mm
- Products per master (outer) case
- 10 pc(s)
