StarTech.com KITBXDOCKPNA Drag to turn · 11 views
StarTech.comAV Conferencing Bridges

Conference Room Docking Station with Power and Charging; Table Connectivity Box, Universal USB-C

Part # KITBXDOCKPNAUPC 065030891158Warranty: 2 Years14.4 lb

  • In-desk/table universal conference room docking station w/ auto host switching for USB-C or USB-A laptops
  • USB charging and AC power
  • USB-C (DP Alt Mode and 60W Power Delivery) or USB-A docking or HDMI pass through video | 4K 30Hz
  • 4-Port USB 3.0 hub | GbE | 3.5mm Audio in/out
  • 2x 100-125V AC outlets (10A total) and 2x USB-A BC 1.2 (up to 2.4A/port)
  • Connectivity box for USB-A/USB-C/Thunderbolt 3 laptops | Windows/mac/iPadOS/Chrome/etc
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

4K HDMI® | USB-C™ and USB-A Host Compatibility | USB-C PD | 2x AC and 2x USB-A

This conference table connectivity box bundle provides power and charging where it's needed and adds docking station capabilities to your boardroom, classroom or huddle space.

The StarTech.com bundle contains three products to equip you with a convenient out-of-the-box connectivity solution:

01

• Power outlet module (MOD4POWERNA)

02

• Laptop Docking Module (MOD4DOCKACPD)

• Dual-module conference table connectivity box (BOX4MODULE)

03

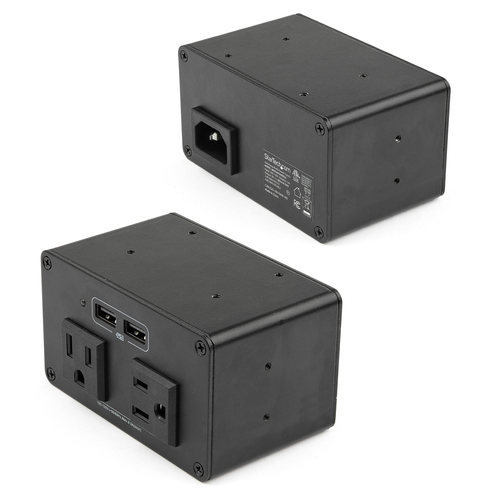

Power Your Devices and Stay Charged During Meetings

This tabletop power hub lets you power laptops using the AC power outlets and charge phones and tablets using the 2.4 amp USB ports, directly from your conference table.

04

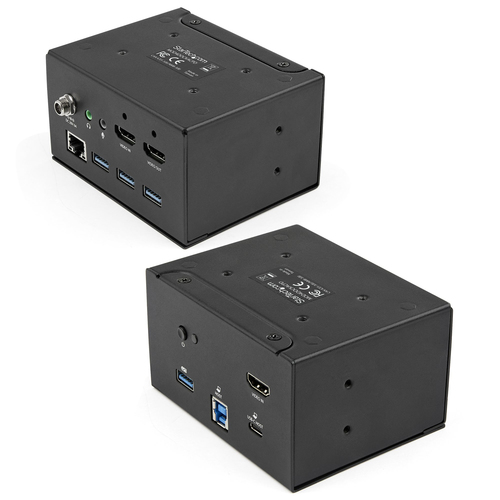

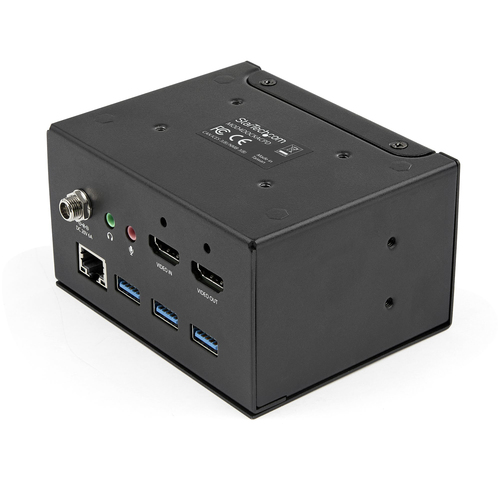

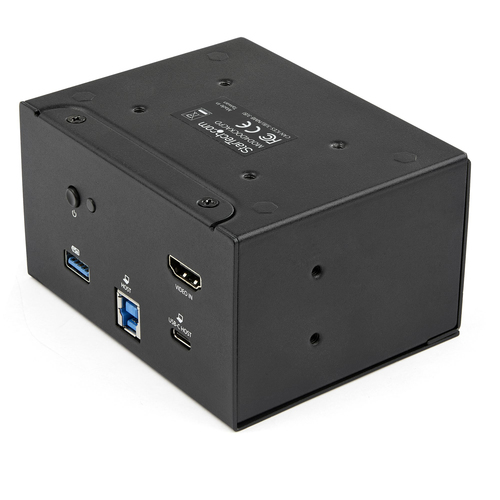

Dock Your Laptop

During meetings you may need to set up conference calls using applications such as Microsoft Teams, Zoom or Google Hangouts. Unlike other boardroom conferencing solutions that are limited to only one or two collaboration applications, this module lets you use your own laptop, so you are not restricted to a specific platform.

The boardroom USB-C docking station lets you collaborate with others in the room and around the globe. It lets you:

• Access your room's display; peripherals, webcam, speakers, mic and network

05

• Charge mobile devices using the USB-A charge port

06

• Power a supported USB-C laptop with USB-C power delivery

For users that are unable to dock or for quick access to the display, the front-facing HDMI port lets you connect a laptop directly to the display.

07

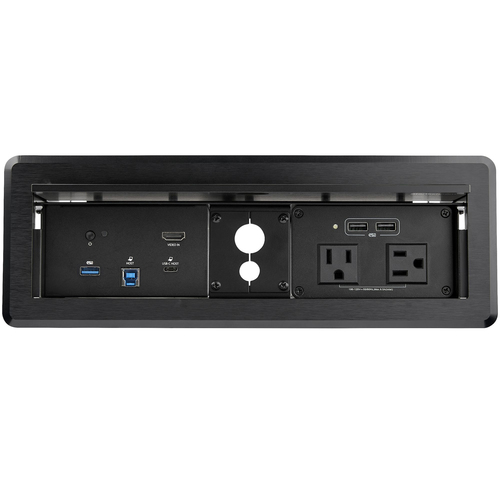

Simple Installation

The conference table insert is easy to install and features a lid that closes to conceal connection points. Plus, the cable organizer keeps cables accessible. The connectivity box can meet the needs of small, medium or large size rooms.

KITBXDOCKPNA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Video

Maximum resolution
3840 x 2160 pixels

Network

Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Data transfer rate (max)
5 Gbit/s

Features

Product colour
Black
LED indicators
Power
Chipset
DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153
Operating systems supported
Windows 7, 8, 8.1, 10, 11 macOS 10.9 - 10.12, 10.14, 10.15, 11.0, 12.0, 13.0 Ventura Chrome OS v55+
Certification
RoHS, TAA, CE, FCC

Ports & interfaces

HDMI ports quantity
3
HDMI input ports quantity
2
HDMI output ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
USB 2.0 Type-A ports quantity
2
Audio input
1 x 3.5 mm
Audio output
1 x 3.5 mm
Ethernet LAN (RJ-45) ports
1

Power

AC adapter input voltage
100 - 240 V
AC adapter output voltage
20 V
AC adapter output current
6 A
Power plug type
Type N

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 65 °C
Operating relative humidity (H-H)
20 - 80%

Weight & dimensions

Width
318 mm
Depth
165 mm
Height
110 mm
Weight
2.7 kg
Package width
391 mm
Package depth
358 mm
Package height
340 mm
Package weight
6.5 kg

Packaging content

Cables included
AC, USB
AC adapter included
Yes
Screws included
Yes
Number of screws
36
Quick start guide
Yes

Logistics data

Master (outer) case width
355 mm
Master (outer) case length
390 mm
Master (outer) case height
280 mm
Products per master (outer) case
1 pc(s)
