4K HDMI Extender over CAT6/CAT5 Ethernet Cable, 4K 30Hz or 1080p 60Hz Video Extender, HDMI over
- This HDMI Extender over CAT6/5e sends 4K 30Hz up to 130ft (40m) or 1080p up to 230ft (70m) using a single cable
- Transmitter power adapter supplies power to both units (PoC)
- Metal-housing w/ built-on mounting brackets
- Includes IR Extension kit
- Transmitter's local HDMI output can be used to connect a local display/cascaded to another extender
- Ideal for digital signage in malls/stadiums/hospitals
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
4K 30Hz 130ft | 1080p 230ft | IR Extension | Power over Cable
This HDMI® Extender over CAT6 lets you transmit a 4K 30Hz HDMI® audio video signal up to 130ft (40m), or 230ft (70m) for 1080p resolutions. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.
4K Picture Quality
This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable. The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.
Simplify your setup
With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit. IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.
Easy Installation
The 4K HDMI Extender over Ethernet cable has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or for use to a local display. Plug-and-play installation with no additional software or drivers required. The metal housing and built-on mounting brackets allow for professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.
EXTEND-HDMI-4K40C6P1 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specifications
Features
- Type
- AV transmitter & receiver
- Maximum resolution
- 3840 x 2160 pixels
- Cable types supported
- Cat5e, Cat6
- Maximum transfer distance
- 70 m
- Maximum refresh rate
- 60 Hz
- Audio output channels
- 7.1 channels
- LED indicators
- Link, Power
- Bandwidth
- 10.2 Gbit/s
- HDCP
- Yes
- Material
- Metal
- Rack mounting
- No
- Daisy chain
- Yes
- HDCP version
- 1.4
- Product colour
- Black
Ports & interfaces
- Connectivity technology
- Wired
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
- HDMI in
- 1
- Number of HDMI outputs
- 2
- Remote (IR) input
- 1
- Remote (IR) output
- 1
- DC-in jack
- Yes
Power
- AC input voltage
- 100 - 240 V
- Operating voltage
- 12 V
- Input current
- 0.3 A
- Output current
- 1 A
- Power consumption (typical)
- 0.1 W
- External power adapter
- Yes
- Power plug type
- Type M
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 20 - 90%
Weight & dimensions
- Width
- 69 mm
- Depth
- 57 mm
- Height
- 17 mm
- Weight
- 130 g
Packaging data
- Package width
- 116 mm
- Package depth
- 205 mm
- Package height
- 77 mm
- Package weight
- 500 g
Packaging content
- AC adapter included
- Yes
- IR blaster included
- Yes
- IR receiver included
- Yes
Technical details
- Compliance certificates
- CE, RoHS
Logistics data
- Harmonized System (HS) code
- 85176200
- Master (outer) case width
- 437 mm
- Master (outer) case length
- 410 mm
- Master (outer) case height
- 378 mm
- Products per master (outer) case
- 30 pc(s)
More in Accessories
StarTech.comThe 4K HDMI Extender sends 4K 60Hz (4:4:4) up to 230ft (70m) with zero4K70IC-EXTEND-HDMI
BenQNFC cards for RP Series and RM04 series with a vertical punch to accom5A.FA139.NA2
BenQSupports RP/RM - 55 to 98 displays5A.FAE10.001

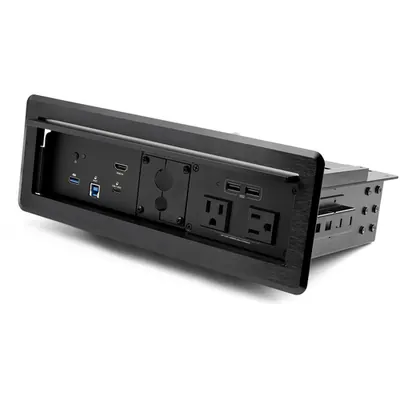

StarTech.comIn-desk/table universal conference room docking station w/ auto host sKITBXDOCKPNA

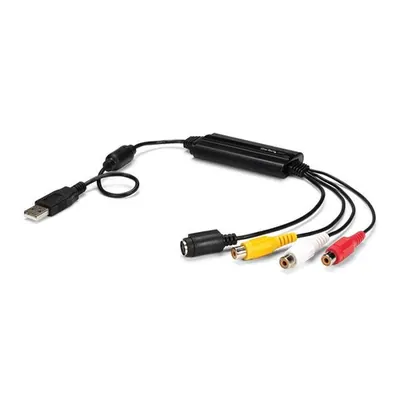

StarTech.comThis USB video capture adapter lets you convert composite / S Video inSVID2USB232
